Center Courtesy Lamp Replacement

WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

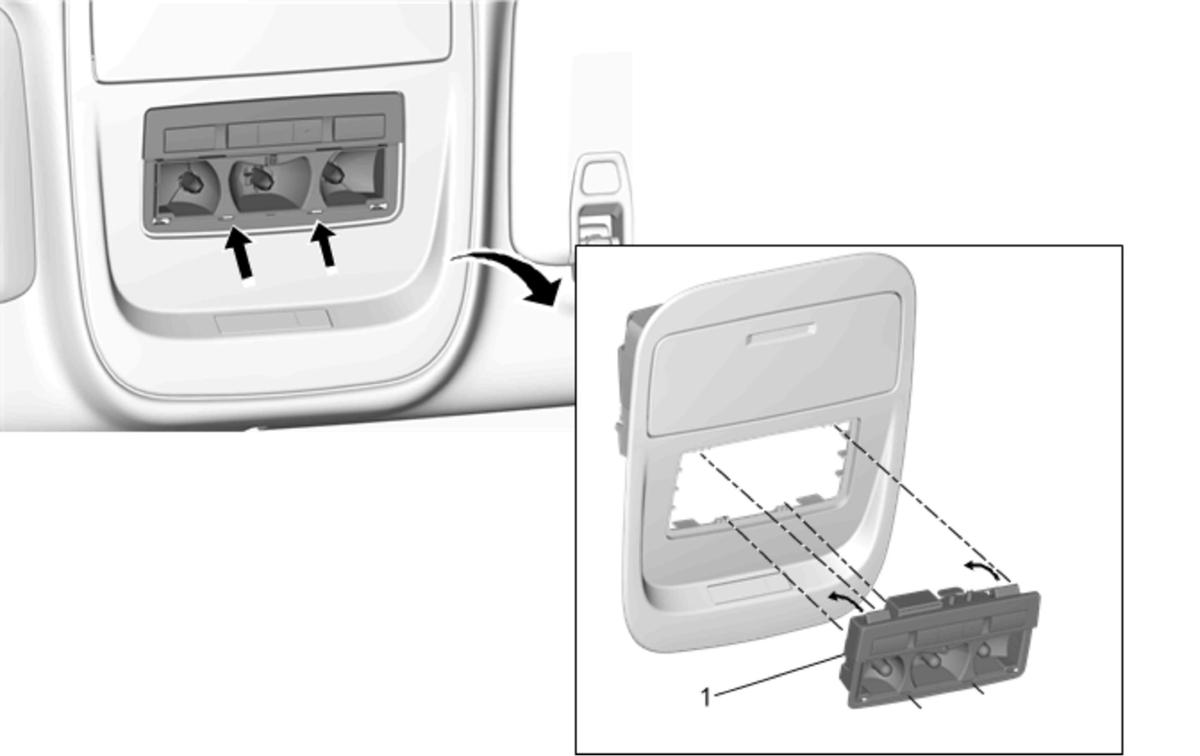

Fig 1: Center Courtesy Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the center reading and courtesy lamp lens. Refer to Center Reading and Courtesy Lamp Lens Replacement (Front) Center Reading and Courtesy Lamp Lens Replacement (Rear) Center Reading and Courtesy Lamp Lens Replacement (Extended Cab) .
1	Center Courtesy Lamp Procedures Remove the reflector from the lamp assembly in order to access the lamp retainers. Using a suitable flat bladed tool, release the metal retaining clips through the two access holes and pull downward to release the retainer clips securing the assembly to the roof console. Disconnect the electrical connections.

Callout

Component Name

Preliminary Procedure
Remove the center reading and courtesy lamp lens. Refer to Center Reading and Courtesy Lamp Lens Replacement (Front) Center Reading and Courtesy Lamp Lens Replacement (Rear) Center Reading and Courtesy Lamp Lens Replacement (Extended Cab) .

Center Courtesy Lamp

Procedures

Remove the reflector from the lamp assembly in order to access the lamp retainers.
Using a suitable flat bladed tool, release the metal retaining clips through the two access holes and pull downward to release the retainer clips securing the assembly to the roof console.
Disconnect the electrical connections.
