Front Fog Lamp Bulb Replacement

WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

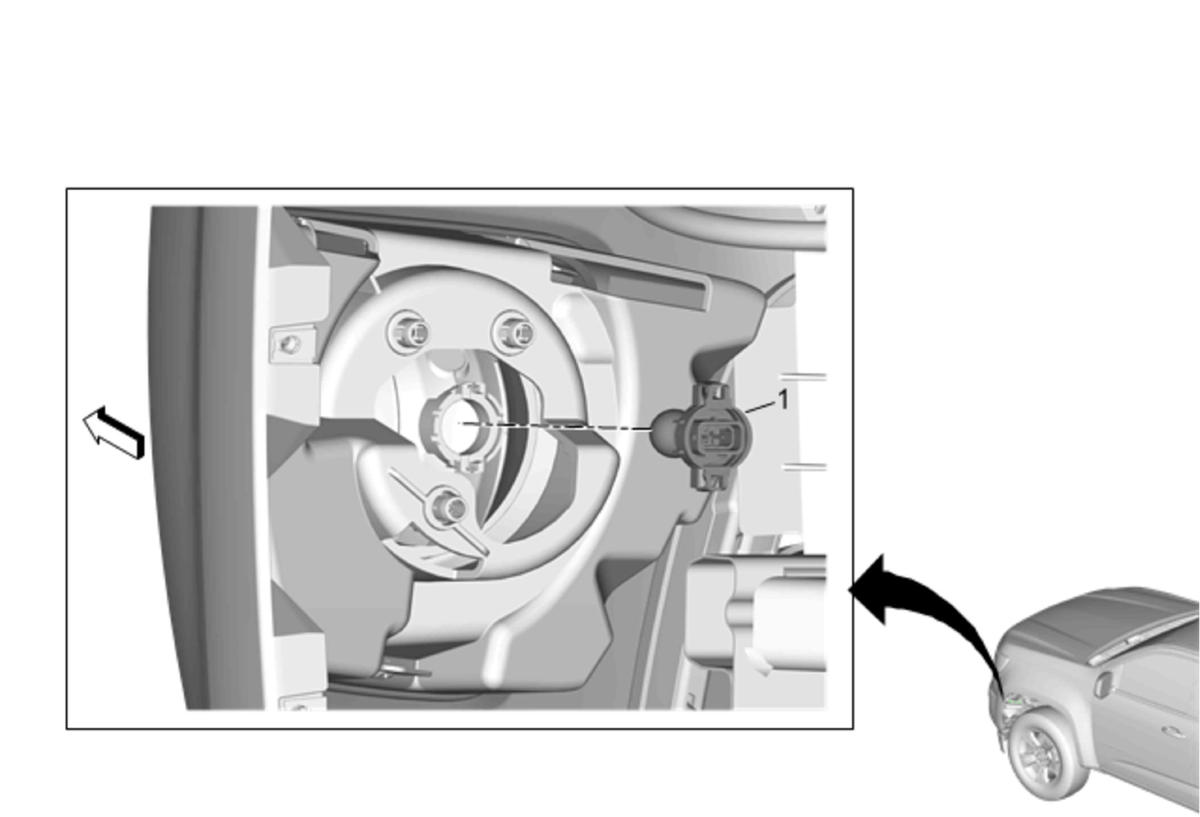

Fig 1: Front Fog Lamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse liner on the side the front fog lamp bulb will be serviced. Refer to Front Wheelhouse Liner Replacement (without ZR2)Front Wheelhouse Liner Replacement (with ZR2) .
1	Front Fog Lamp Bulb Procedure Disconnect the electrical connector. Release the 2 locking tabs and pull the front fog lamp bulb straight from the front fog lamp.

Callout

Component Name

Preliminary Procedure
Remove the front wheelhouse liner on the side the front fog lamp bulb will be serviced. Refer to Front Wheelhouse Liner Replacement (without ZR2)Front Wheelhouse Liner Replacement (with ZR2) .

Front Fog Lamp Bulb

Procedure

Disconnect the electrical connector.
Release the 2 locking tabs and pull the front fog lamp bulb straight from the front fog lamp.
