Front Fog Lamp Replacement

WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

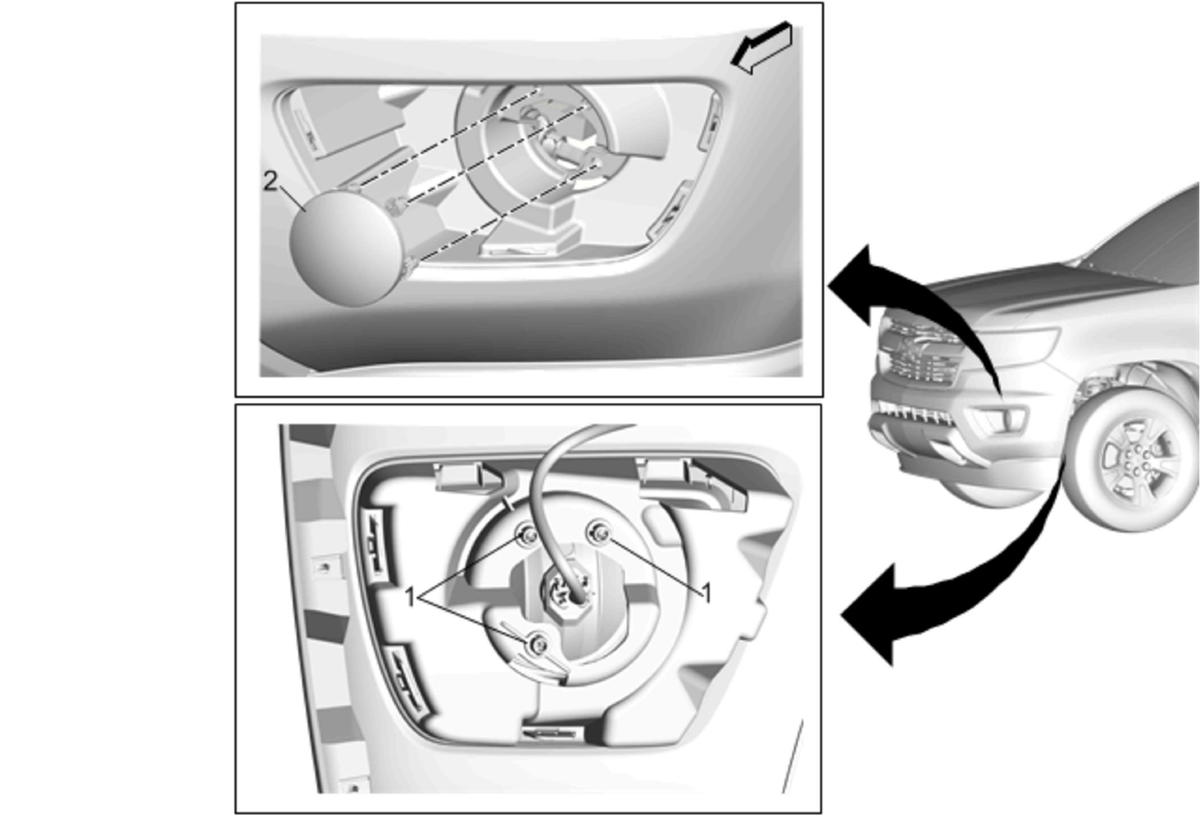

Fig 1: Front Fog Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front fog lamp bezel on the side the front fog lamp will be serviced. Refer to Front Fog Lamp Bezel Replacement . Remove the front wheelhouse liner on the side the front fog lamp bulb will be serviced. Refer to Front Wheelhouse Liner Replacement (without ZR2)Front Wheelhouse Liner Replacement (with ZR2) .
1	Front Fog Lamp Retainer (Qty: 3) Procedure Release the 3 locking tab retainers from the rear side of the fascia, access to these locking tabs is available through the wheelhouse opening.
2	Front Fog Lamp Procedure Pull the front fog lamp straight out from the front fog lamp housing. Aim the front fog lamp after replacement. Refer to Fog Lamp Aiming .

Callout

Component Name

Preliminary Procedure

Remove the front fog lamp bezel on the side the front fog lamp will be serviced. Refer to Front Fog Lamp Bezel Replacement .
Remove the front wheelhouse liner on the side the front fog lamp bulb will be serviced. Refer to Front Wheelhouse Liner Replacement (without ZR2)Front Wheelhouse Liner Replacement (with ZR2) .

Front Fog Lamp Retainer (Qty: 3)
Procedure
Release the 3 locking tab retainers from the rear side of the fascia, access to these locking tabs is available through the wheelhouse opening.

Front Fog Lamp

Procedure

Pull the front fog lamp straight out from the front fog lamp housing.
Aim the front fog lamp after replacement. Refer to Fog Lamp Aiming .
