Headlamp Switch Replacement
WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement . |
|

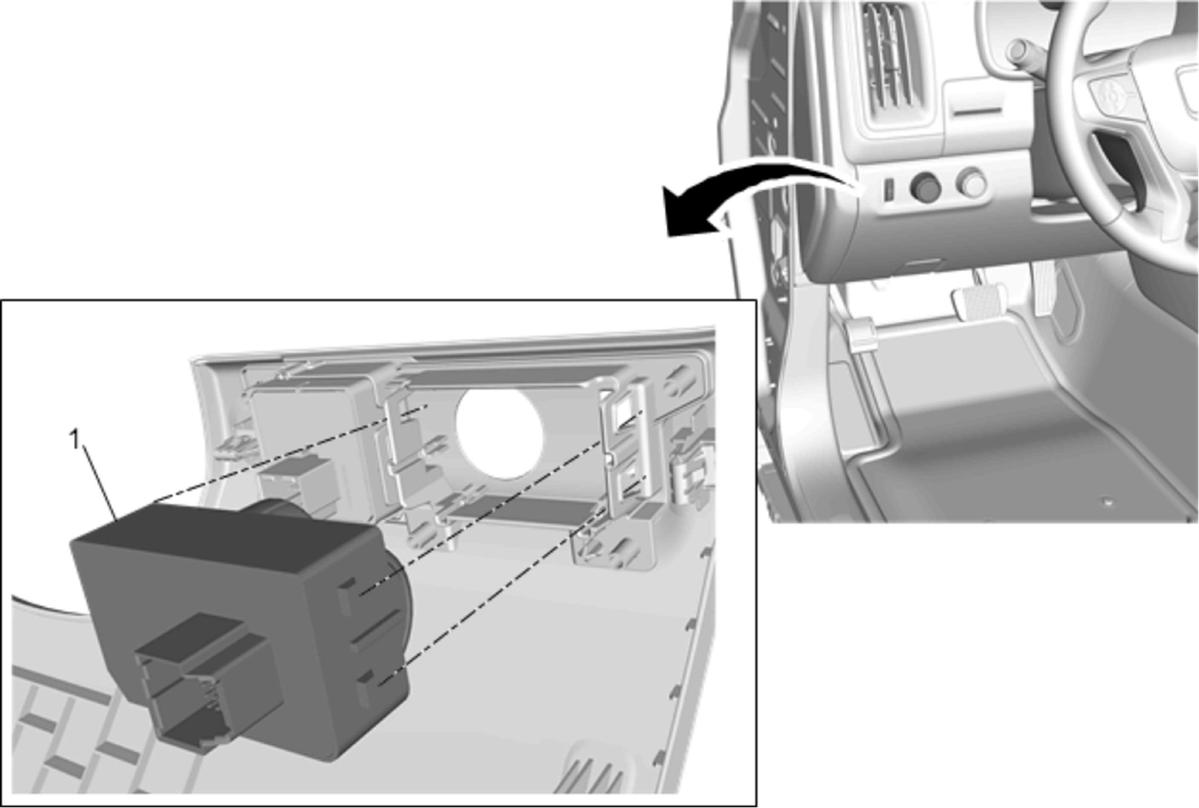

| 1 | Headlamp Switch Procedure Using the appropriate tool gently depress tabs to remove the switch assembly from the bezel. |
