Mobile Telephone Microphone Replacement

WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

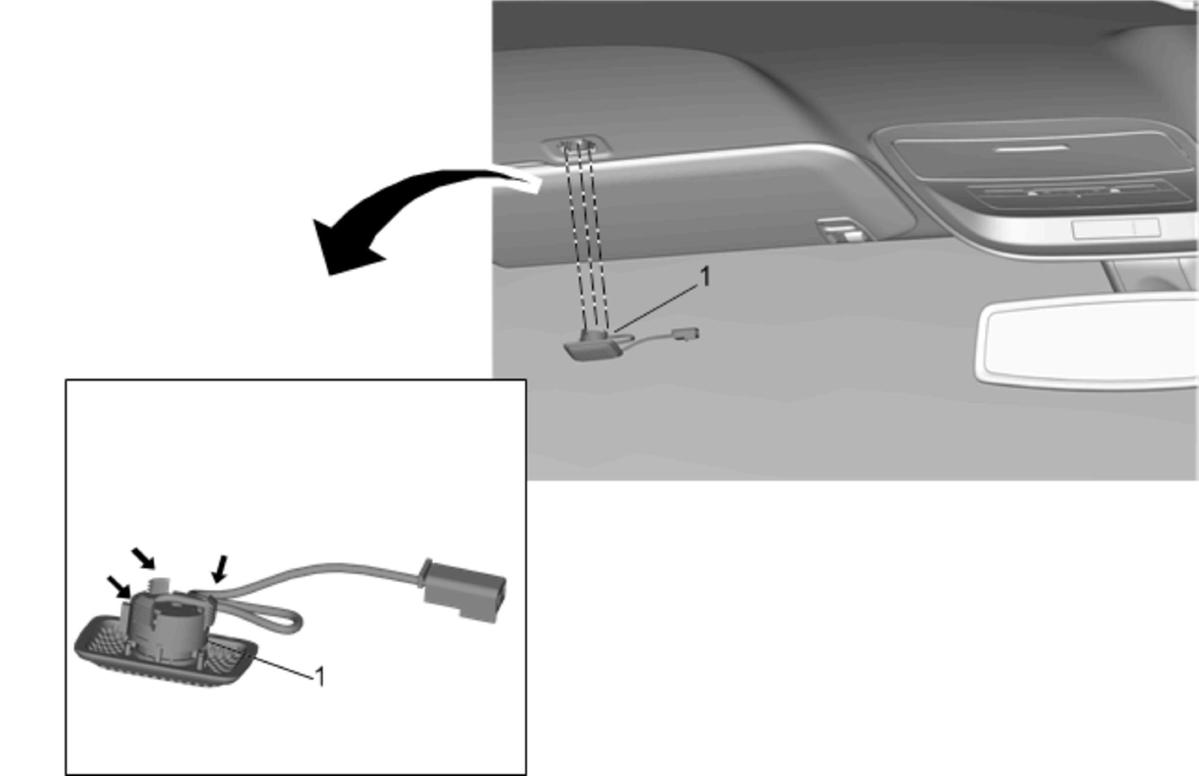

Fig 1: Mobile Telephone Microphone

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the front of the headlining trim panel to access the microphone. Refer to Headlining Trim Panel Replacement (Crew Cab)Headlining Trim Panel Replacement (Extended Cab) .
1	Mobile Telephone Microphone Procedure Disconnect the electrical connector. Depress tabs on microphone to release from microphone trim plate. Transfer the microphone grille, if necessary.

Callout

Component Name

Preliminary Procedure
Lower the front of the headlining trim panel to access the microphone. Refer to Headlining Trim Panel Replacement (Crew Cab)Headlining Trim Panel Replacement (Extended Cab) .

Mobile Telephone Microphone

Procedure

Disconnect the electrical connector.
Depress tabs on microphone to release from microphone trim plate.
Transfer the microphone grille, if necessary.
