Cruise Control Switch Replacement

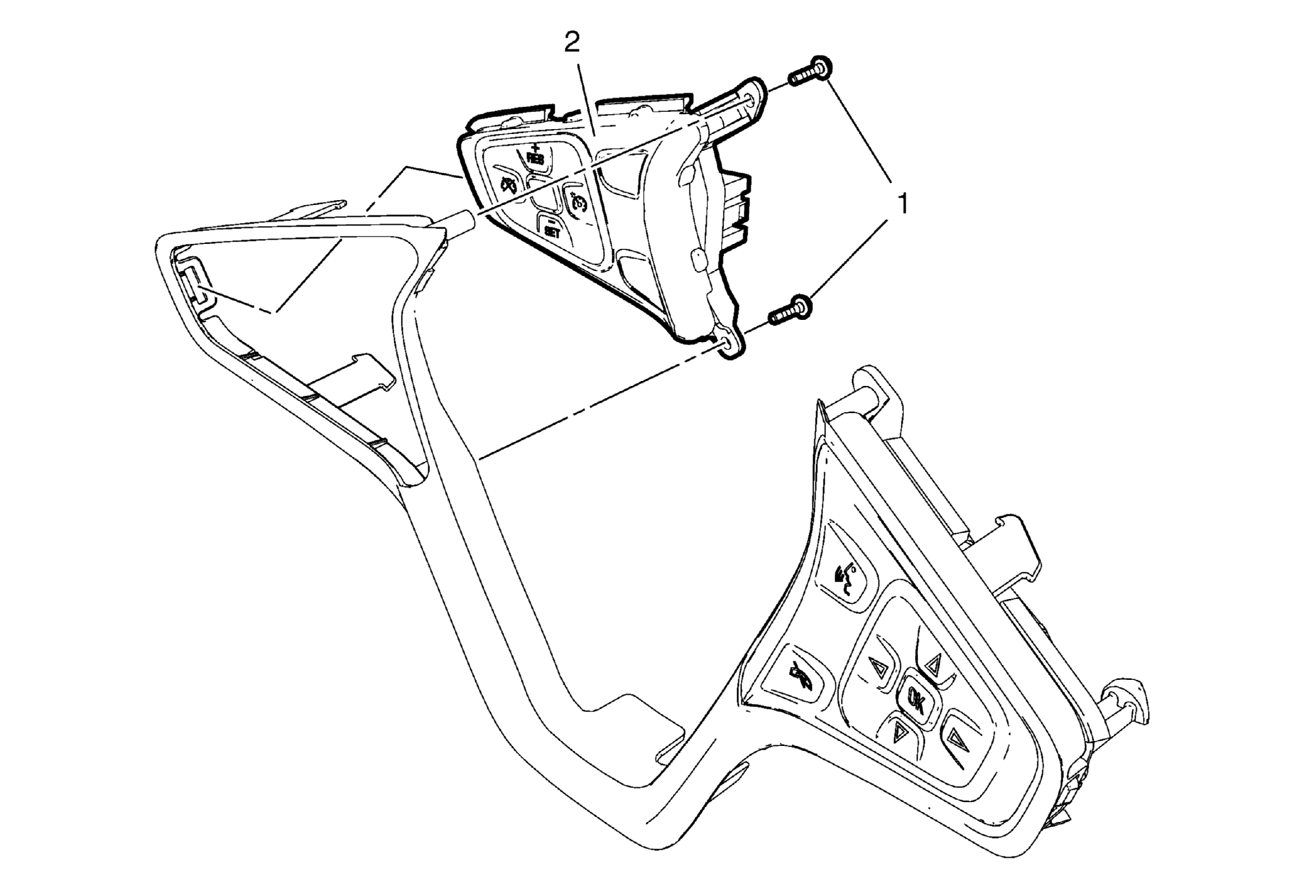

Fig 1: Cruise Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Steering Wheel Spoke Lower Cover Replacement
1	Steering Wheel Lower Cover Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten: 0.8 N.m (7.1 lb in)
2	Cruise Control Switch Procedure Disconnect the electrical connector.
