Installation Procedure

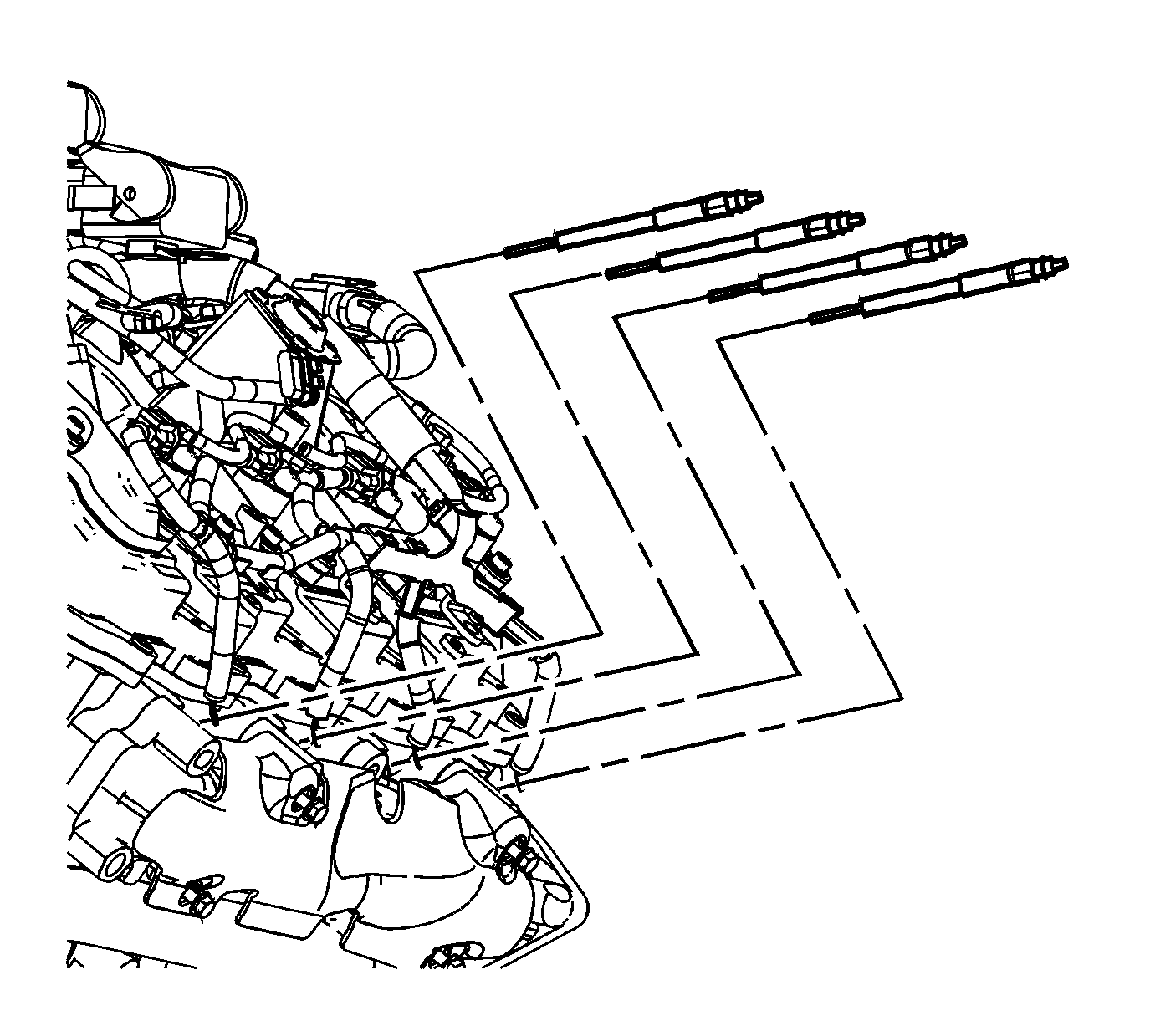

    Fig 1: View Of Left Glow Plugs
    GM1335554Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the glow plug(s) and tighten to 18 N.m (13 lb ft)
  2. Install the harness to the glow plug(s).
  3. Install the glow plug harness nut(s) and tighten to 1.7 N.m (15 lb in).
  4. Install the right front wheel and tire. Refer to Tire and Wheel Removal and Installation (Without Dual Rear Wheels)Tire and Wheel Removal and Installation (With Dual Rear Wheels) .
  5. Install the wheelhouse splash shield. Refer to Wheelhouse Splash Shield Replacement .
  6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  7. Install the engine cover. Refer to Engine Cover Replacement .
