Repair and Diagnosis
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Object Detection System
>>
Schematic Wiring Diagrams
>>
Object Detection Wiring Schematics
>>
Rearview Camera (UVC)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Rearview Camera (UVC)

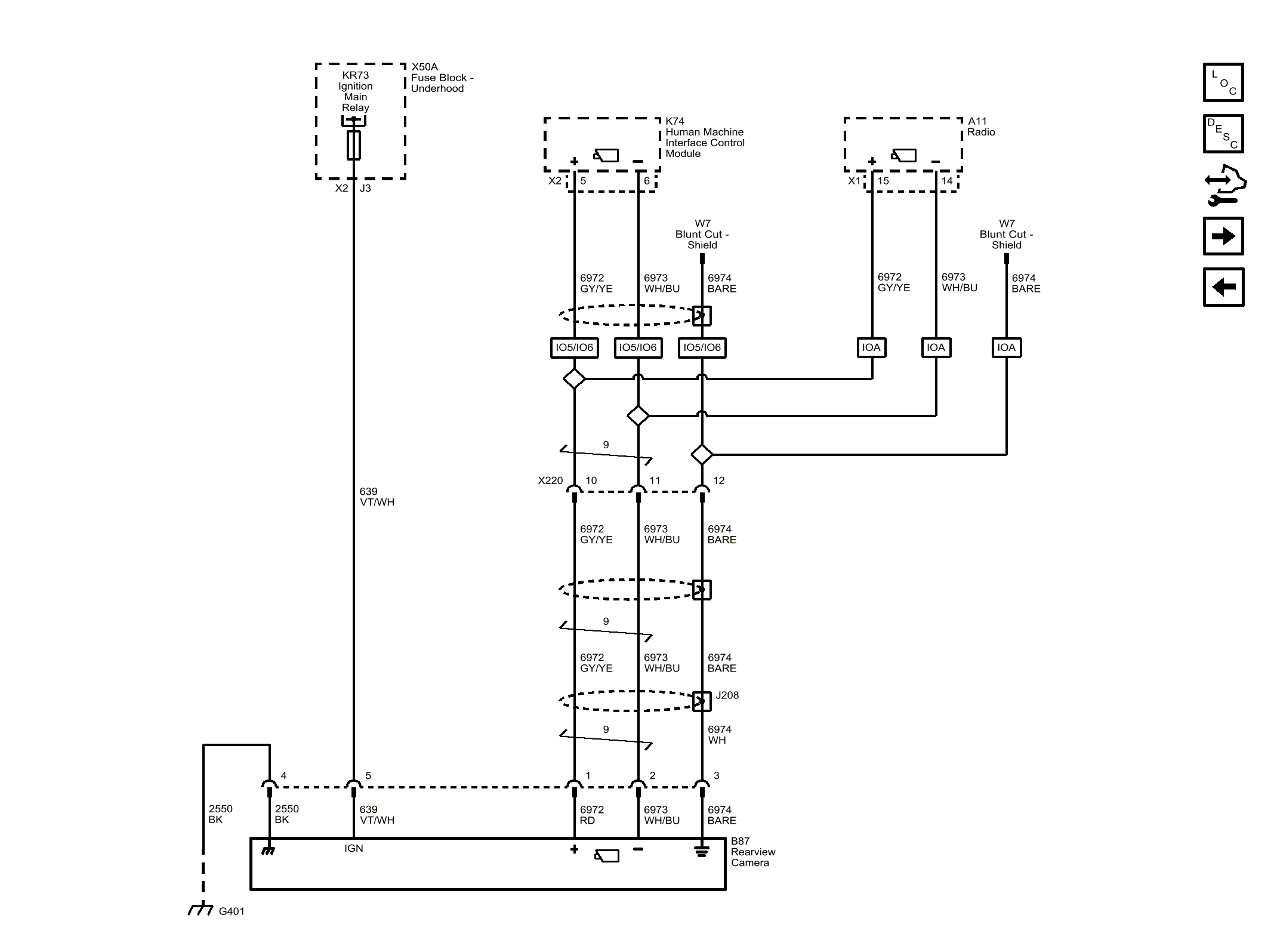

Fig 1: Rearview Camera (UVC)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
