Installation Procedure
Courtesy of GENERAL MOTORS COMPANY

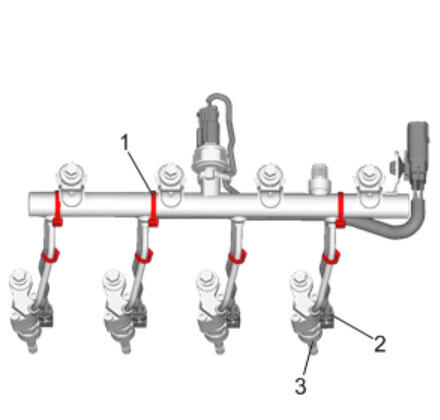

- Connect Electrical Connector (2) at Fuel Injector (3)
- Install a NEW cable tie (1) to the position where it was removed
Courtesy of GENERAL MOTORS COMPANY

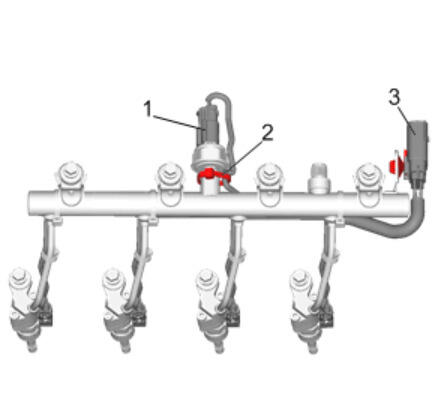

- Connect the fuel injection fuel rail fuel pressure sensor wiring harness plug (1).
- Clip the fuel injector wiring harness (3) to the fuel rail.
- Install a NEW cable tie (2) to the position where it was removed.
- Install Fuel Injection Fuel Rail Assembly Replacement
