Installation Procedure

    Fig 1: Fuel Feed Front Pipe
    GM3824663Courtesy of GENERAL MOTORS COMPANY
  1. Install Engine Control Module and Engine Wiring Harness Bracket (3)
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install Engine Control Module and Engine Wiring Harness Bracket Bolt (2) (Qty: 2) and tighten to 9 N.m (80 lb in)

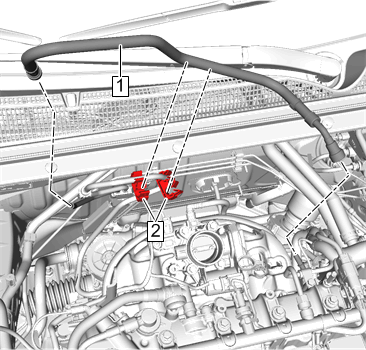

    3. Fig 2: Fuel Feed Evaporative Emission Separator Pipe Clip
    GM4279673Courtesy of GENERAL MOTORS COMPANY
  3. Install Fuel Feed Pipe (1) at Fuel Feed Evaporative Emission Separator Pipe Clip (Qty: 2)
  4. Connect Fuel Feed Pipe (1) - Metal Collar Quick Connect Fitting Service
  5. Install Intake Manifold Cover Replacement
  6. Cycle ignition to pressurize fuel system and check for fuel leaks.
