Ignition Coil Replacement

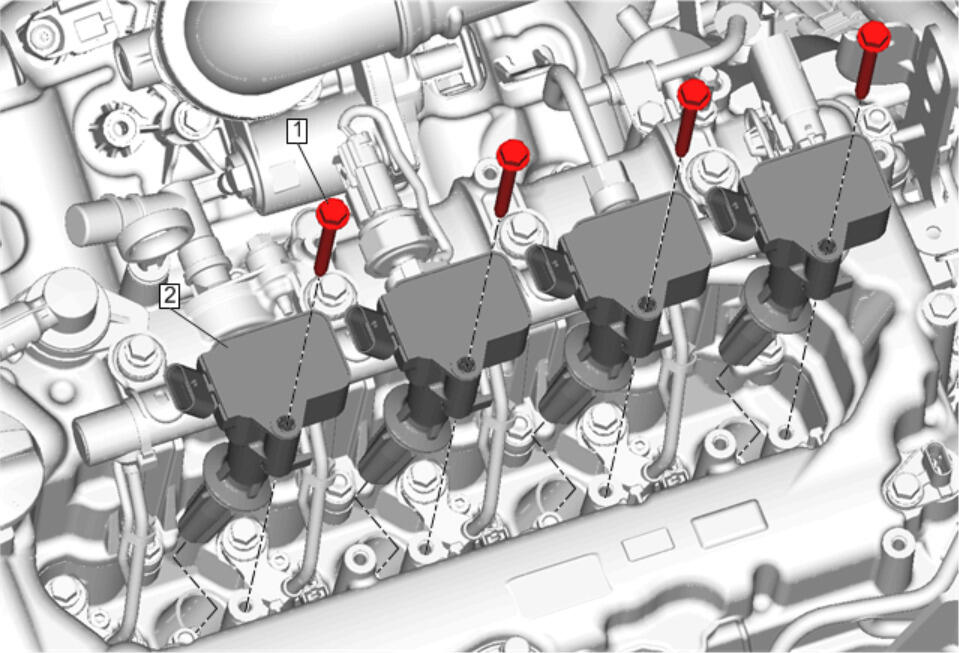

Fig 1: Ignition Coil
GM3977345Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Intake Manifold Cover Replacement
1 Ignition Coil Fastener (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Ignition Coil (Qty: 4)

Procedure

  1. Disconnect the electrical wiring harness connectors from the ignition coils and remove coils as necessary.
  2. Apply a thin coating of dielectric grease to the inside of the ignition coil rubber boot, up to a depth of 15 mm from the end of the boot. Adhesives, Fluids, Lubricants, and Sealers
  3. Remove any excess grease from around the end of the boot, and ensure there is not an excessive amount within the boot.
