Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Disable the high voltage system. High Voltage Disabling

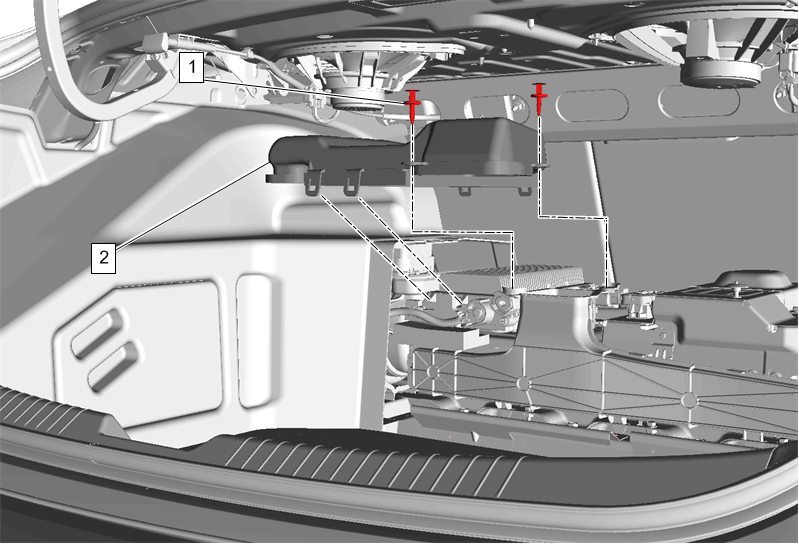

    2. Fig 1: Drive Motor Generator Control Module Tray
    GM4316329Courtesy of GENERAL MOTORS COMPANY
  2. Remove Drive Motor Generator Control Module Tray (1) - Drive Motor Generator Control Module Tray Replacement

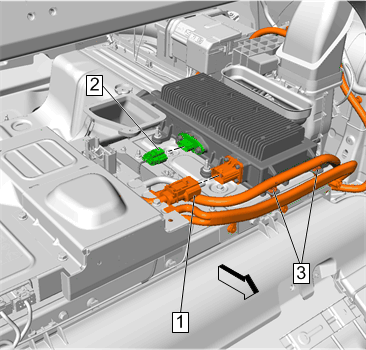

    3. Fig 2: High Voltage Electrical Connector
    GM4316486Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect High Voltage Electrical Connector (1)
  4. Disconnect Electrical Connector (2)
  5. Release the retainers (3)

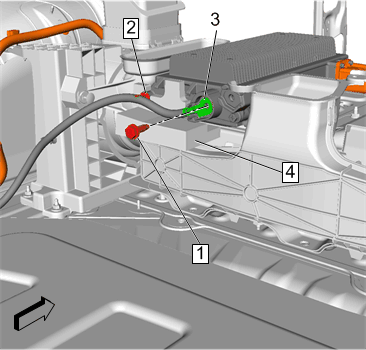

    6. Fig 3: Battery Positive Junction Block Cable Bolt
    GM4316679Courtesy of GENERAL MOTORS COMPANY
  6. Remove Battery Positive Junction Block Cable Bolt (1) at Accessory DC Power Control Module
  7. Disengage Retainer (2)
  8. Reposition away Battery Positive Junction Block Cable (3)
  9. Remove Drive Motor Battery Impact Absorber (4)

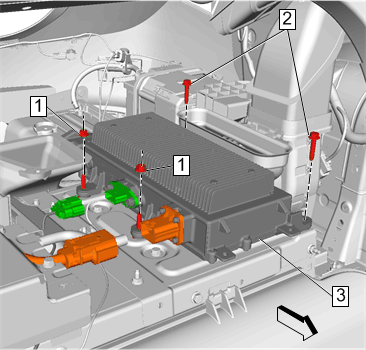

    10. Fig 4: Accessory DC Power Control Module
    GM4316483Courtesy of GENERAL MOTORS COMPANY
  10. Remove Accessory DC Power Control Module Nut (1) (Qty: 2)
  11. Remove Accessory DC Power Control Module Bolt (2) (Qty: 2)
  12. Remove Accessory DC Power Control Module (3)
