Left Front of Engine Components (LCV)

Left Front of Engine Components (LCV)

Items
1. B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust
2. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor
3. B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake
4. Q44 Engine Oil Pressure Control Solenoid Valve Q44 Engine Oil Pressure Control Solenoid Valve

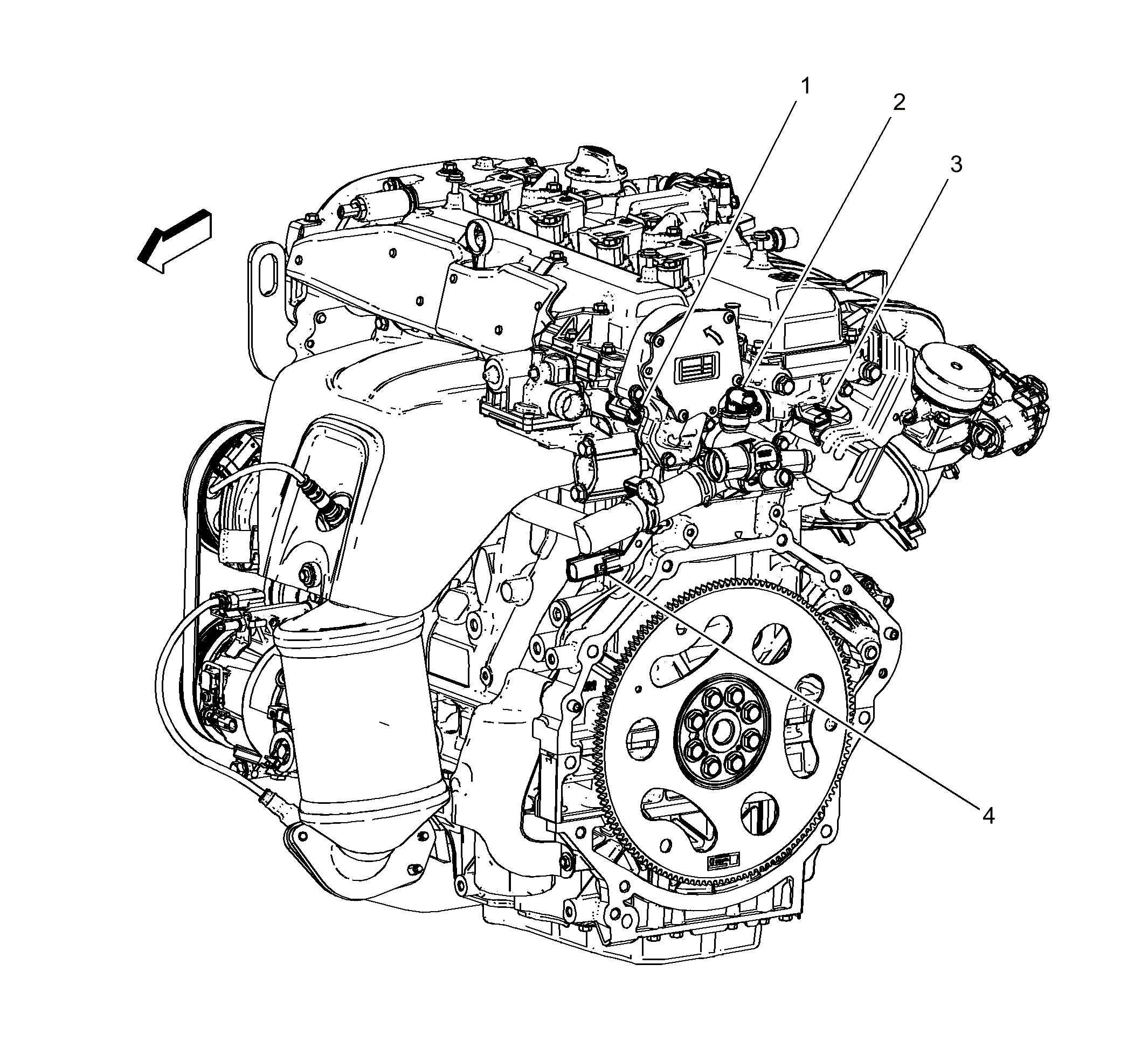

Fig 1: Left Front of Engine Components (LCV)
GM4183550Courtesy of GENERAL MOTORS COMPANY
