Power, Ground and Data Communication References

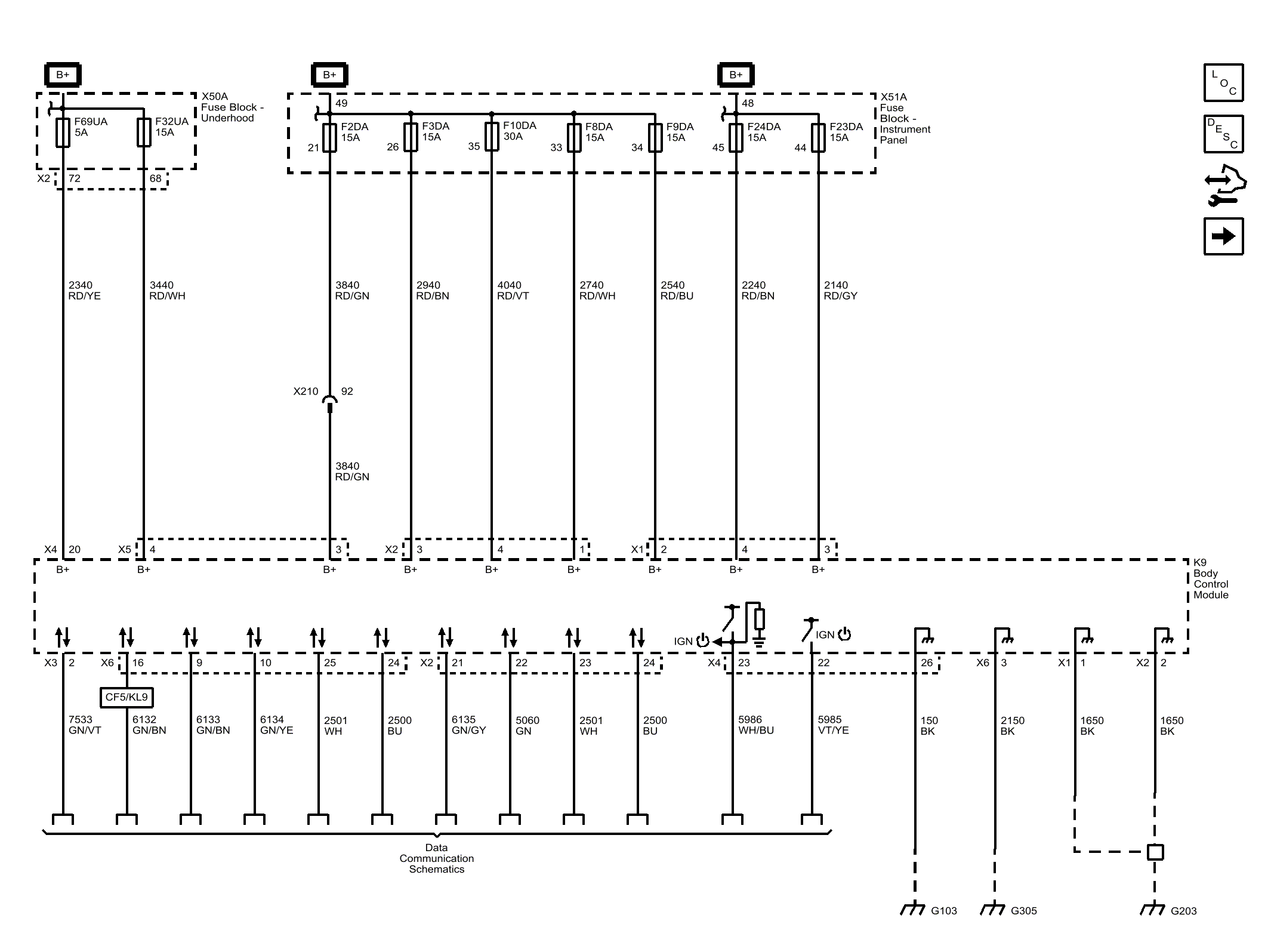

Fig 1: Power, Ground and Data Communication References
GM4079801Courtesy of GENERAL MOTORS COMPANY
