Removal Procedure

WARNING:

Refer to Gasoline/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

  1. Remove Fuel Tank Replacement
    2. Fig 1: Electrical Connector
    GM4230507Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect Electrical Connector (1) at Fuel Tank Fuel Pump Module (2)
  3. Disconnect Fuel and EVAP Pipe (2) (Qty: 2) - Plastic Collar Quick Connect Fitting Service
    4. Fig 2: Fuel Pump Lock Ring
    GM4230523Courtesy of GENERAL MOTORS COMPANY
  4. Remove Fuel Pump Lock Ring (1) - CH 45722  Fuel Sender Lock Ring Wrench

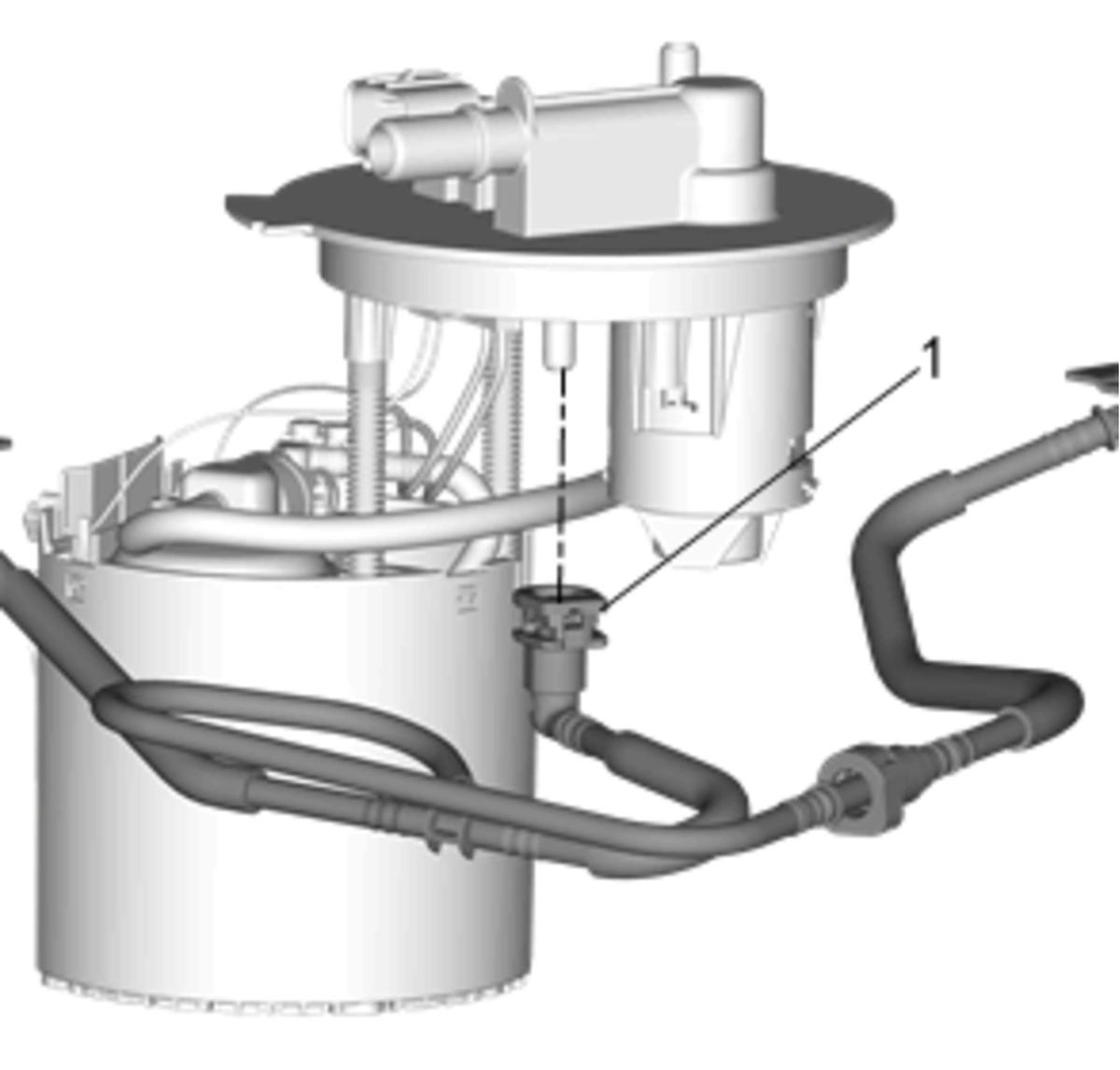

    5. Fig 3: Fuel Pump Vent Pipe
    GM4230539Courtesy of GENERAL MOTORS COMPANY
  5. Disconnect Fuel Pump Vent Pipe (1) - Plastic Collar Quick Connect Fitting Service
    6. Fig 4: Fuel Tank Fuel Pump Module
    GM4230590Courtesy of GENERAL MOTORS COMPANY
  6. Remove Fuel Tank Fuel Pump Module (1)
  7. Remove O-Ring (2) and DISCARD
