Windshield Wiper System Module Replacement

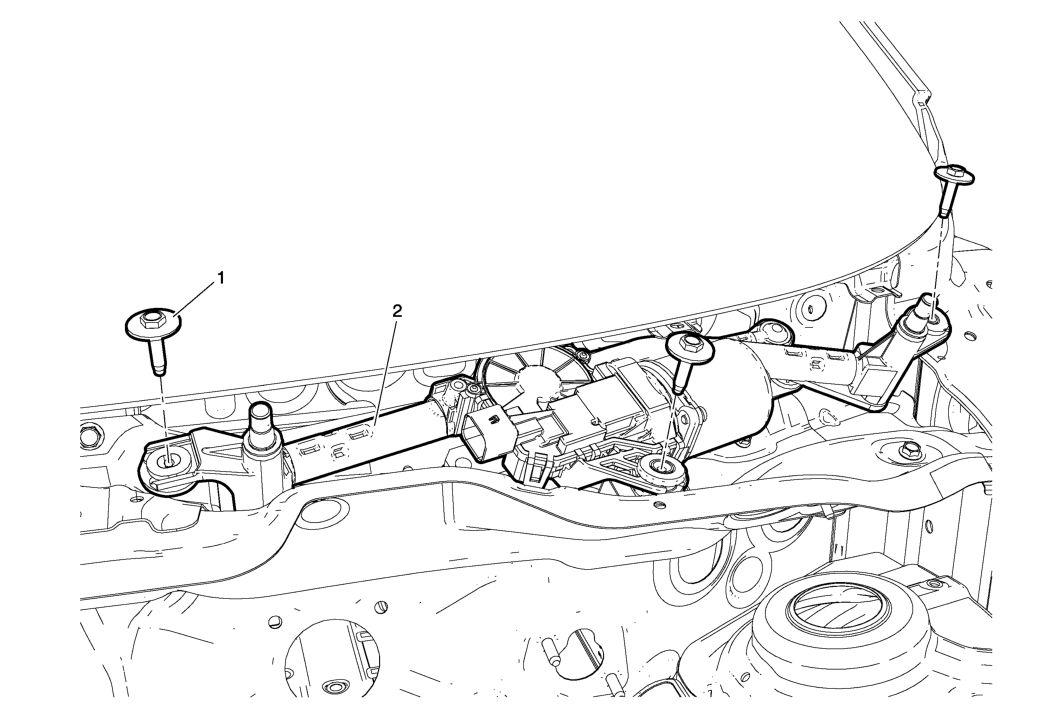

Fig 1: Windshield Wiper Transmission

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
1	Windshield Wiper System Module Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Windshield Wiper System Module
