Door Lock Switch Replacement

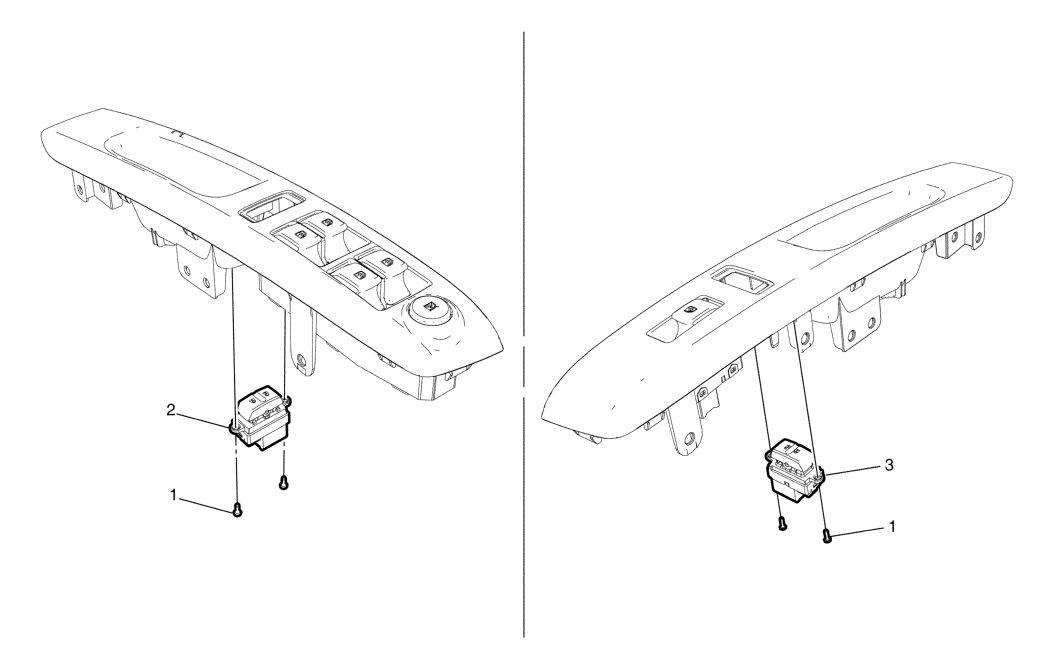

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door armrest switch mount plate from the door trim. Refer to Front Side Door Armrest Switch Mount Plate Replacement . |
|
| 1 | Door Lock Switch Screw
CAUTION:
Refer to Fastener Caution . |
| 2 | Door Lock Switch - Driver Side |
| 3 | Door Lock Switch - Passenger Side |
