Door Open Indicator Switch Replacement

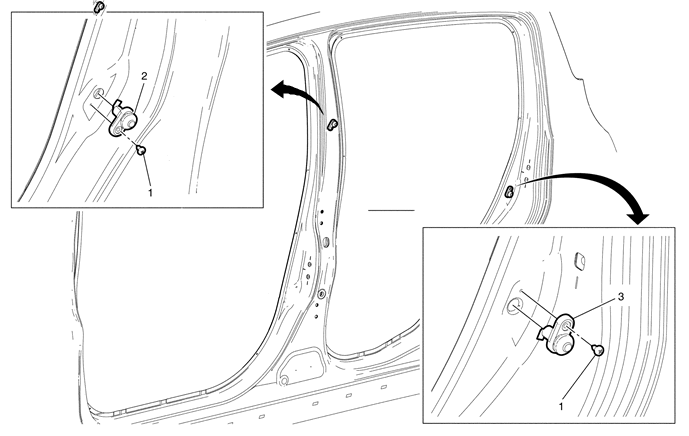

Fig 1: Door Open Indicator Switch
GM3972812Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Door Ajar Switch Screw
CAUTION:

Refer to Fastener Caution .


Tighten
0.8 N.m (7 lb in)
2 Door Ajar Switch-Front

Procedure

  1. Remove the door ajar switch from the body panel.
  2. Disconnect the door ajar switch electrical connector.
3 Door Ajar Switch-Rear

Procedure

  1. Remove the door ajar switch from the body panel.
  2. Disconnect the door ajar switch electrical connector.
