Liftgate Outside Handle Replacement

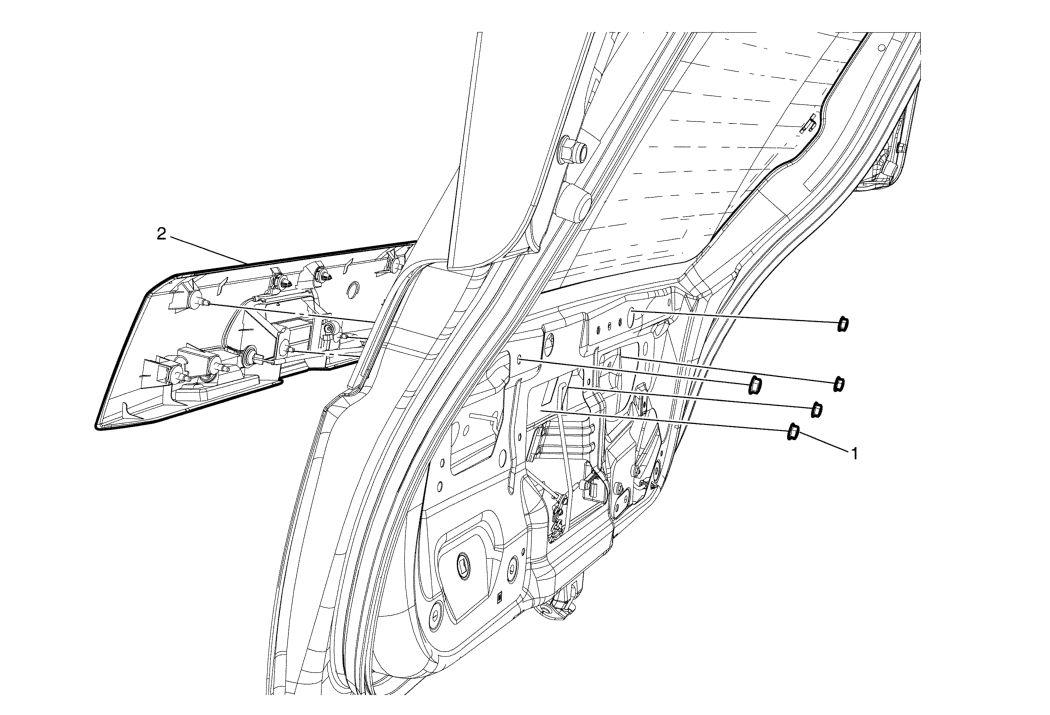

Fig 1: Liftgate Outside Handle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement . Remove the liftgate lock cylinder. Refer to Liftgate Lock Cylinder Replacement .
1	Liftgate Outside Handle Nut (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Liftgate Outside Handle Procedure Disconnect the license plate lamp electrical connector. Refer to Rear License Plate Lamp Replacement .

Callout

Component Name

Preliminary Procedures

Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement .
Remove the liftgate lock cylinder. Refer to Liftgate Lock Cylinder Replacement .

Liftgate Outside Handle Nut (Qty: 5)

CAUTION:

Tighten
5 N.m (44 lb in)

Liftgate Outside Handle
Procedure
Disconnect the license plate lamp electrical connector. Refer to Rear License Plate Lamp Replacement .
