AC Battery Charging

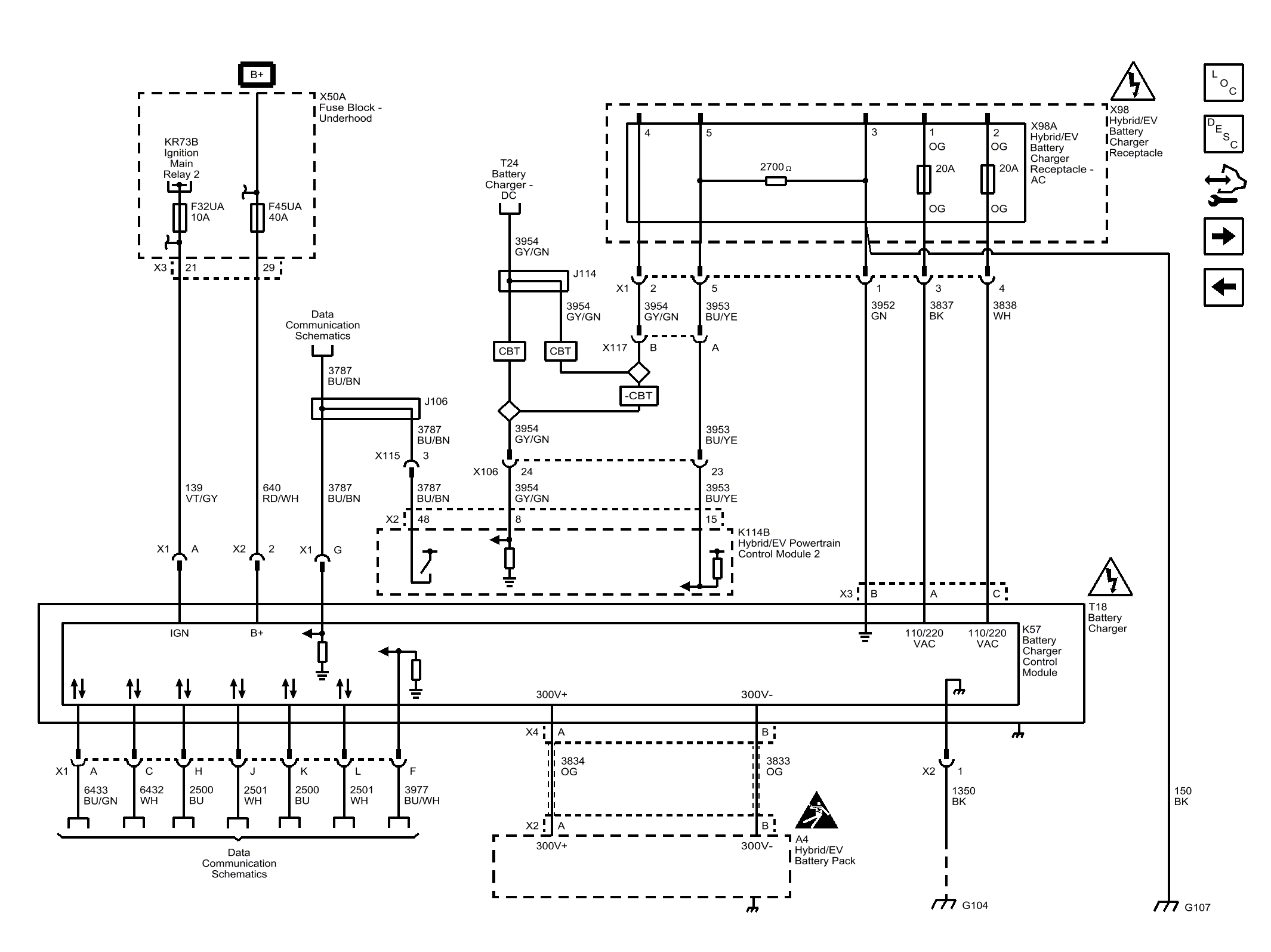

Fig 1: AC Battery Charging
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
