Wireless Charging System Module Replacement

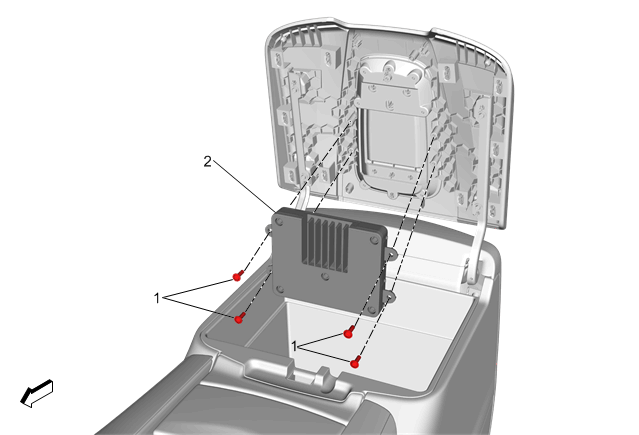

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console armrest hinge cover. Refer to Front Floor Console Armrest Hinge Cover Replacement . |
|
| 1 | Charging System Wireless Module Fastener (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Charging System Wireless Module Procedure Disconnect the electrical connector. |
