Installation Procedure

    Fig 1: View Of Fuel Level Sensor Retaining Clip
    GM1705920Courtesy of GENERAL MOTORS COMPANY
  1. Slide the fuel level sensor up onto the bucket until the sensor engages the retaining tab (1).

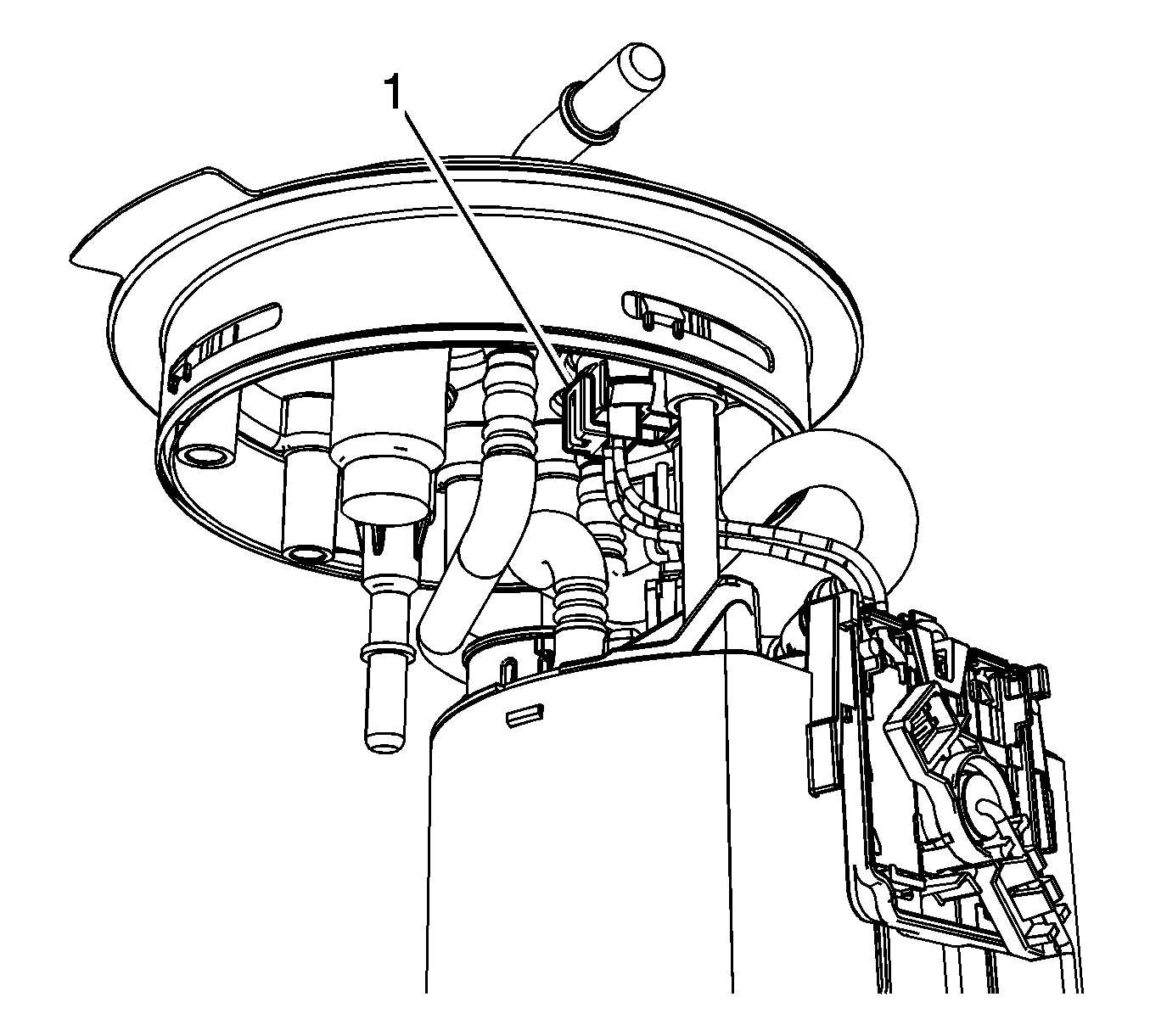

    2. Fig 2: View Of Fuel Level Sensor Electrical Connector
    GM1705918Courtesy of GENERAL MOTORS COMPANY
  2. Connect the fuel level sensor electrical connector (1) under the module cover.
  3. Install the fuel tank module. Refer to Fuel Tank Fuel Pump Module Replacement (Front Tank) Fuel Tank Fuel Pump Module Replacement (Rear Tank) .
