Installation Procedure

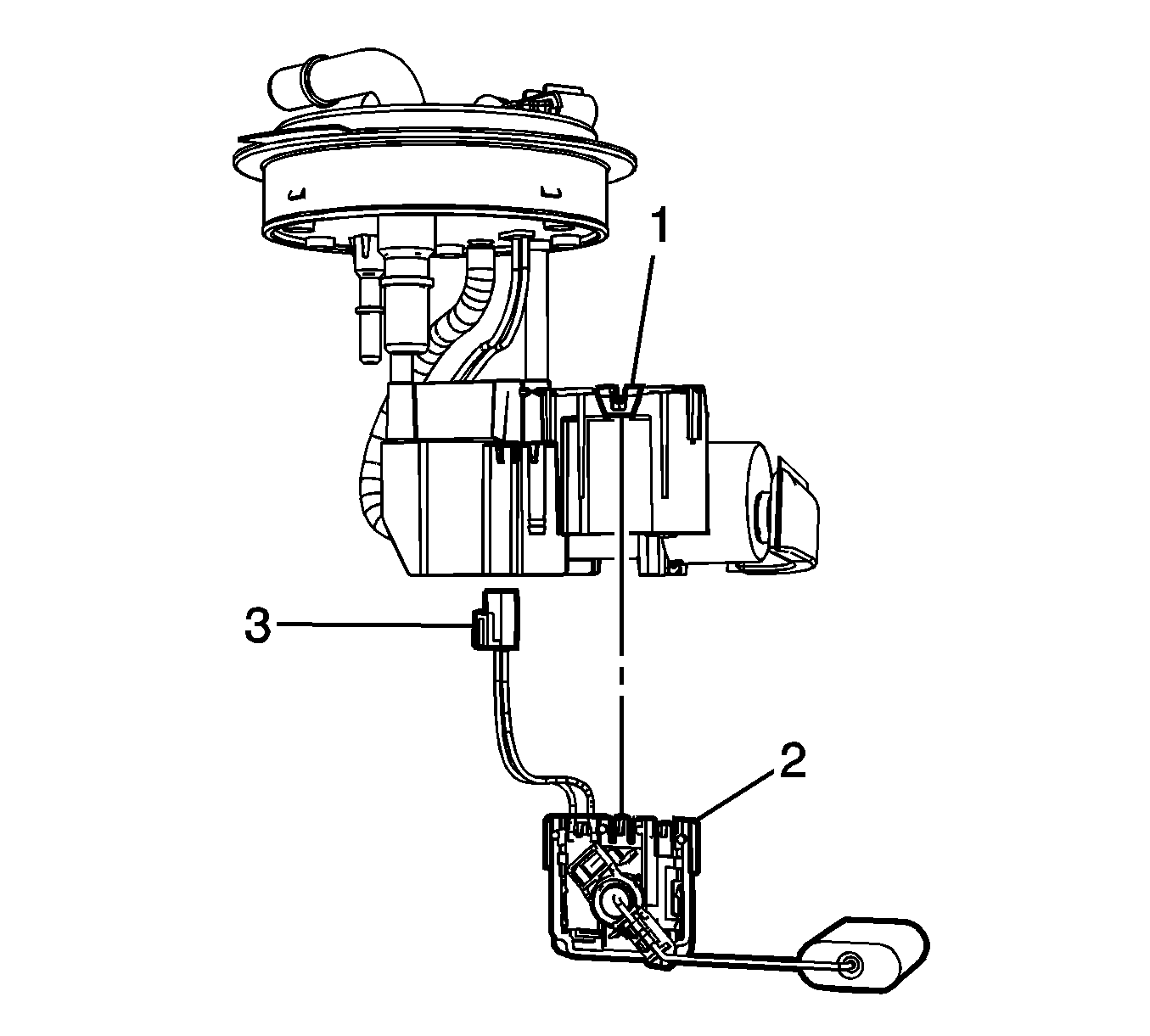

    Fig 1: View Of Fuel Level Sensor, Electrical Connector & Retaining Clip
    GM1705922Courtesy of GENERAL MOTORS COMPANY
  1. Slide the fuel level sensor (2) up onto the bucket until the sensor engages the retaining tab (1).
  2. Connect the fuel level sensor electrical connector (3) under the module cover.
  3. Install the fuel tank module. Refer to Fuel Tank Fuel Pump Module Replacement (Front Tank) Fuel Tank Fuel Pump Module Replacement (Rear Tank) .
