Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

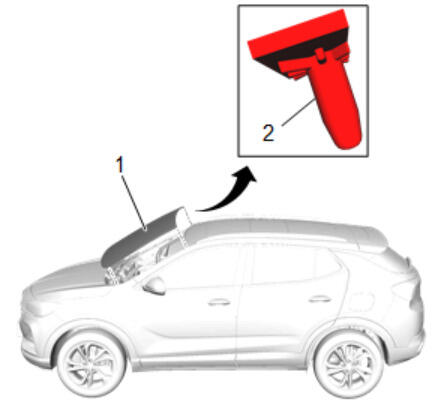

Windshield (1) - Install - Adhesive Installation of Windshields
Courtesy of GENERAL MOTORS COMPANY

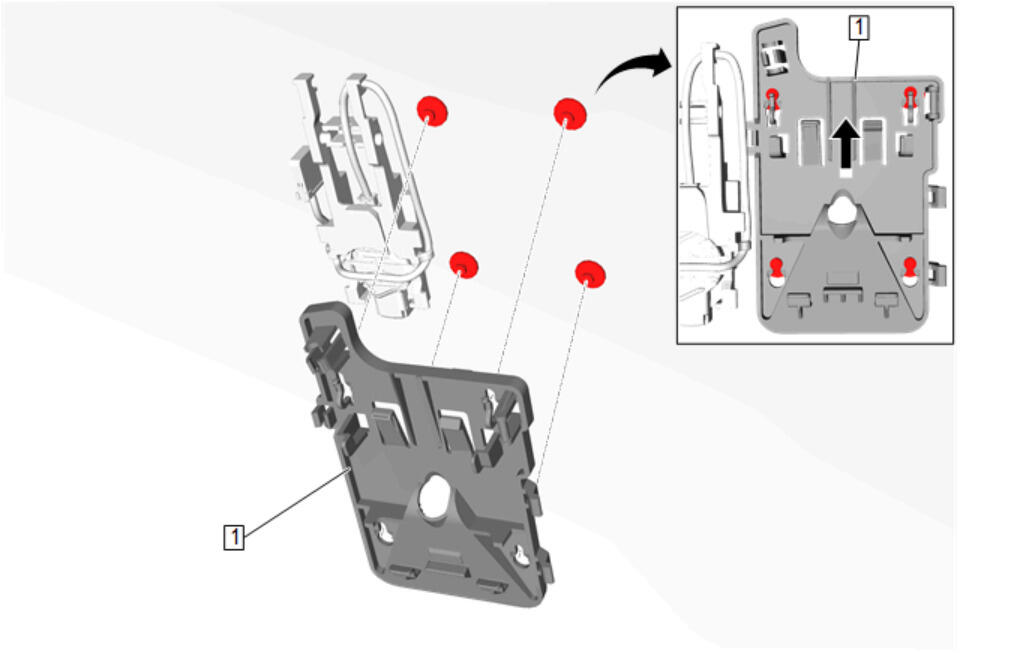

Multifunction Relay Module Bracket (1) - Install - Multifunction Relay Module Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

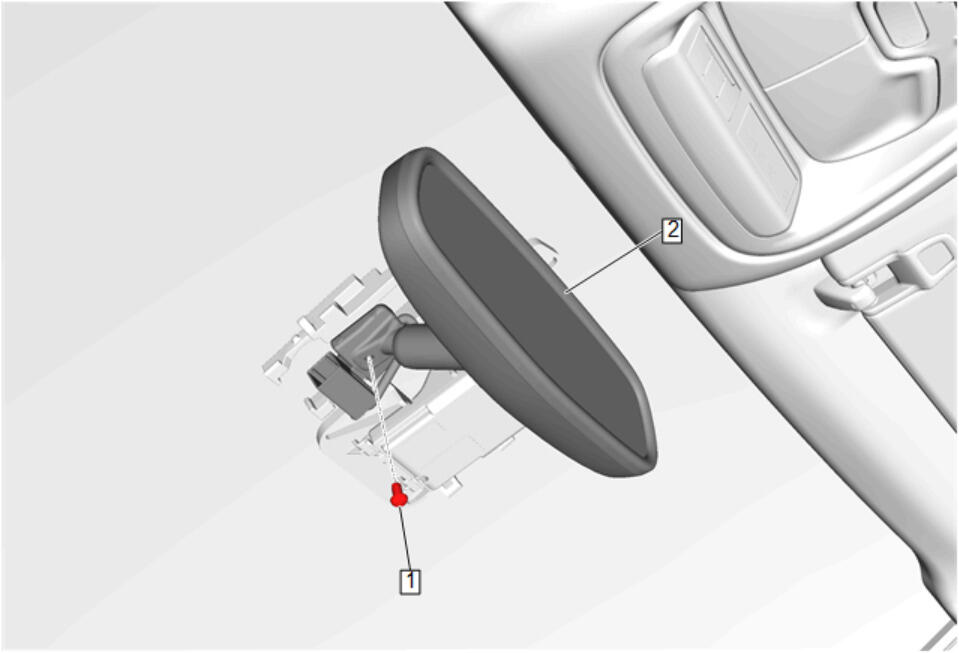

Inside Rearview Mirror - (2) Install - Inside Rearview Mirror Replacement
Courtesy of GENERAL MOTORS COMPANY

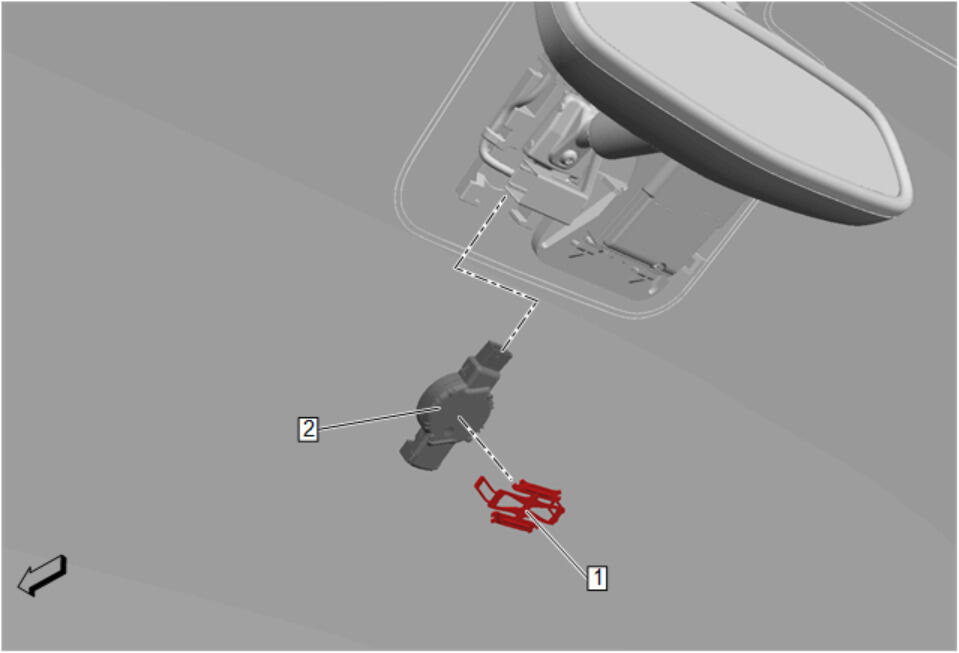

{If equipped} Inside Air Moisture and Windshield Temperature Sensor (2) - Install - Inside Air Moisture and Windshield Temperature Sensor Replacement
{If equipped} Front View Camera (1) - Install - Front View Camera Replacement
Courtesy of GENERAL MOTORS COMPANY

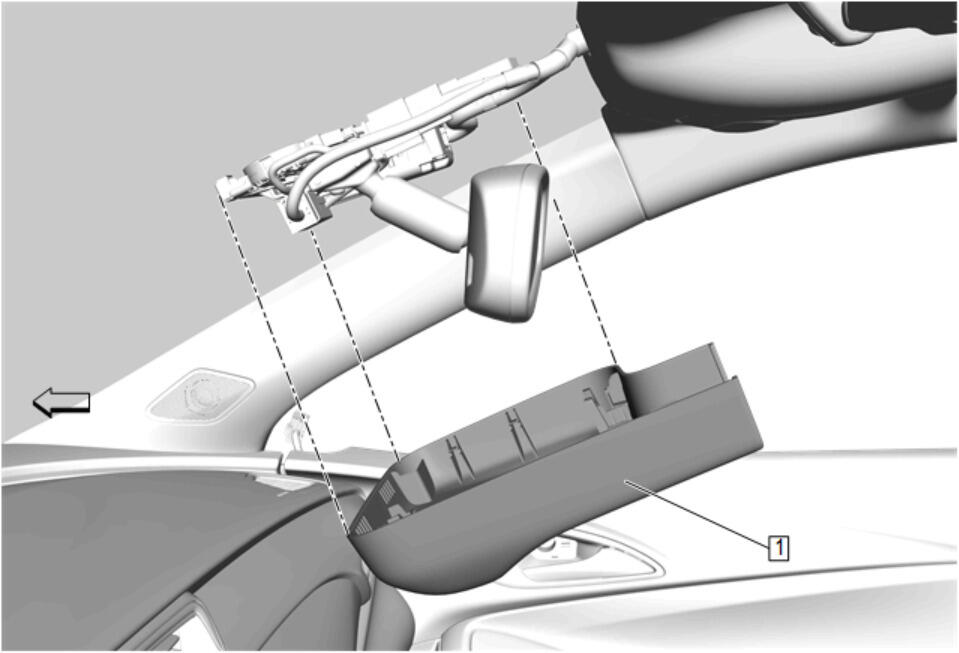

Windshield Multifunction Sensor Mount Bracket Cover (1) - Install - Windshield Multifunction Sensor Mount Bracket Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

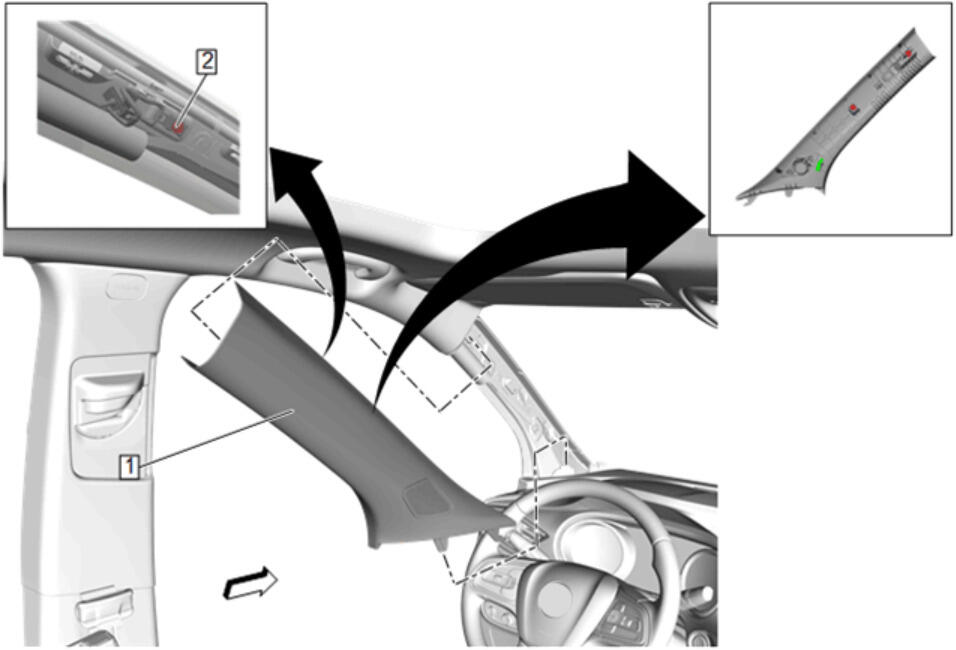

Windshield Garnish Molding (1) - Install - Windshield Garnish Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

Air Inlet Grille Panel (2) - Install - Air Inlet Grille Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

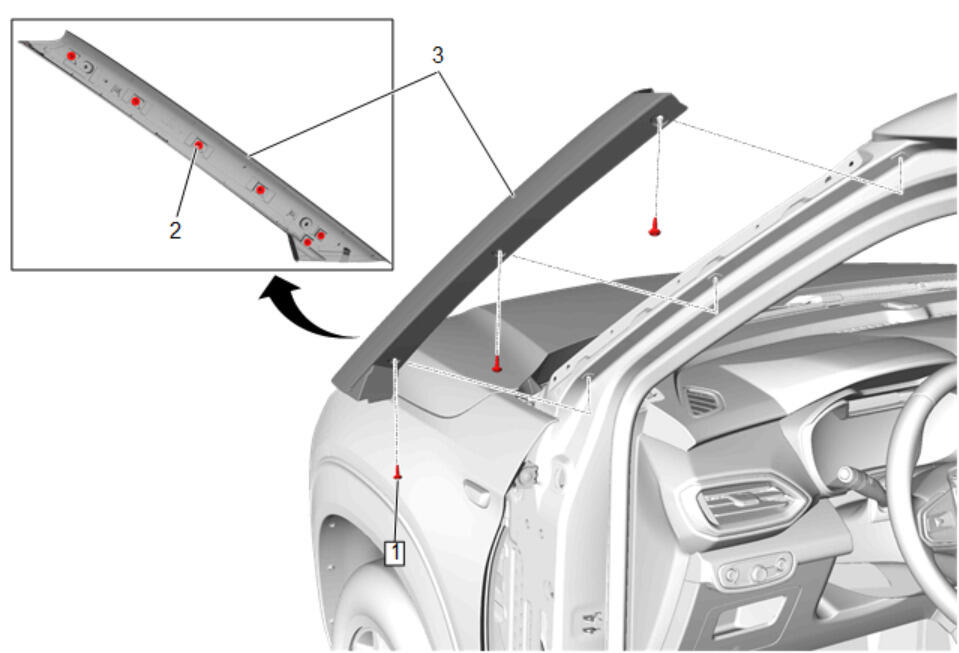

Body Side Upper Front Applique (3) - Install - Body Side Upper Front Applique Replacement
Battery Negative Cable - Connect - Battery Negative Cable Disconnection and Connection
Close the hood.
Remove the double layer of masking tape around the perimeter of the painted surfaces.
