Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Electronic Brake Control Module (2) - Install
Electronic Brake Control Module Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

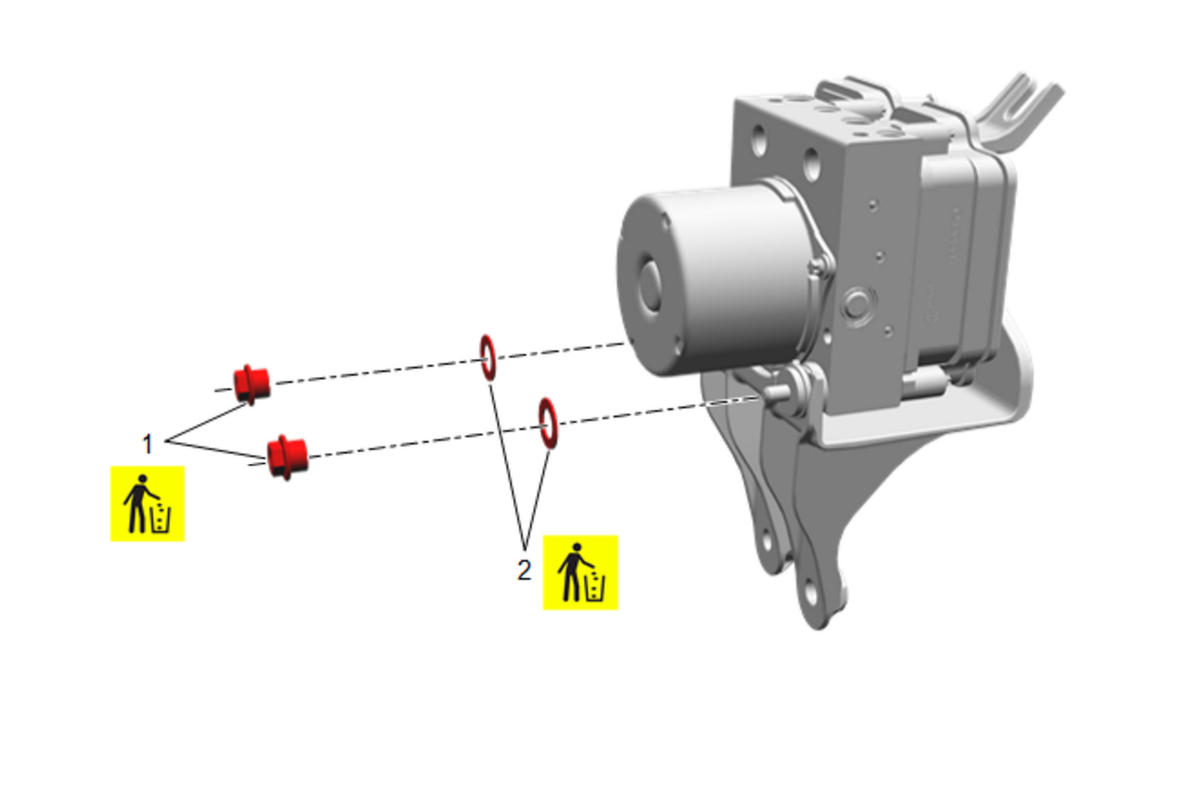

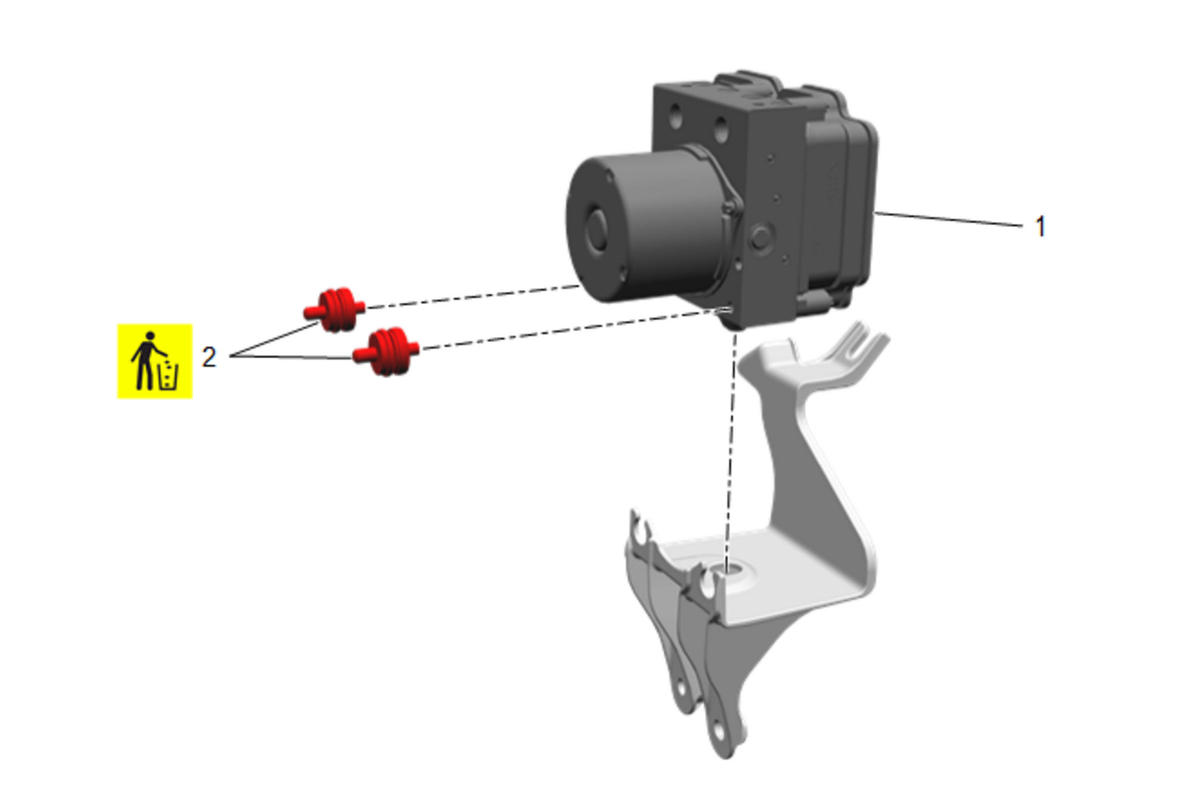

Brake Pressure Modulator Valve Insulator (2) - Install NEW [2x]
Electronic Brake Control Module with Brake Pressure Modulator Valve (1) @ Brake Pressure Modulator Valve Bracket - Install
Courtesy of GENERAL MOTORS COMPANY

Brake Pressure Modulator Valve Insulator Washer (2) - Install NEW [2x]
Brake Pressure Modulator Valve Insulator Nut (1) - Install NEW [2x]

CAUTION:

Fastener Caution

Brake Pressure Modulator Valve Insulator Nut (1) - Tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

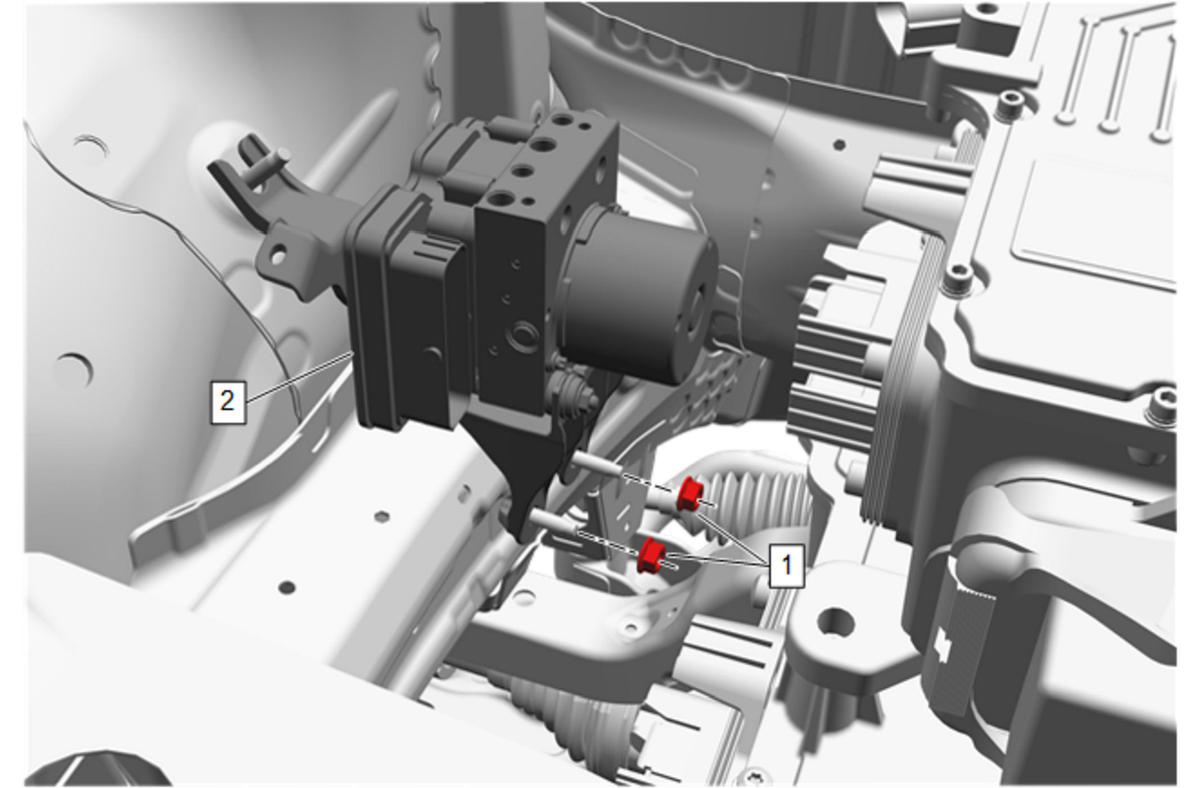

Electronic Brake Control Module with Brake Pressure Modulator Valve and Bracket Assembly (2) @ Vehicle - Install
Brake Pressure Modulator Valve Bracket Nut (1) @ Front Compartment Inner Side Rail - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

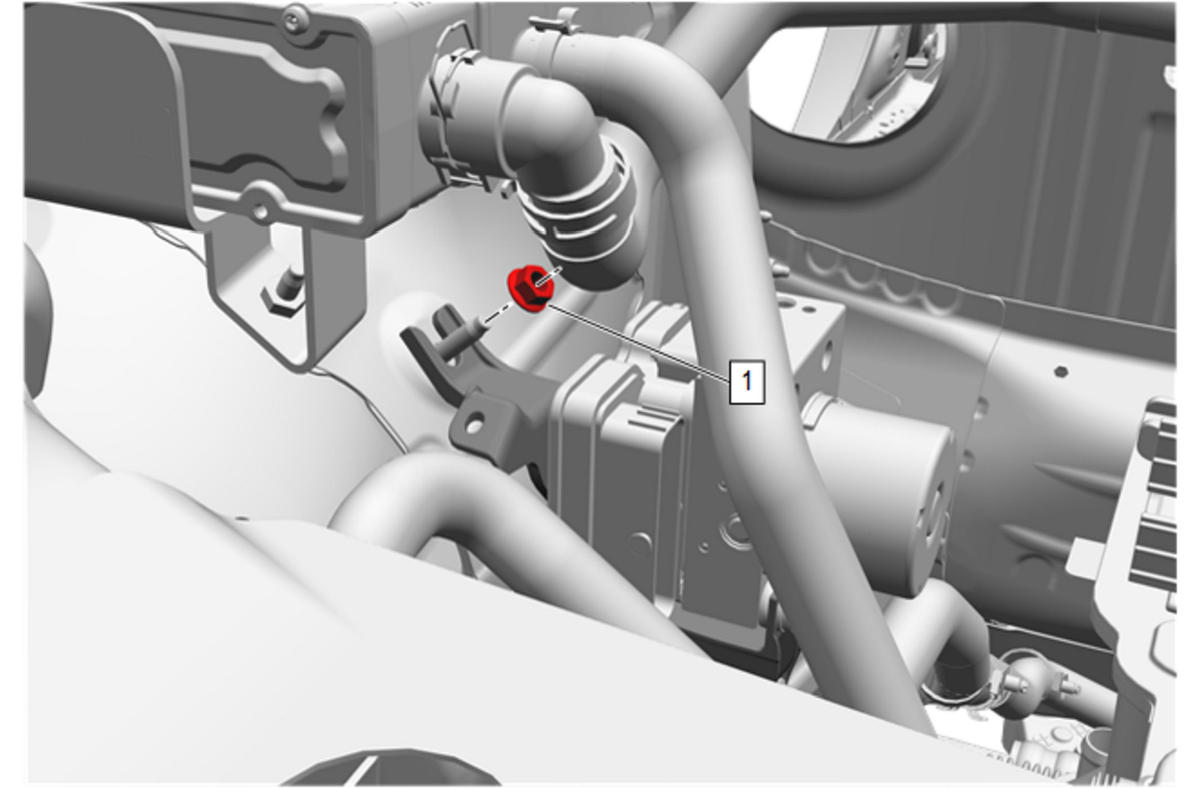

Brake Pressure Modulator Valve Bracket Nut (1) @ Front Wheel House Panel - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

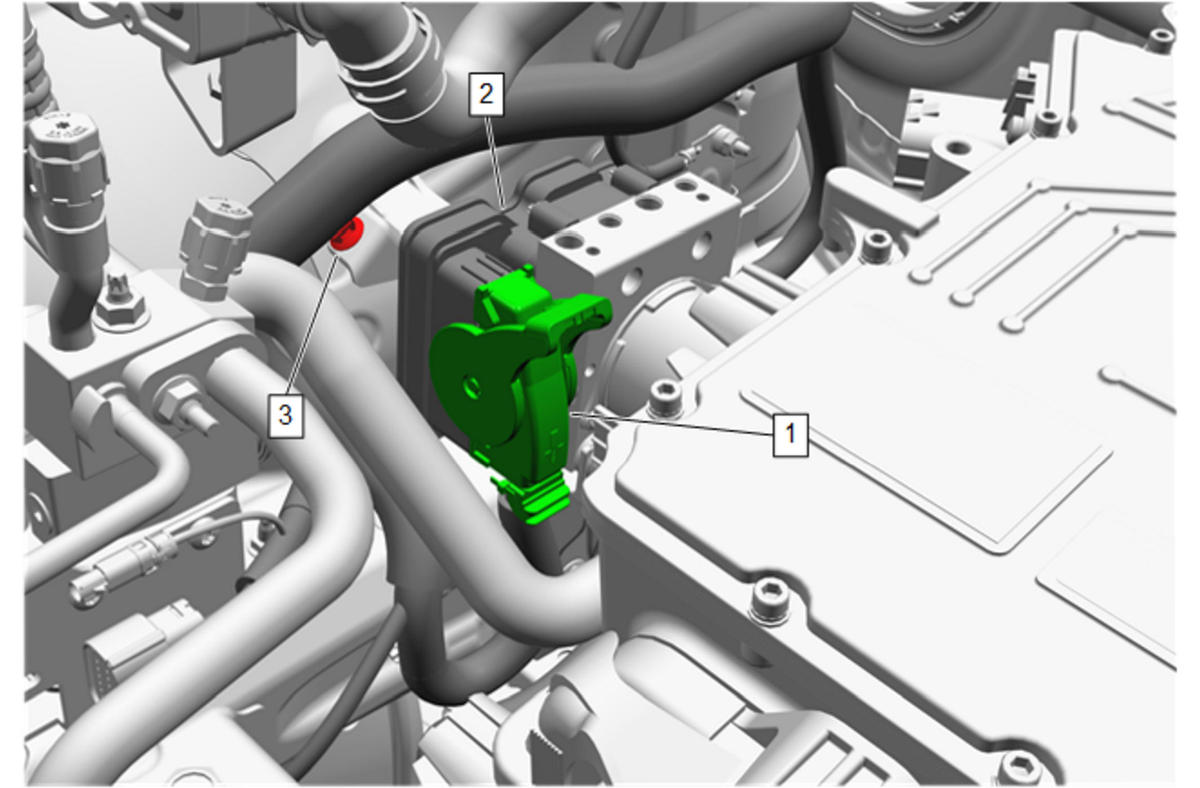

Body Wiring Harness Clip (3) @ Brake Pressure Modulator Valve Bracket - Install
Electrical Connector (1) @ Electronic Brake Control Module (2) - Connect
Courtesy of GENERAL MOTORS COMPANY

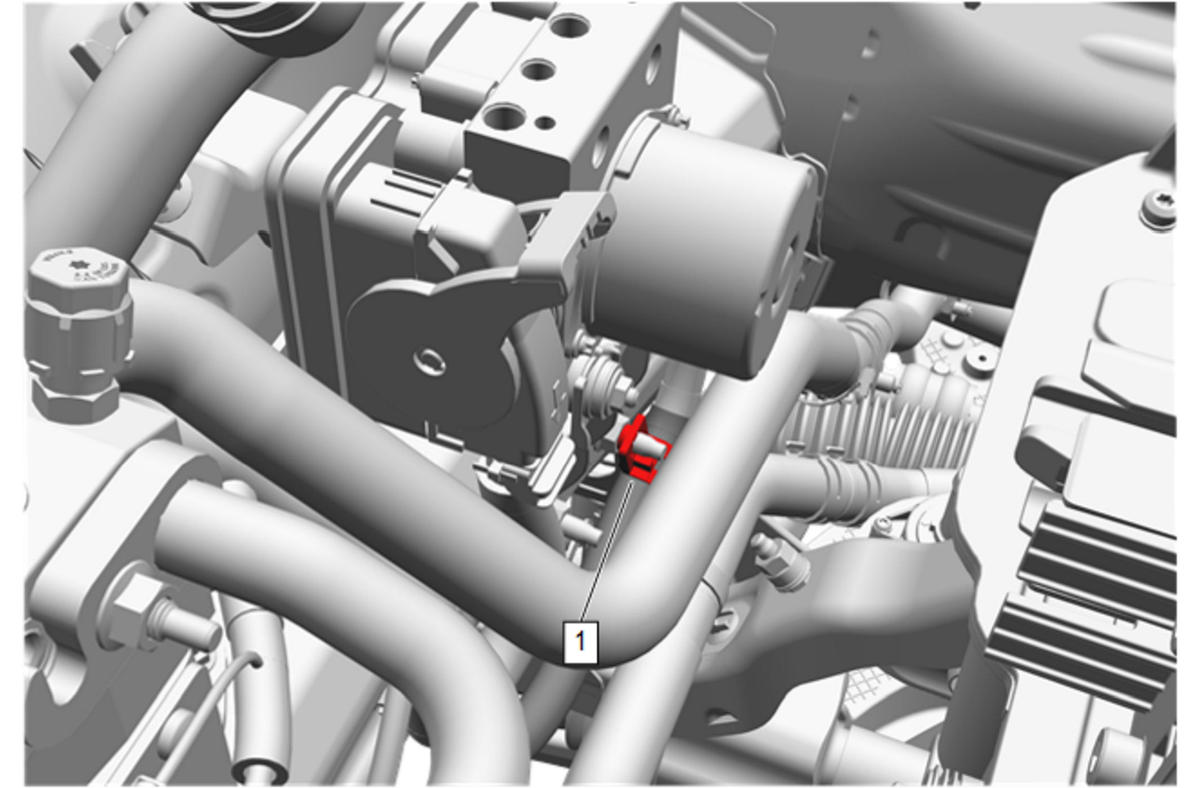

Body Wiring Harness Clip (1) - Install
Courtesy of GENERAL MOTORS COMPANY

WARNING:
Make sure brake pipes are correctly connected to brake pressure modulator valve. If brake pipes are switched by mistake, wheel lockup will occur and personal injury may result. The only two ways this condition can be detected are by using a Scan Tool or by doing an Antilock stop.

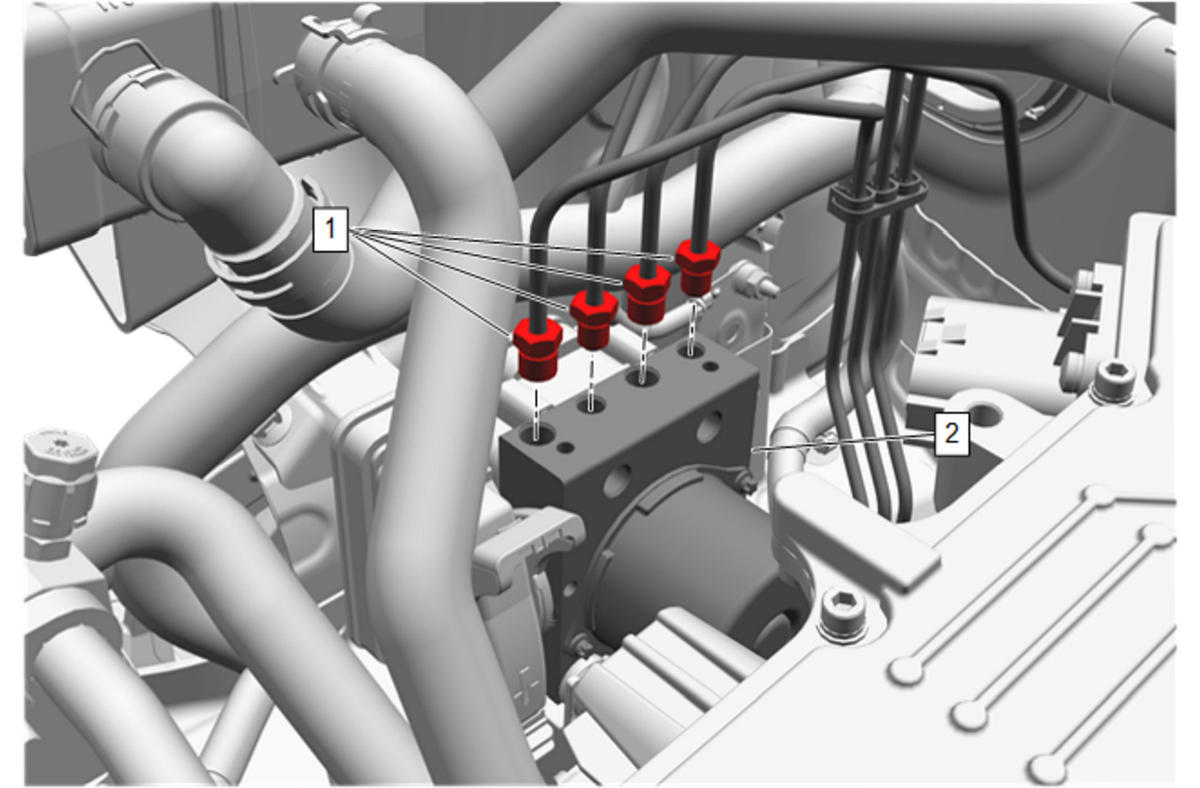

Brake Pipe Fitting (1) @ Brake Pressure Modulator Valve (2) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

WARNING:
Make sure brake pipes are correctly connected to brake pressure modulator valve. If brake pipes are switched by mistake, wheel lockup will occur and personal injury may result. The only two ways this condition can be detected are by using a Scan Tool or by doing an Antilock stop.

NOTE:
Make sure that the electronic brake control module is fully seated into the grommets after the brake pipes are tightened.

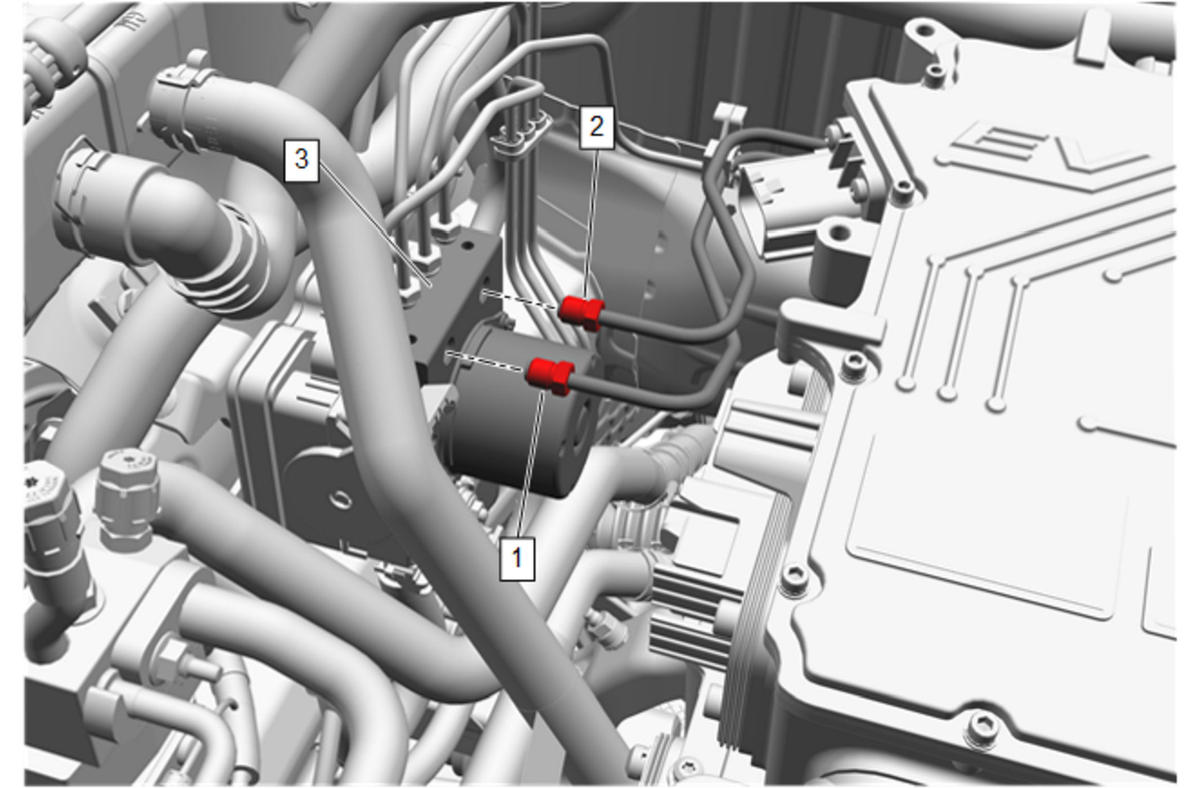

Brake Pressure Modulator Valve Rear Pipe Fitting (2) @ Brake Pressure Modulator Valve (3) - Install and tighten - Fastener Specifications
Brake Pressure Modulator Valve Front Pipe Fitting (1) @ Brake Pressure Modulator Valve (3) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

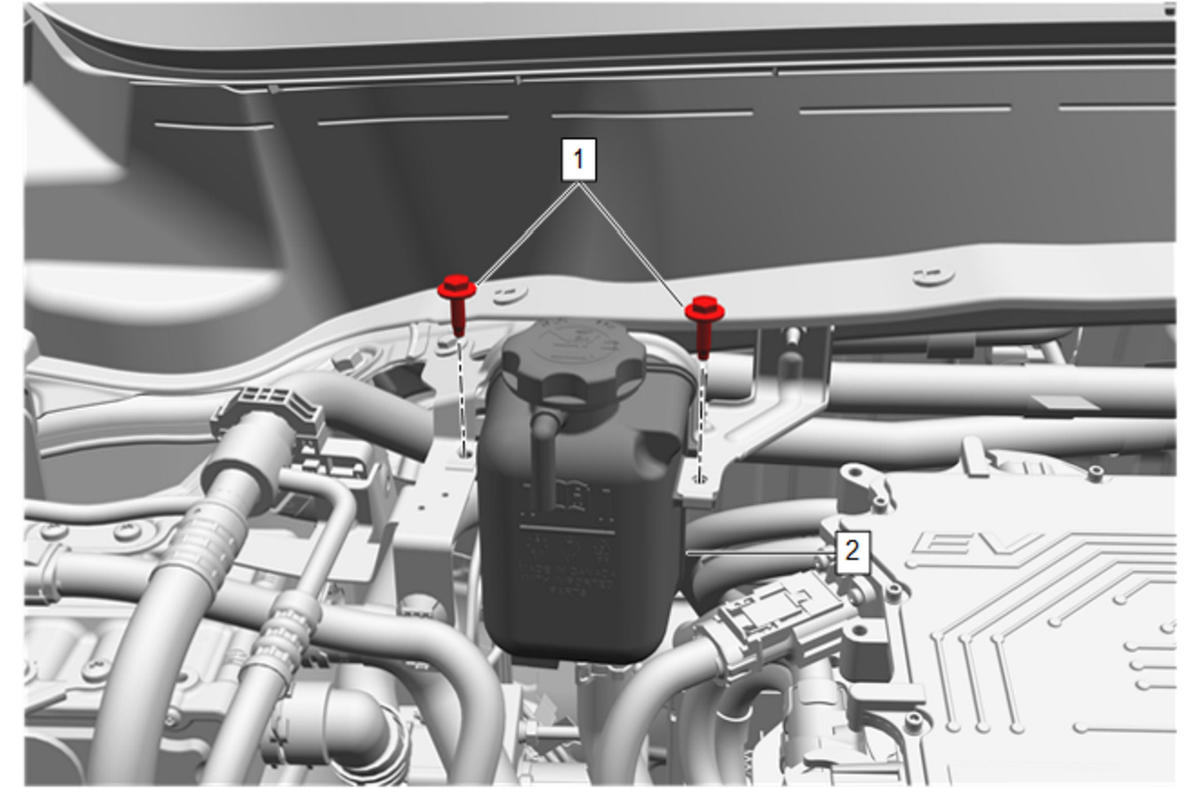

Heater Coolant Surge Tank (2) - Install
Heater Coolant Surge Tank Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

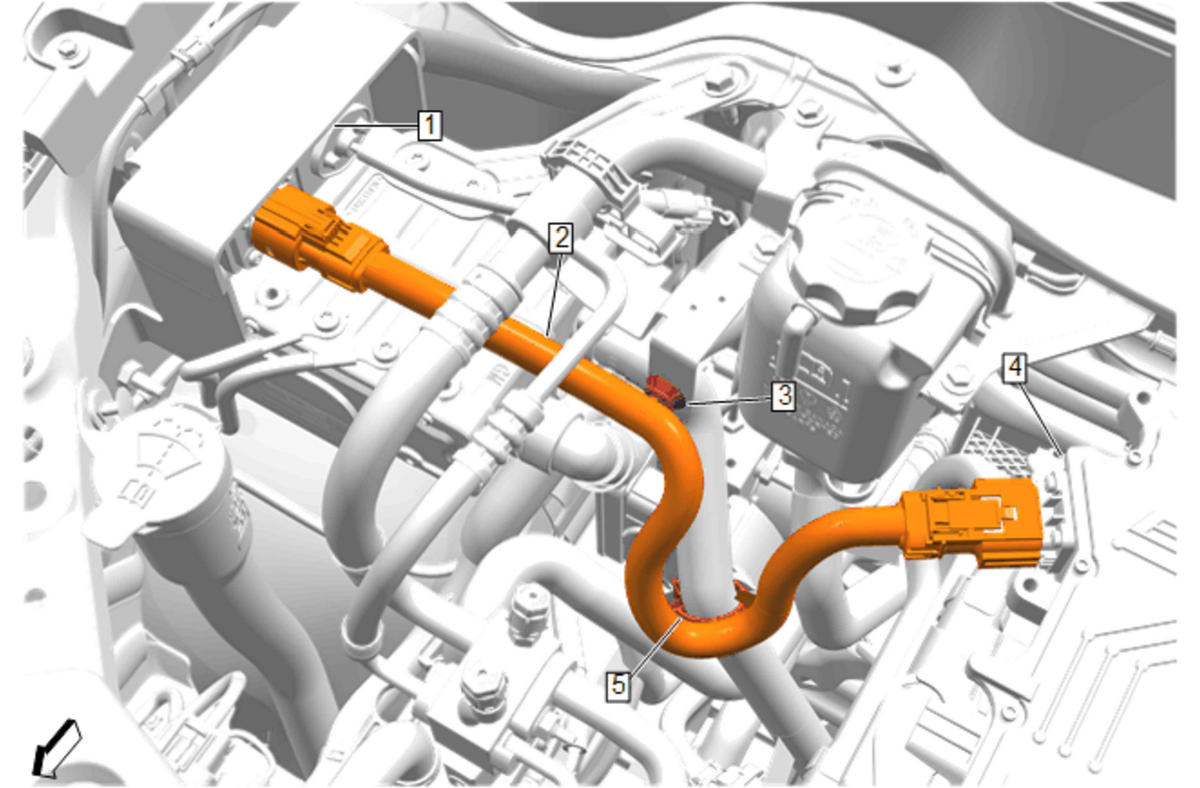

Drive Motor Battery Positive and Negative Cable (2) - Install
Retainer (3) - Attach
Clip (5) - - Install
Connect the drive motor battery positive and negative cable (2) to the high voltage battery disconnect control module assembly (4) and heater coolant heater assembly (1).
Courtesy of GENERAL MOTORS COMPANY

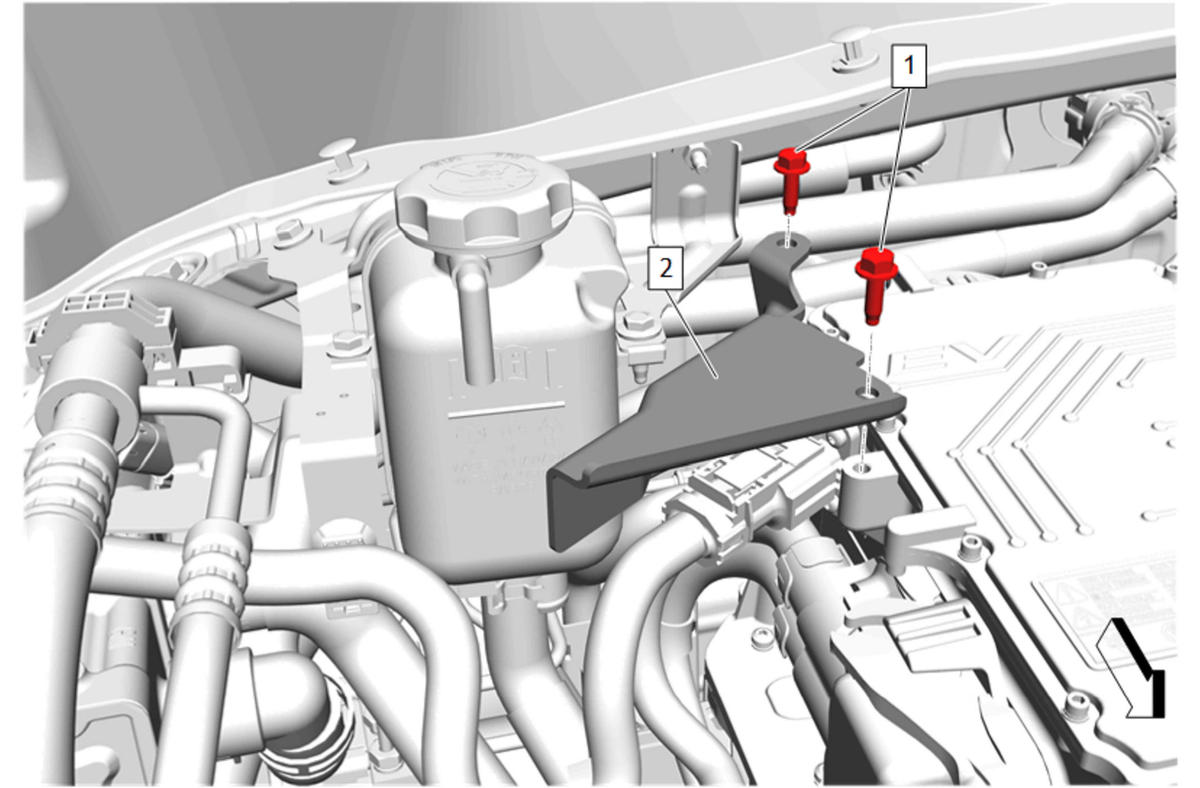

Accessory DC Power Control Module High Voltage Connector Protector (2) - Install
Accessory DC Power Control Module High Voltage Connector Protector Bolt (1) - Install and tighten - Fastener Specifications [2x]
Enable the high voltage system. High Voltage Enabling
Program the electronic brake control module. Control Module References
Bleed the brake system. Hydraulic Brake System Bleeding
Calibrate the brake pressure modulator valve pressure sensor. Brake Pressure Modulator Valve Pressure Sensor Calibration
