Installation Procedure
- Front Wheel Speed Sensor @ Vehicle - Install

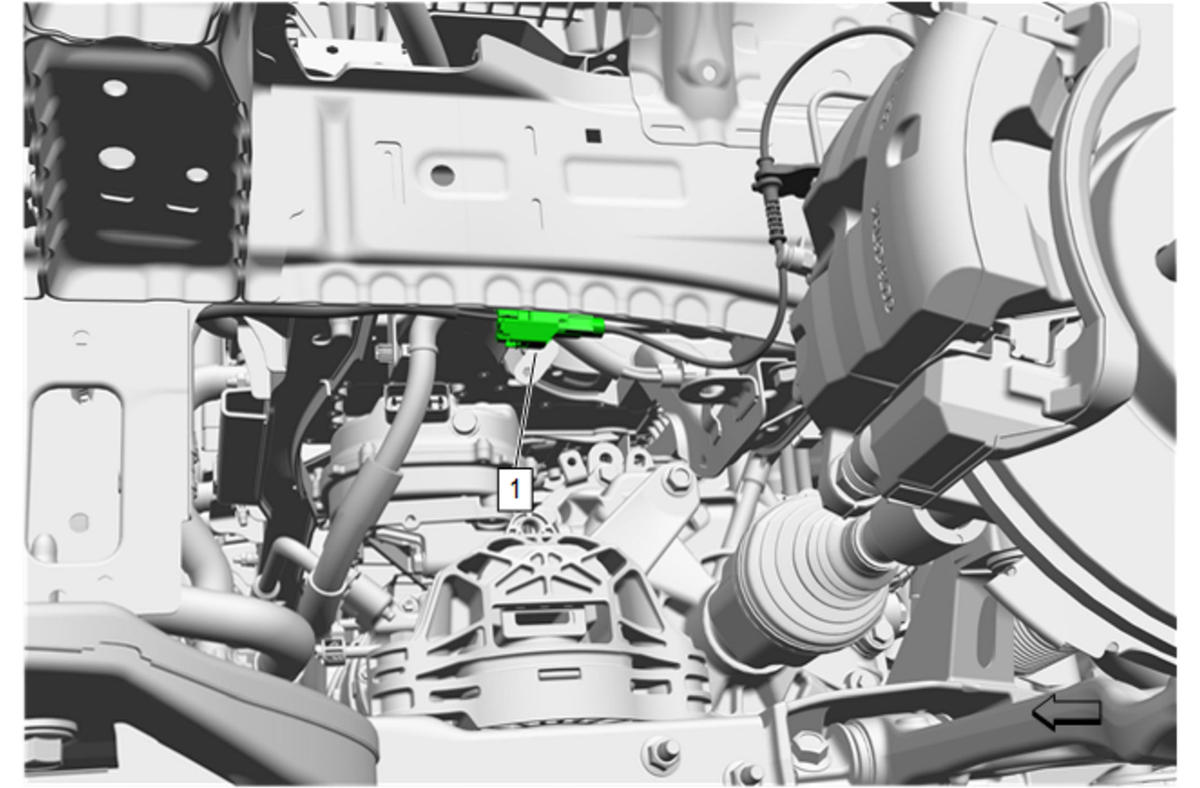

Front Wheel Speed Sensor Electrical Connector (1) @ Forward Lamp Wiring Harness - Connect

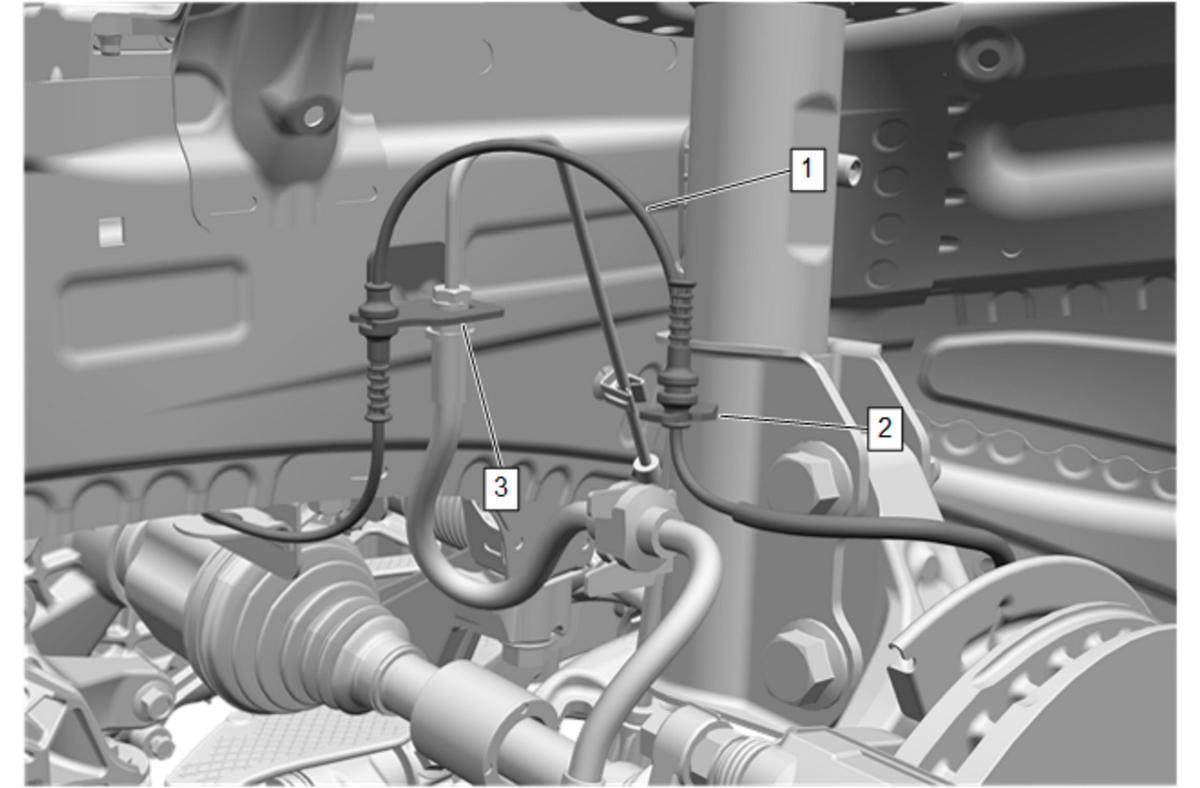

Front Wheel Speed Sensor Wiring Harness (1) Front Compartment Side Rail Mounted Bracket (3) - Install
- Front Wheel Speed Sensor Wiring Harness (1) Front Suspension Strut Mounted Bracket (2) - Install

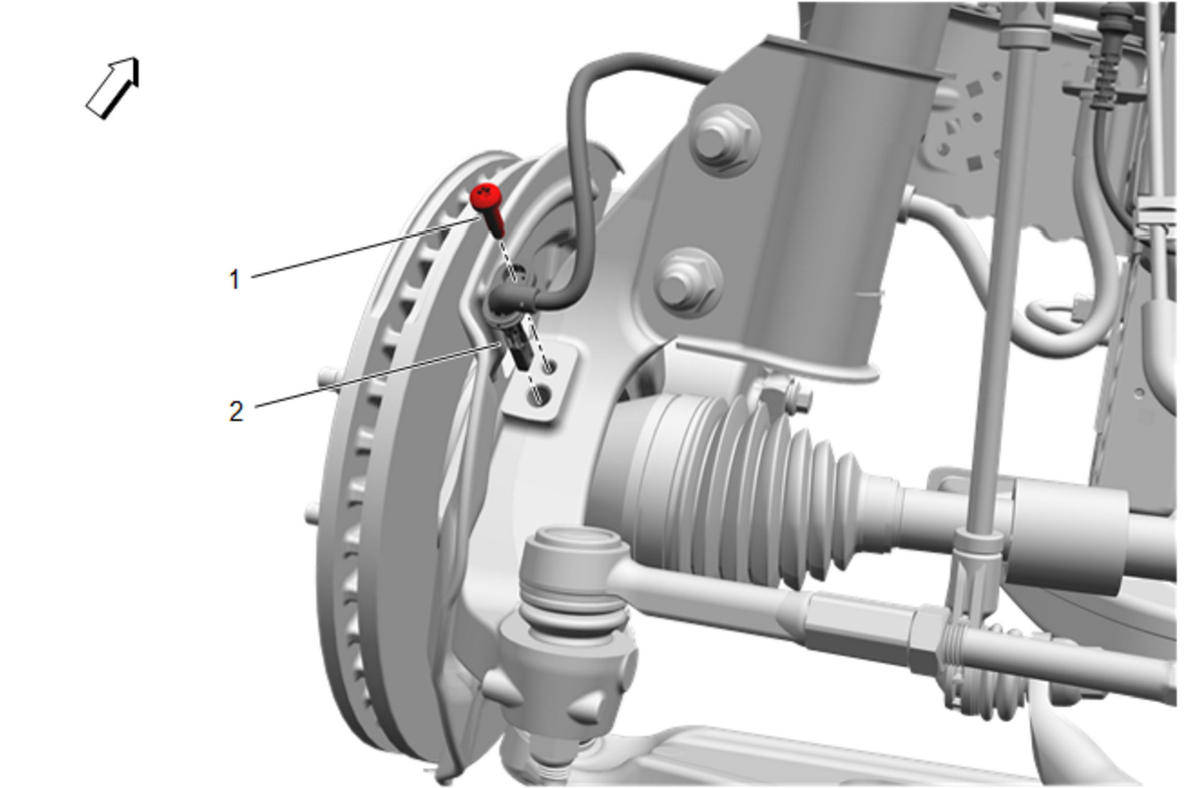

Front Wheel Speed Sensor (2) @ Steering Knuckle - Install
- Front Wheel Speed Sensor Bolt (1) @ Steering Knuckle - Install and tighten - Fastener Specifications

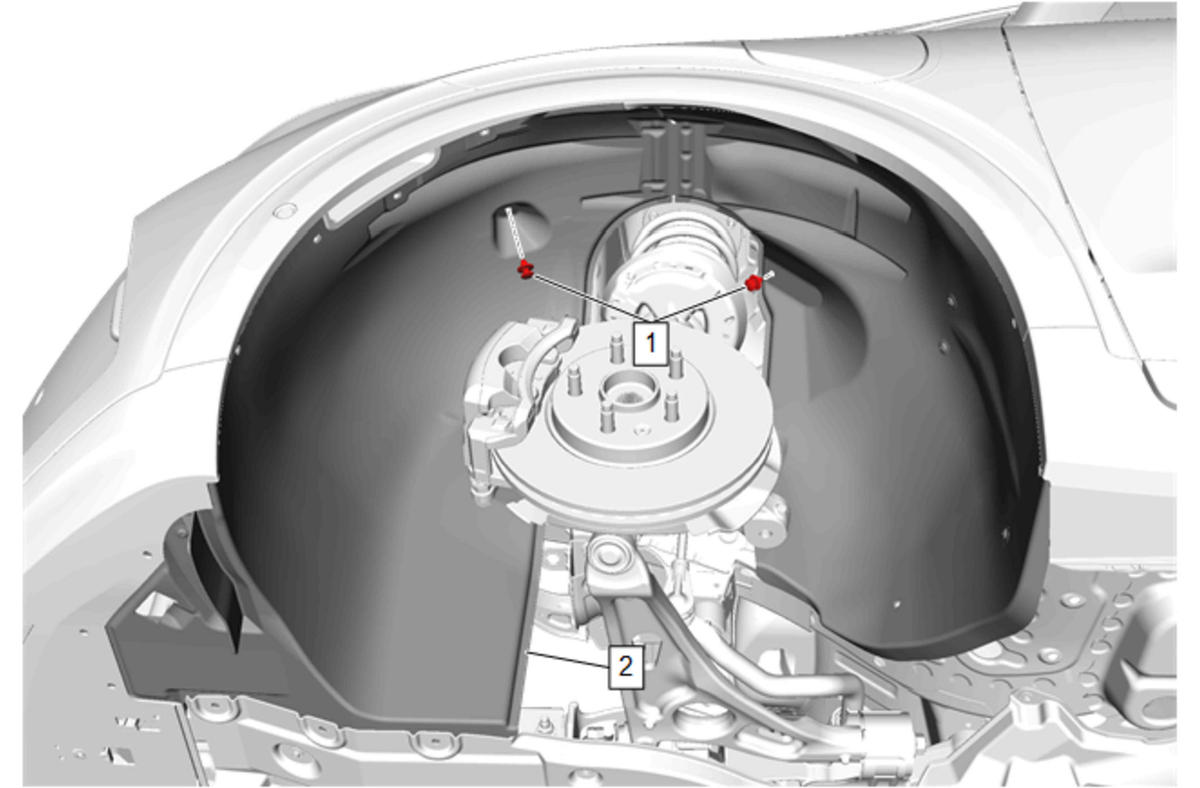

Front Wheelhouse Liner (2) - Install
- Front Wheelhouse Liner Retainer (1) - Install [2x]
Front Wheelhouse Liner Bolt (1) - Install and tighten [13x] - Fastener Specifications
Front Compartment Insulator Bolt (1) - Install and tighten [3x] - Fastener Specifications

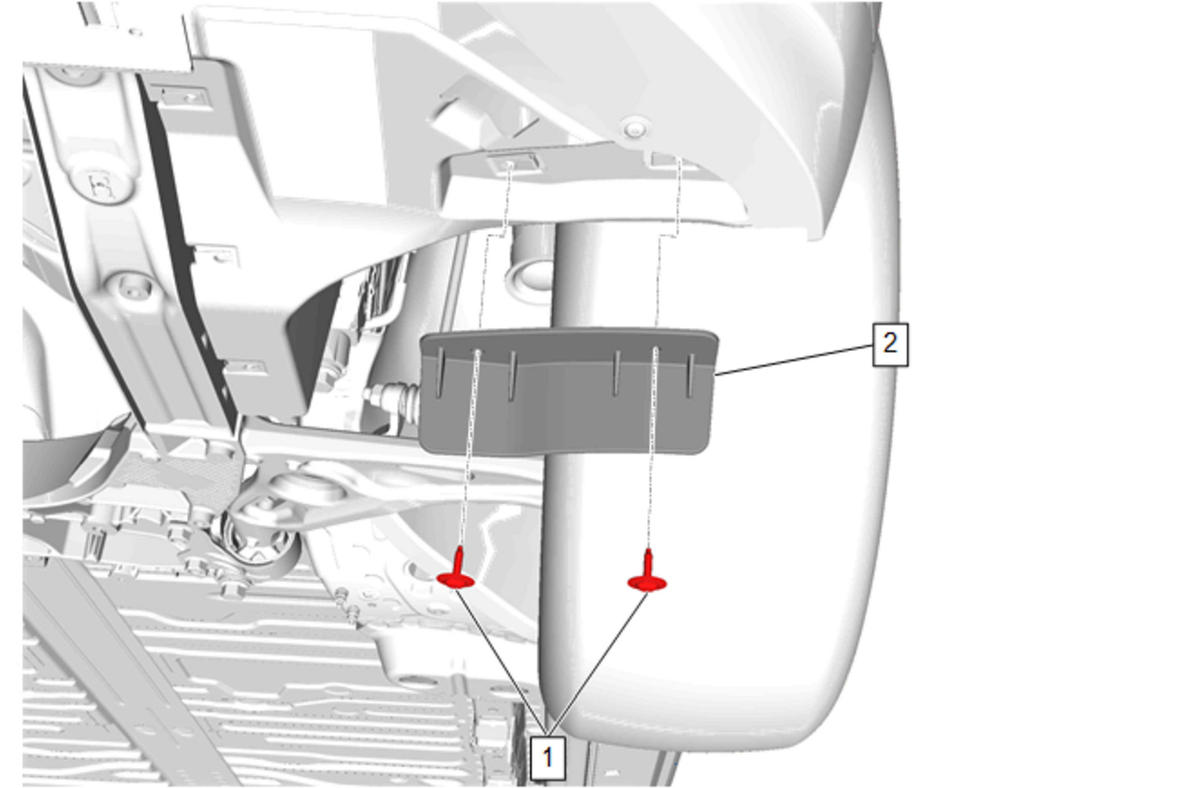

Front Tire Front Air Deflector (2) - Install
- Front Tire Front Air Deflector Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
- Lower the vehicle.
