Installation Procedure

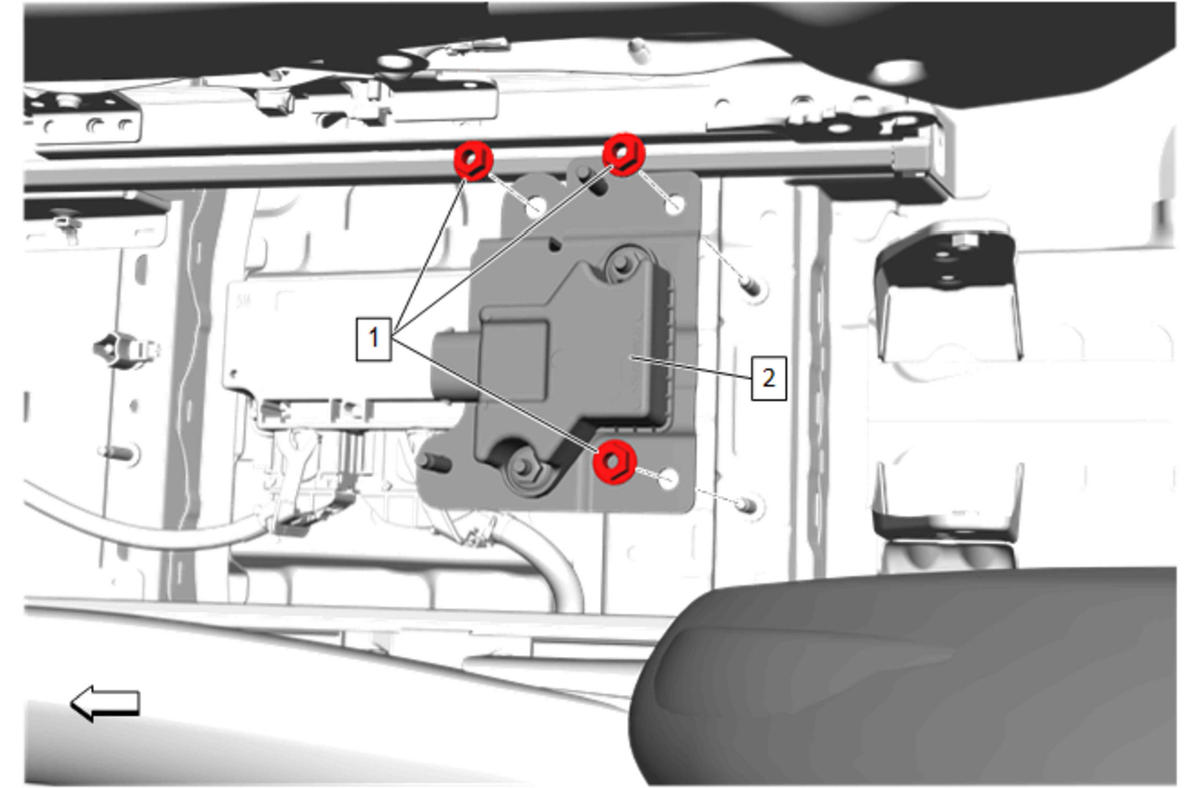

  1. GM5902989Courtesy of GENERAL MOTORS COMPANY

    Vehicle Dynamic Sensor (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Vehicle Dynamic Sensor Nut (1) - Install [3x] - Fastener Specifications

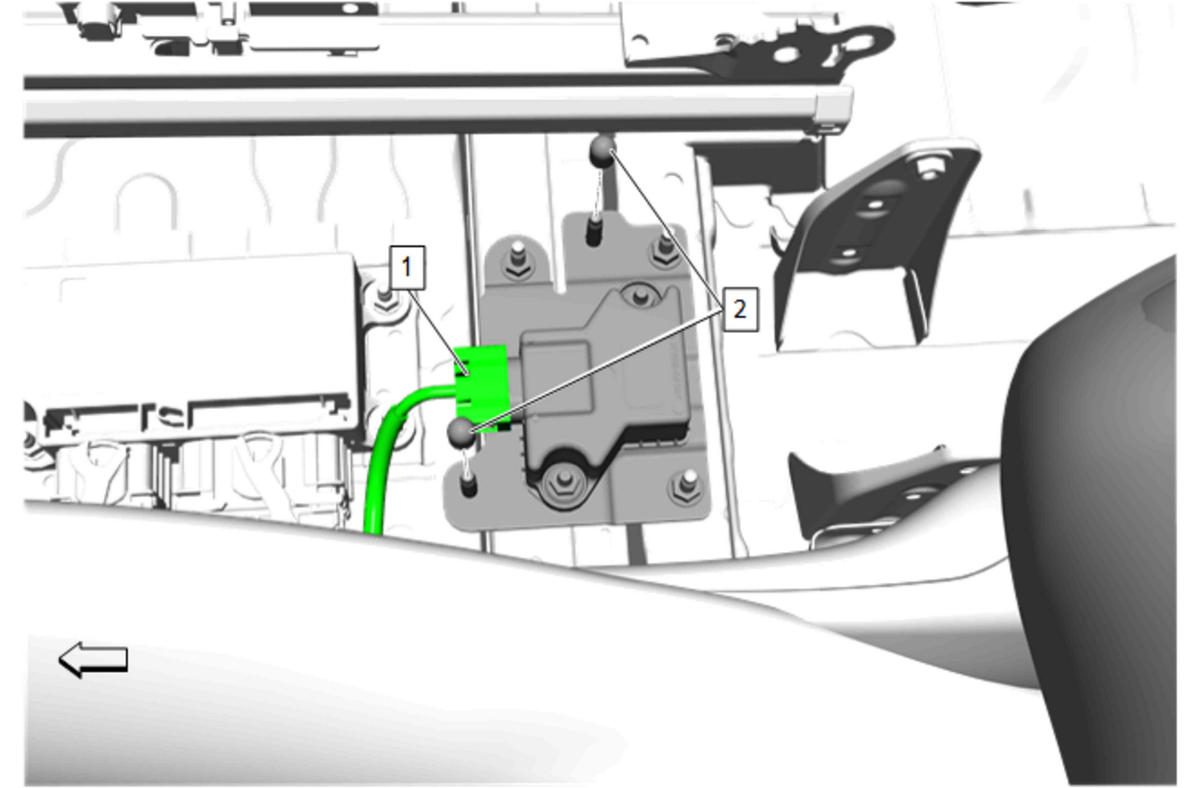

  3. GM5902988Courtesy of GENERAL MOTORS COMPANY

    Vehicle Dynamic Sensor Bracket Stud Cap (2) - Install [2x]

  4. Connect the electrical connector. (1)

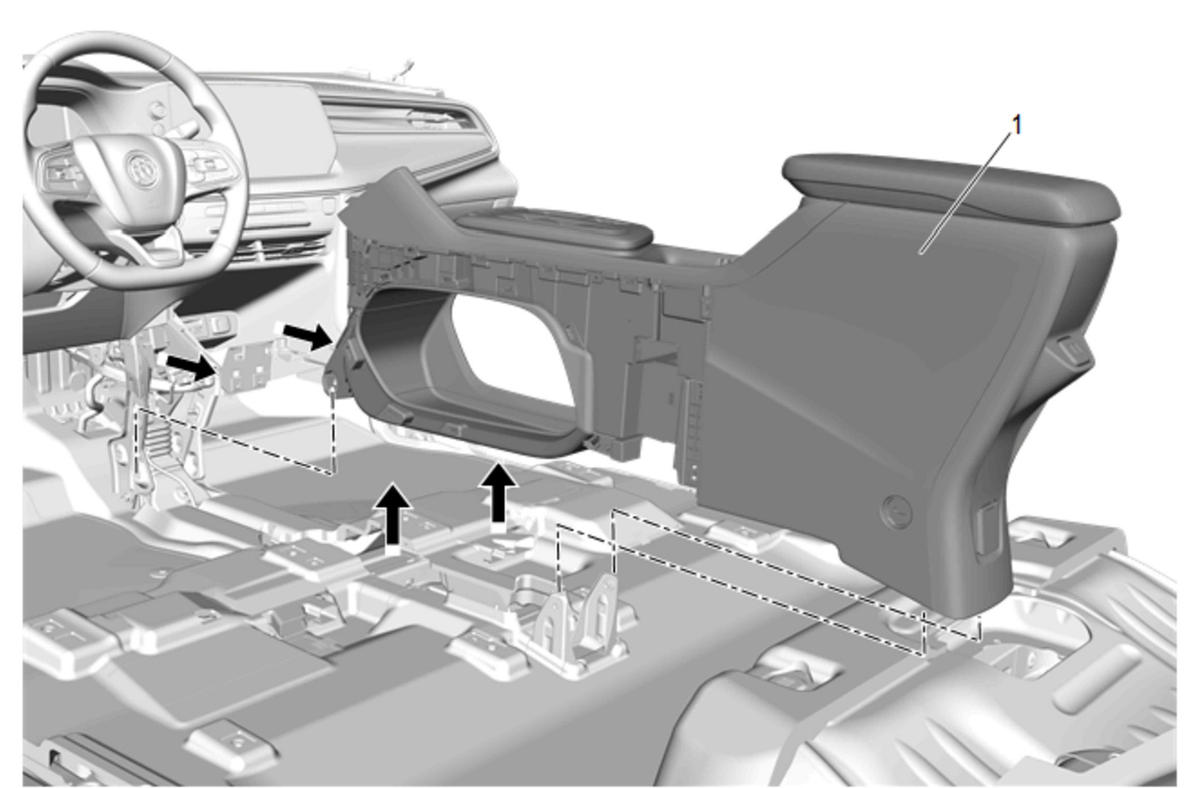

  5. GM5436032Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Removal and Installation .

  6. Enable the SIR System. SIR Disabling and Enabling
  7. Perform the vehicle yaw sensor learn. Vehicle Yaw Sensor Learn
