Fastener Specifications

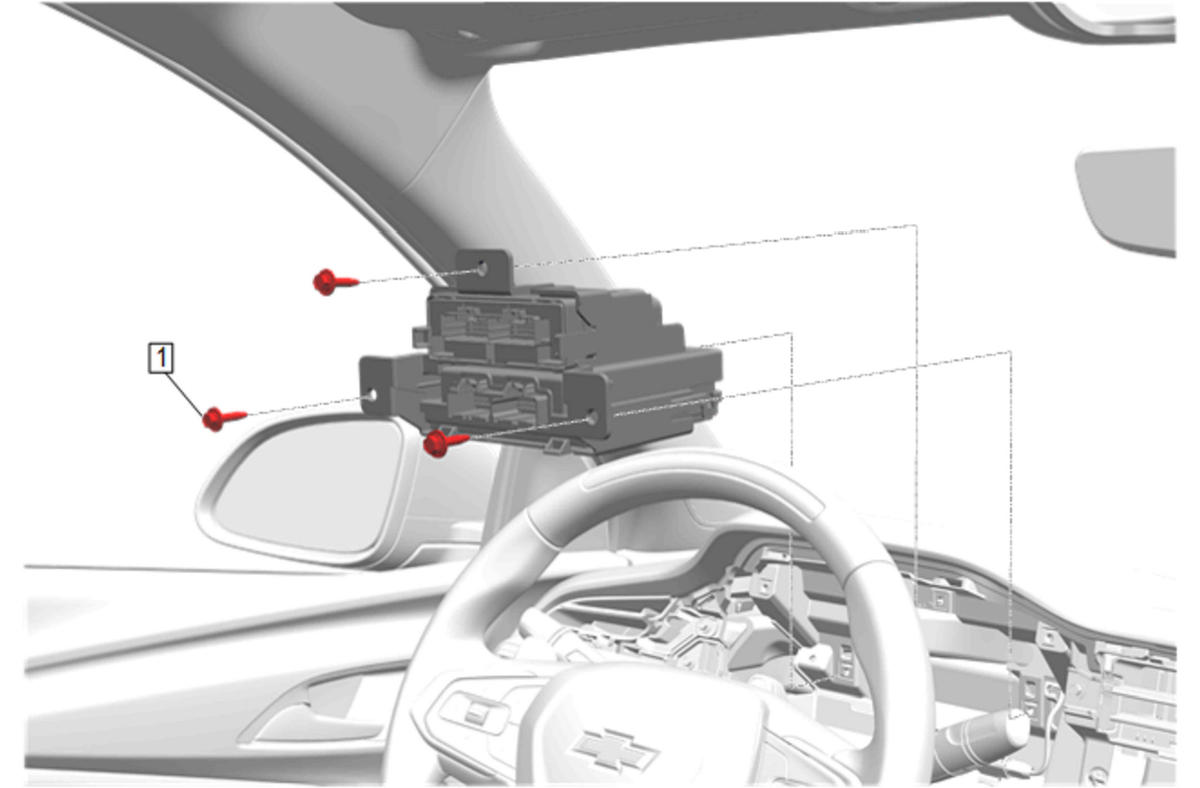

GM5773035Courtesy of GENERAL MOTORS COMPANY
Keyless Entry Control Module Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Keyless Entry Control Module Bracket Bolt [3x] - - 2.5 N.m (22 lb in) Keyless Entry Control Module Bracket Replacement
