Installation Procedure

WARNING: This page is about a different car, the 2022 Chevrolet Bolt EUV. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

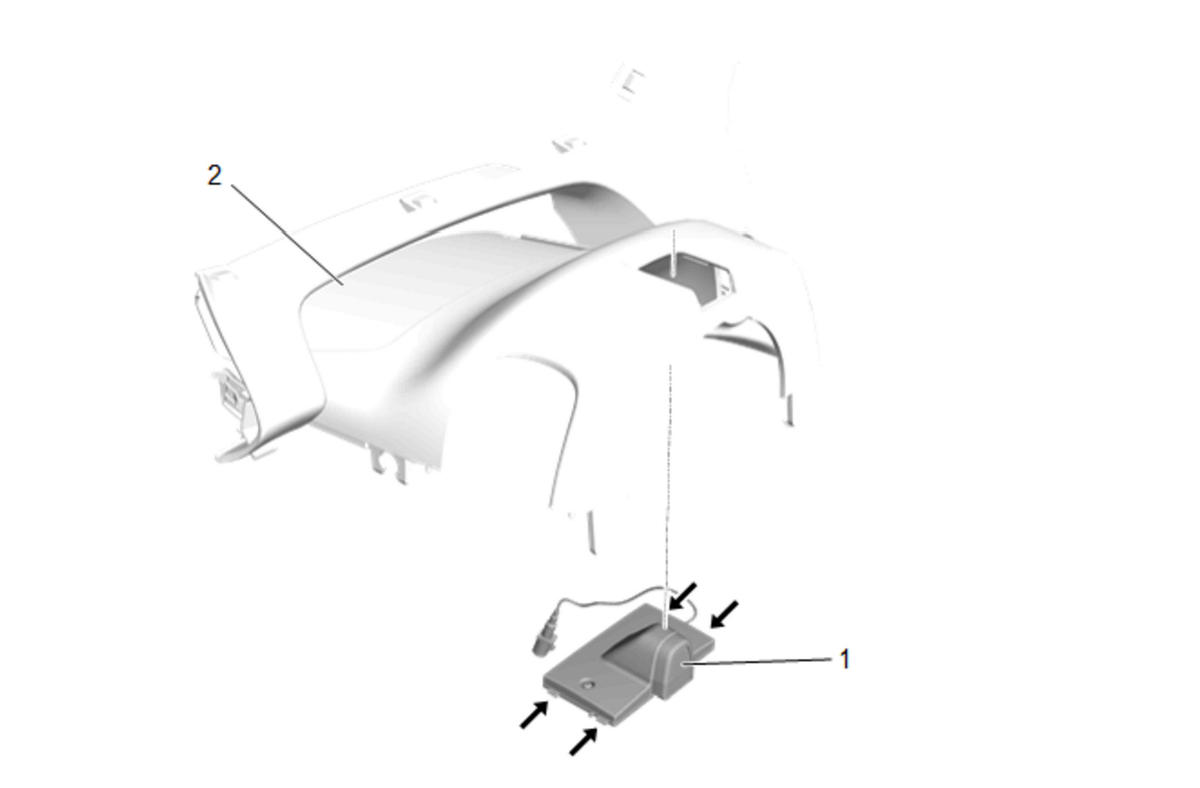

Driver Monitoring Camera (1) @ - Instrument Panel Steering Column Upper Trim Cover (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

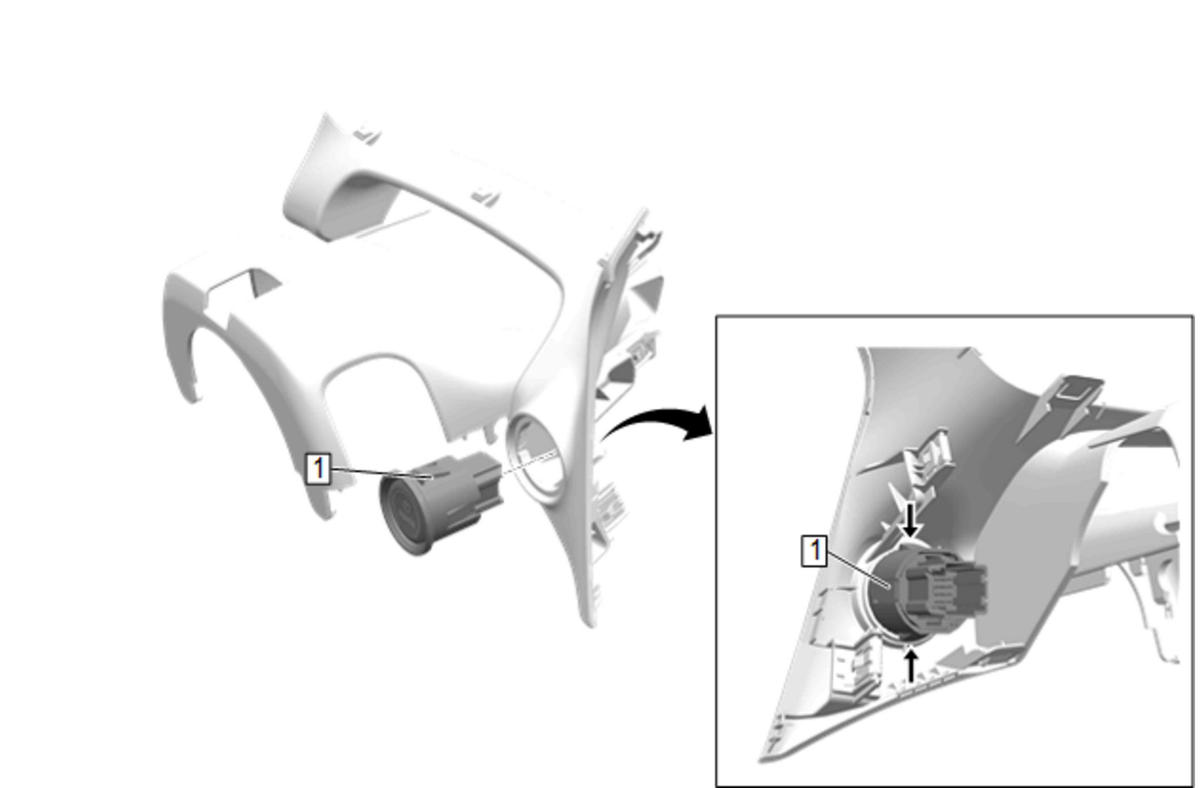

On/Off Vehicle Switch (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Instrument Panel Steering Column Upper Trim Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

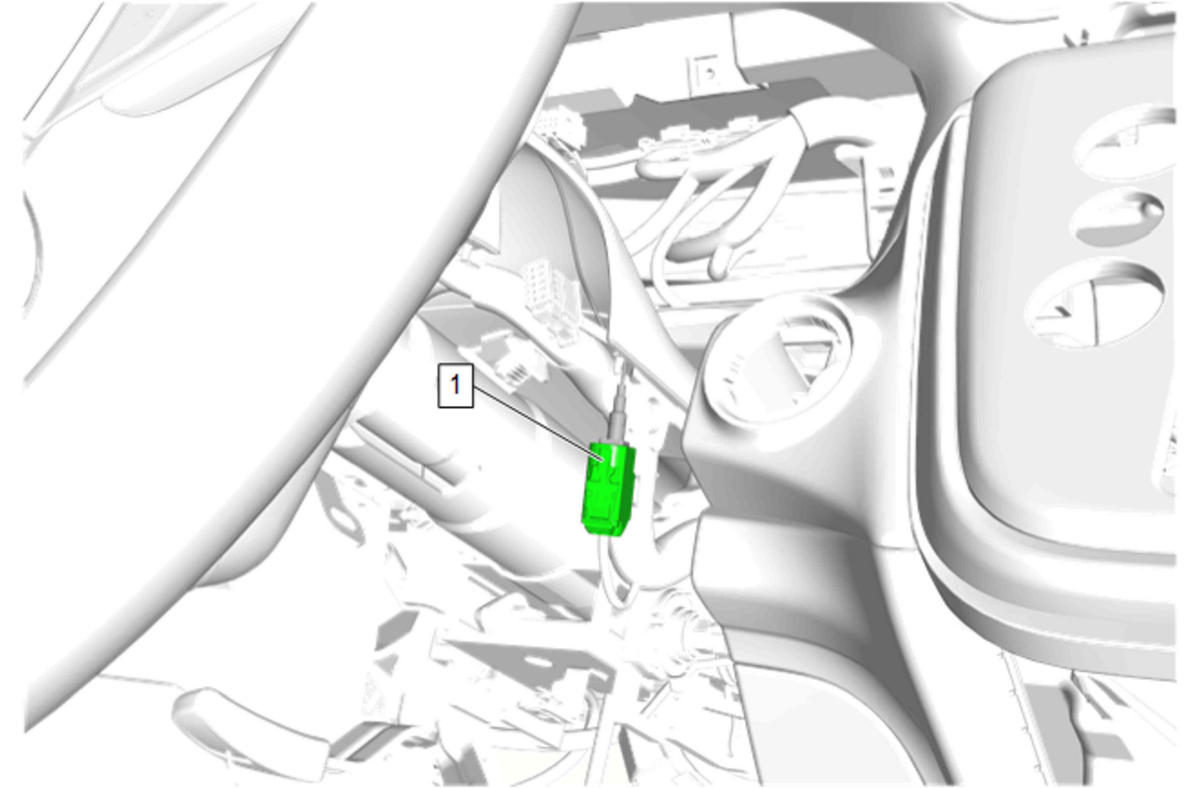

Connect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Steering Column Lower Trim Cover (2) - Install

CAUTION:

Refer to Fastener Caution .

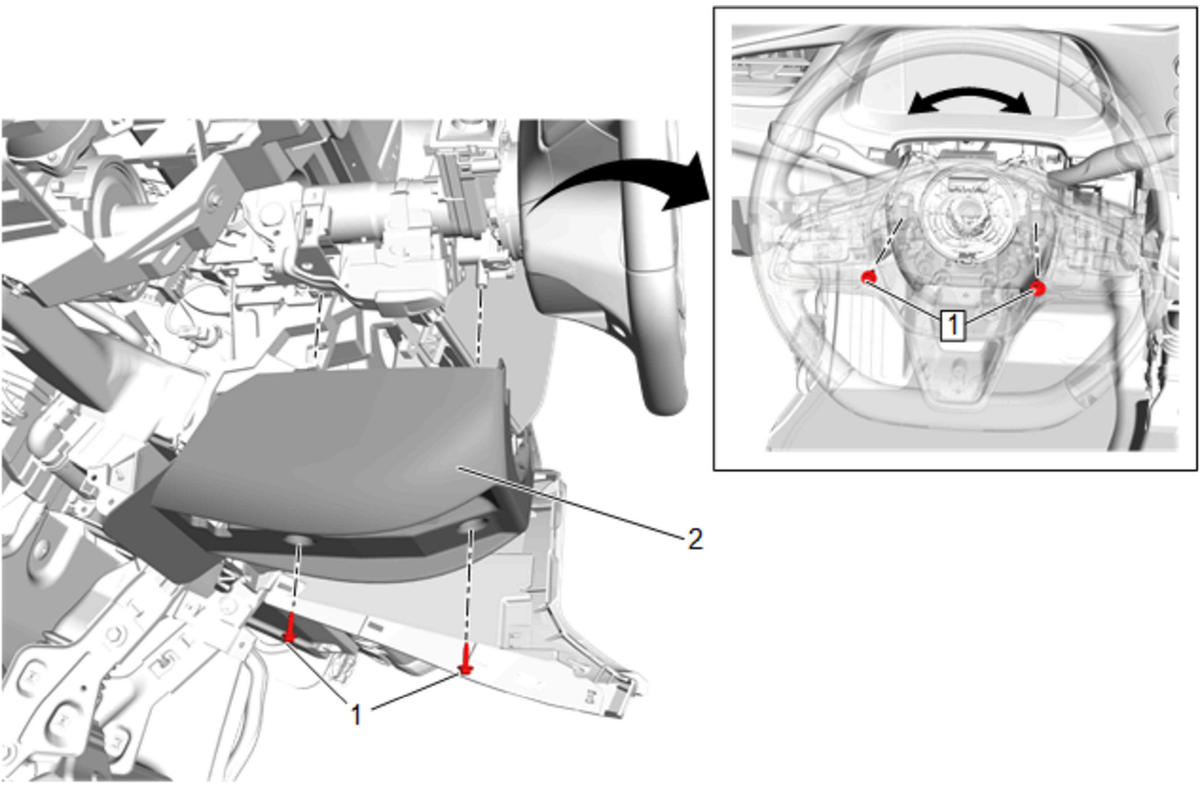

Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
