Fastener Specifications
NOTE:
Callouts items in the following chart represent components shown in graphic above.

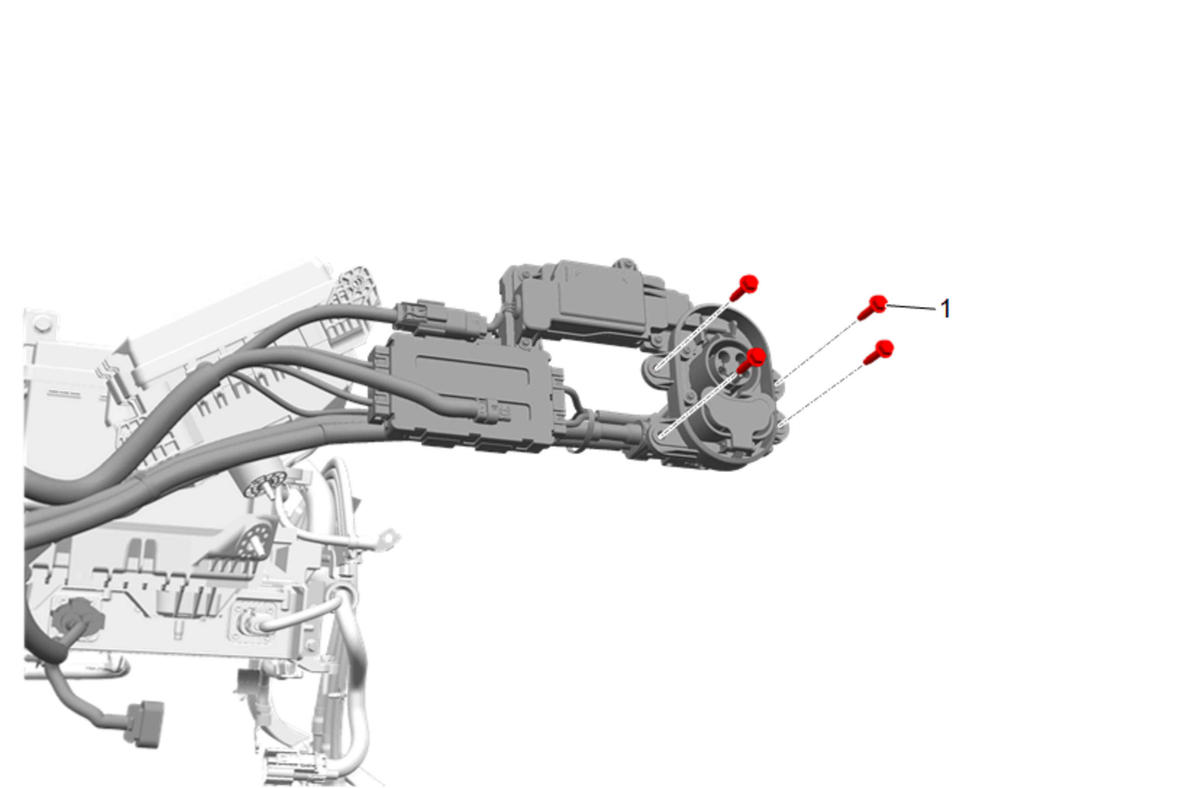

Drive Motor Battery Charger Receptacle
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drive Motor Battery Charger Receptacle Bolt [4x] | - | - | 9 N.m (80 lb in) | Drive Motor Battery Charger Receptacle Replacement |
NOTE:
Callouts items in the following chart represent components shown in graphic above.

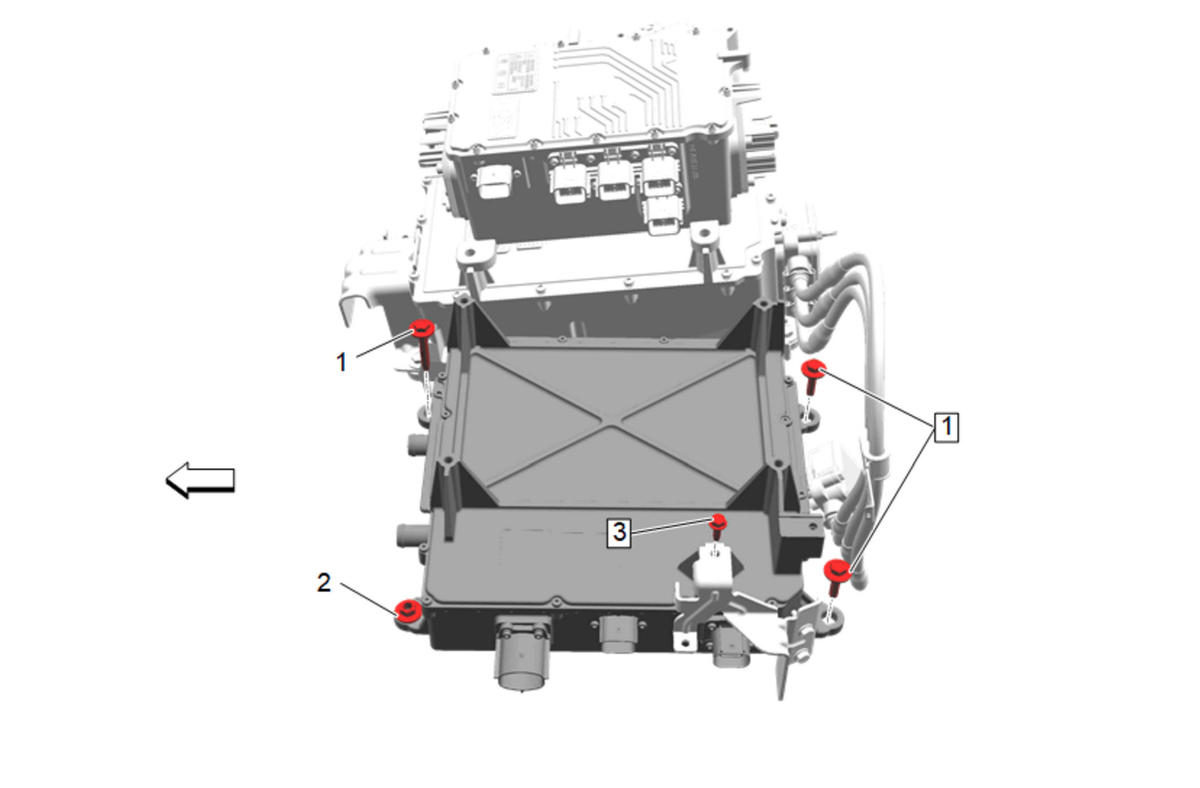

Drive Motor Battery Charger
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drive Motor Battery Charger Bolt [3x] | - | - | 22 N.m (16 lb ft) | Battery Charger Control Module Replacement |
| 2 | Drive Motor Battery Charger Nut | - | - | 22 N.m (16 lb ft) | Battery Charger Control Module Replacement |
| 3 | Engine Wiring Harness Bracket Bolt | - | - | 9 N.m (80 lb in) | Battery Charger Control Module Replacement |
NOTE:
Callouts items in the following chart represent components shown in graphic above.
Power Line Communication Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Power Line Communication Module Nut [4x] | - | - | 9 N.m (80 lb in) | Off-Board Charger Control Module Replacement |
