Serial Data Gateway Module Replacement

Courtesy of GENERAL MOTORS COMPANY

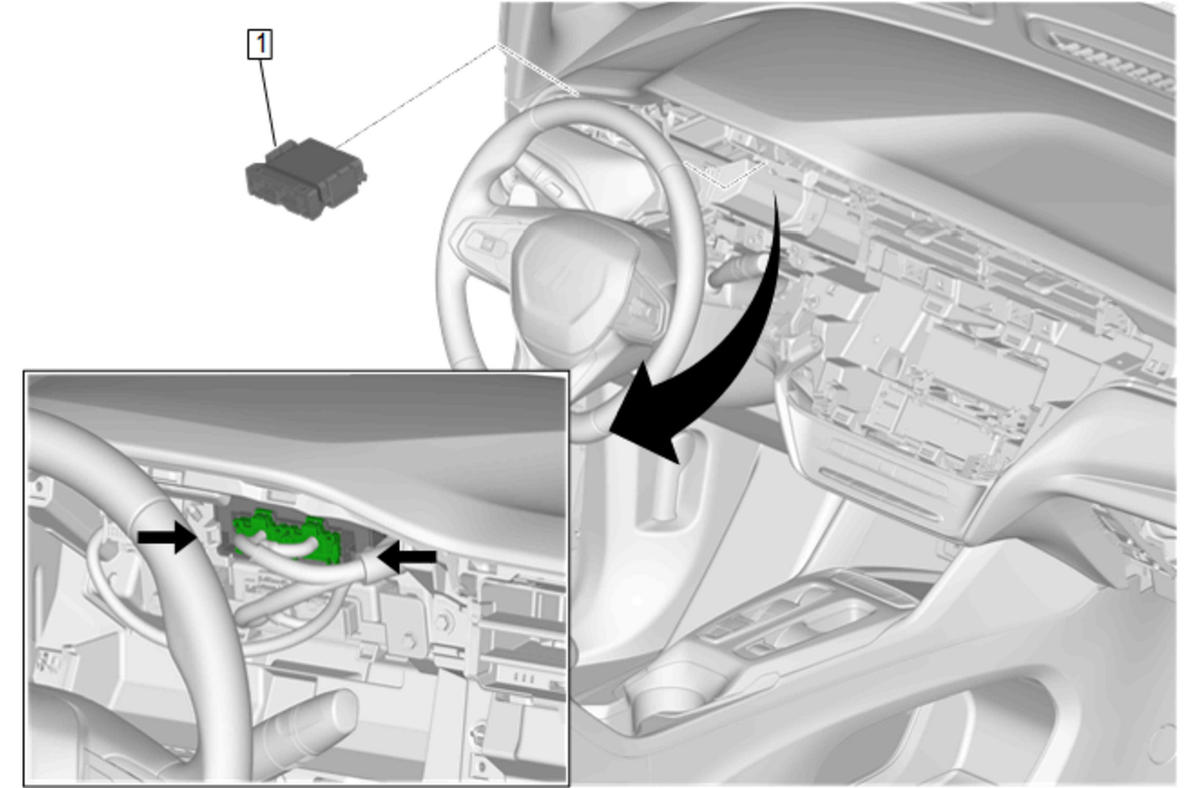

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Instrument Cluster Replacement Disconnect the electrical connectors.
1	Serial Data Gateway Module Procedure Release the retaining tabs. Perform any necessary programming and setup procedures: Control Module References

Callout

Component Name

Preliminary Procedures

Serial Data Gateway Module

Procedure

Release the retaining tabs.
Perform any necessary programming and setup procedures: Control Module References
