Pedestrian Alert Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

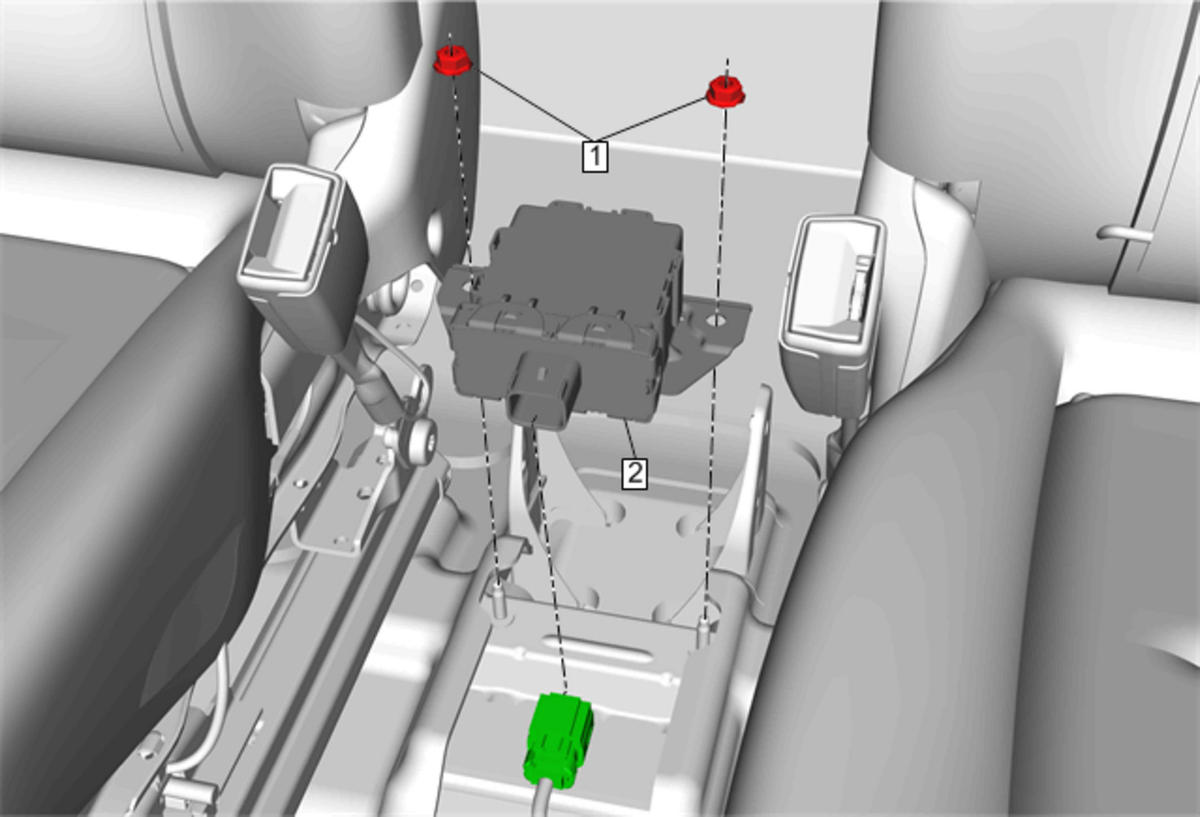

Callout	Component Name
Preliminary Procedure Front Floor Console Replacement
1	Pedestrian Sound Alert Module Bracket Nut [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Pedestrian Sound Alert Module Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Pedestrian Sound Alert Module Bracket Nut [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Pedestrian Sound Alert Module

Procedure

Disconnect the electrical connector.
Perform the necessary programming and setup procedure: Control Module References
