Installation Procedure

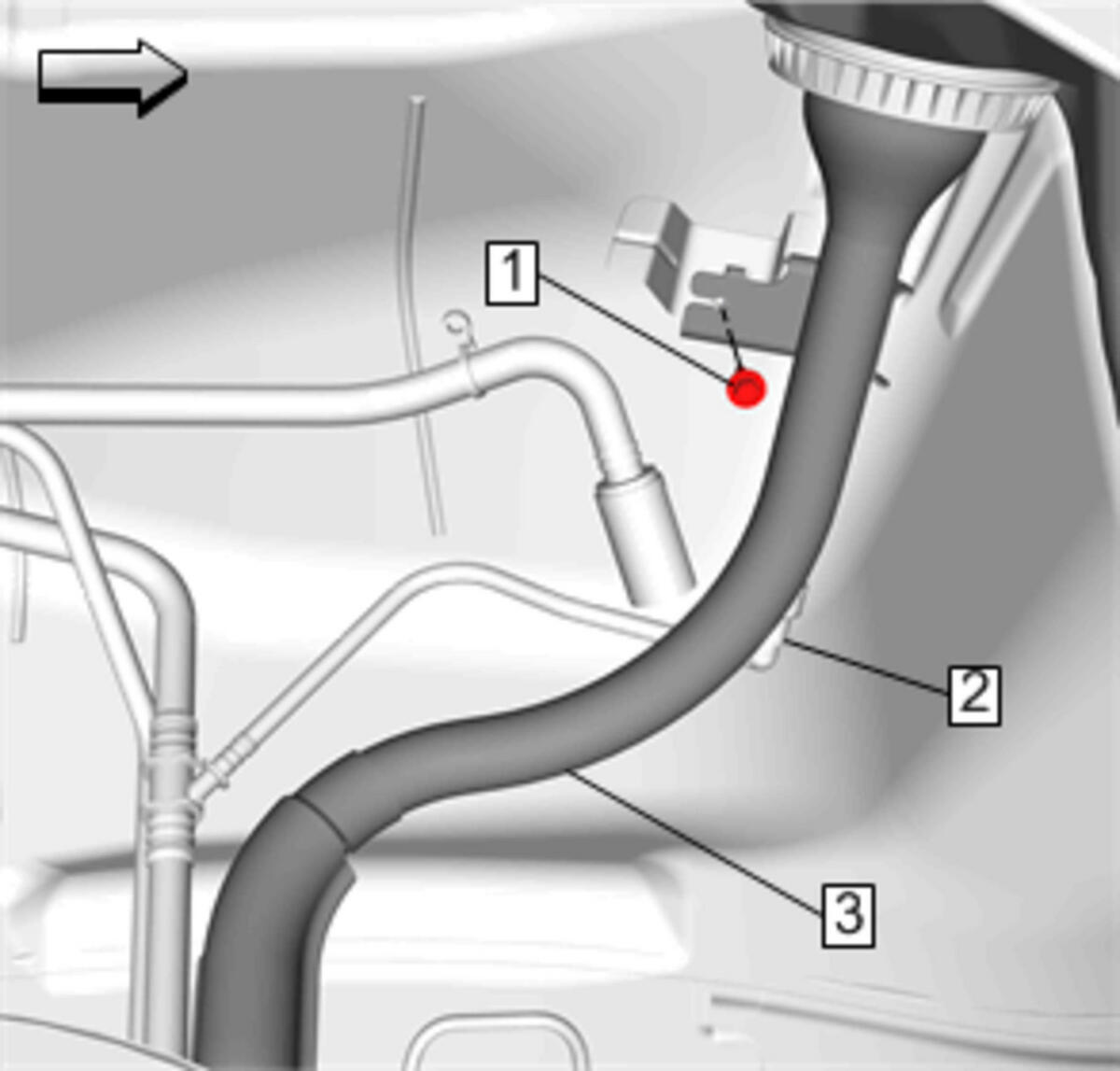

Fuel Tank Filler Pipe (3) - Install
- Fuel Tank Filler Pipe Bolt (1) @ Fuel Tank Filler Pipe (3) - Install 2.5 N.m (22 lb in)
- Evaporative Emission Canister Hose (2) @ Fuel Tank Filler Pipe (3) - Connect - Plastic Collar Quick Connect Fitting Service
Fuel Tank Filler Pipe Bolt (1) @ Fuel Tank Filler Pipe (2) - Install 9 N.m (80 lb in)

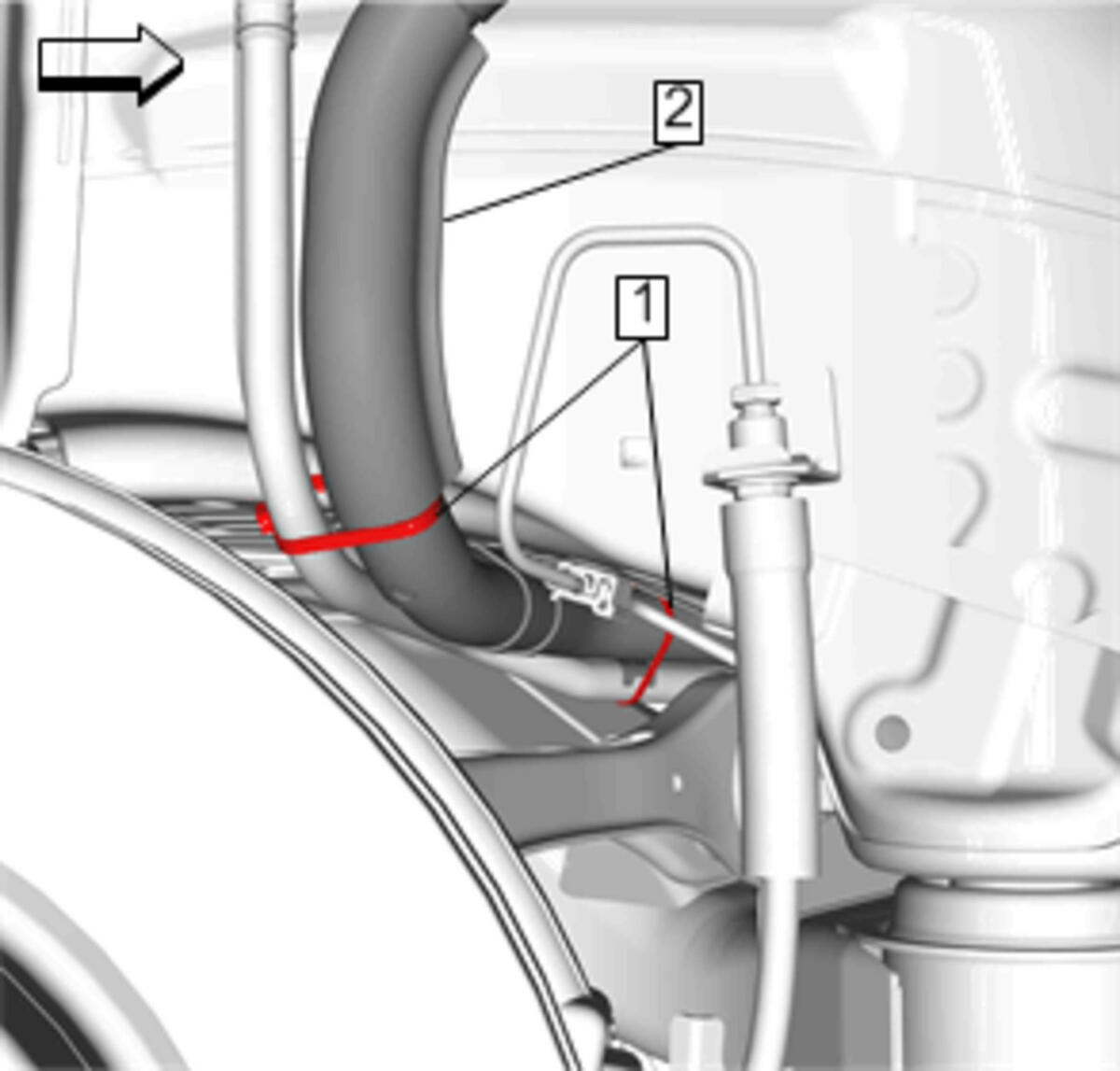

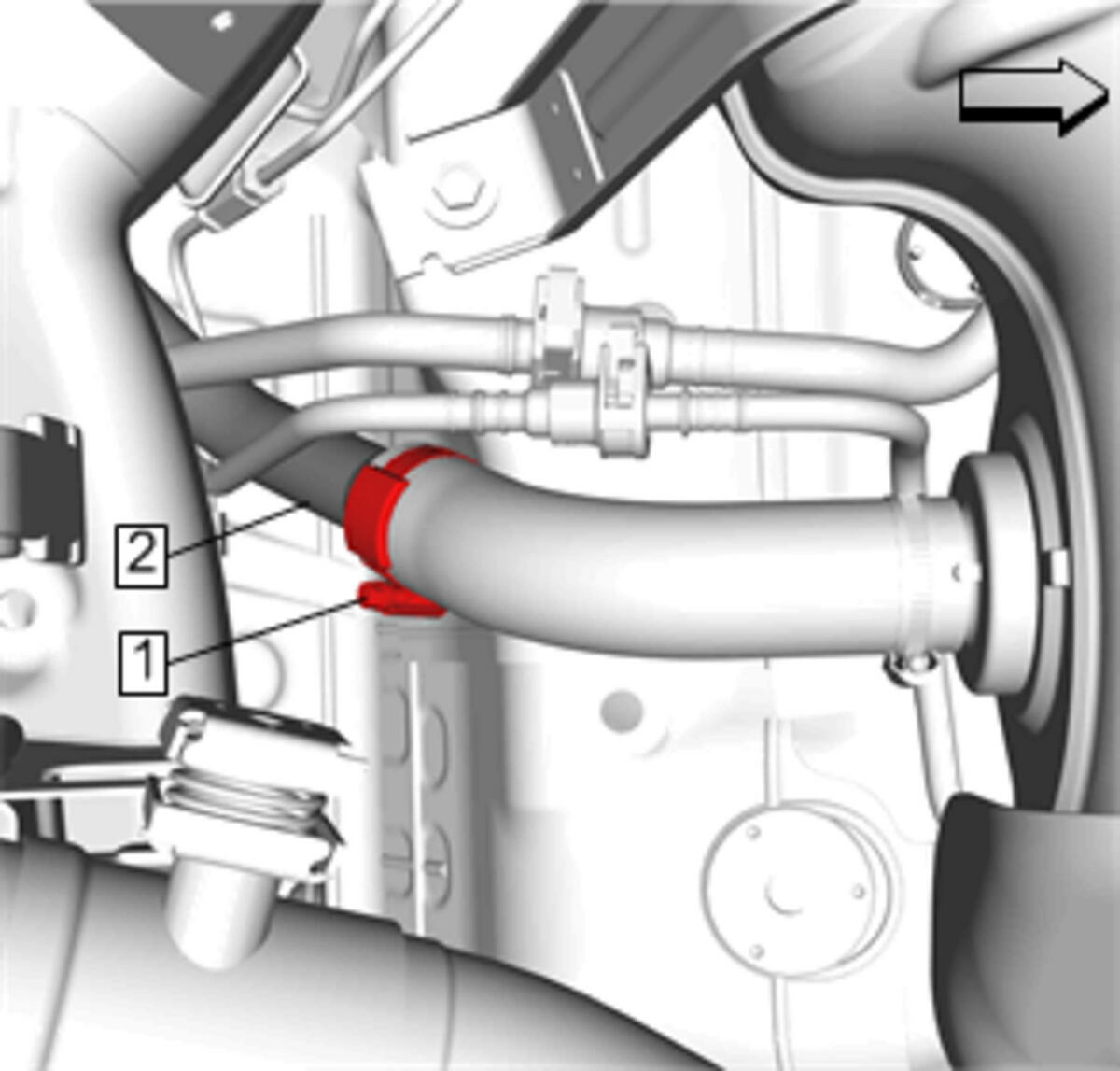

Evaporative Emission Canister Filter Hose Strap(1) @ Fuel Tank Filler Pipe (2) - Install NEW [2x]

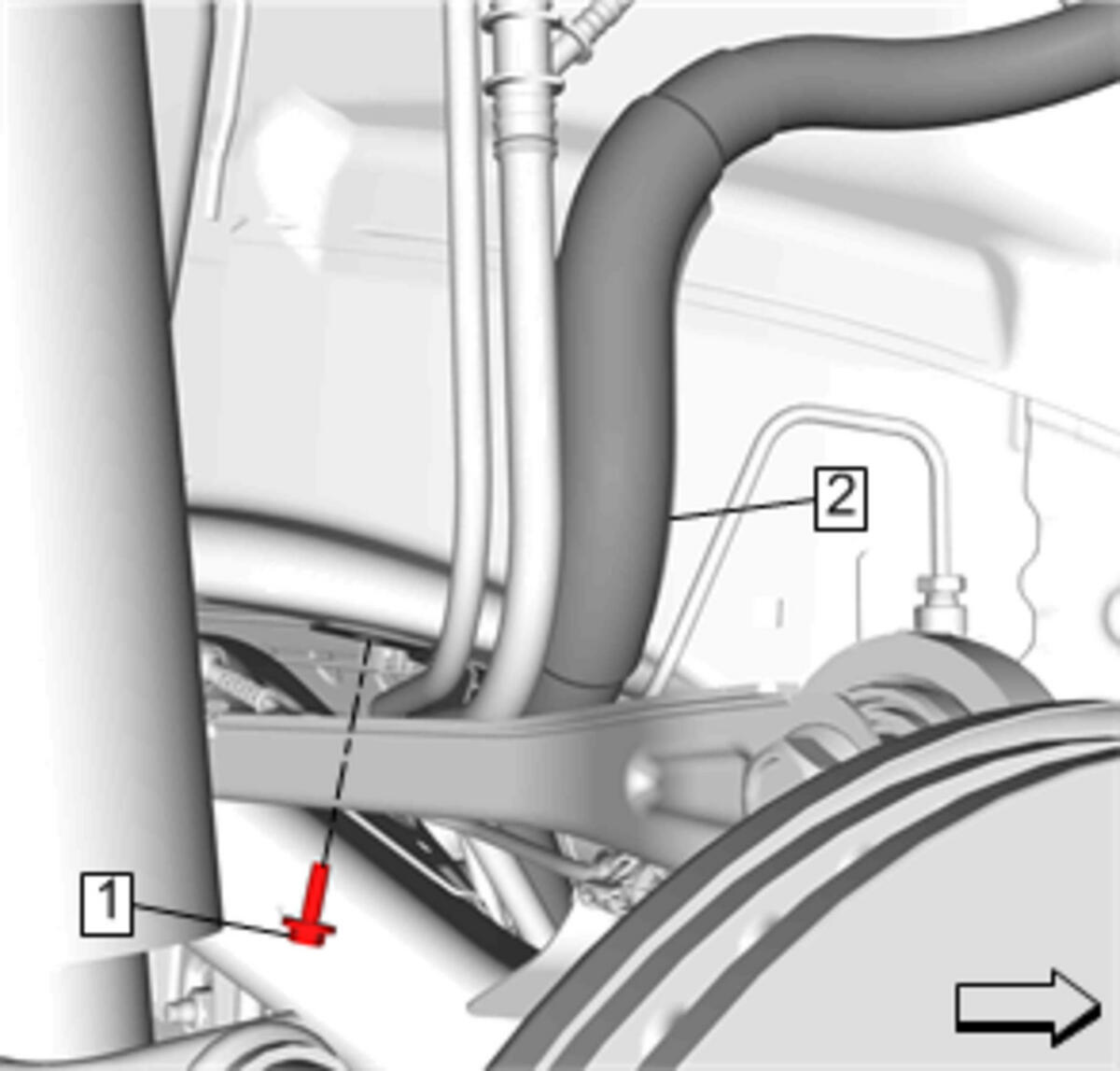

Fuel Tank Filler Pipe (2) - Install
- Fuel Tank Filler Pipe Clamp (1) - Install 3.5 N.m (31 lb in)
- Raise the rear suspension cradle back into position.

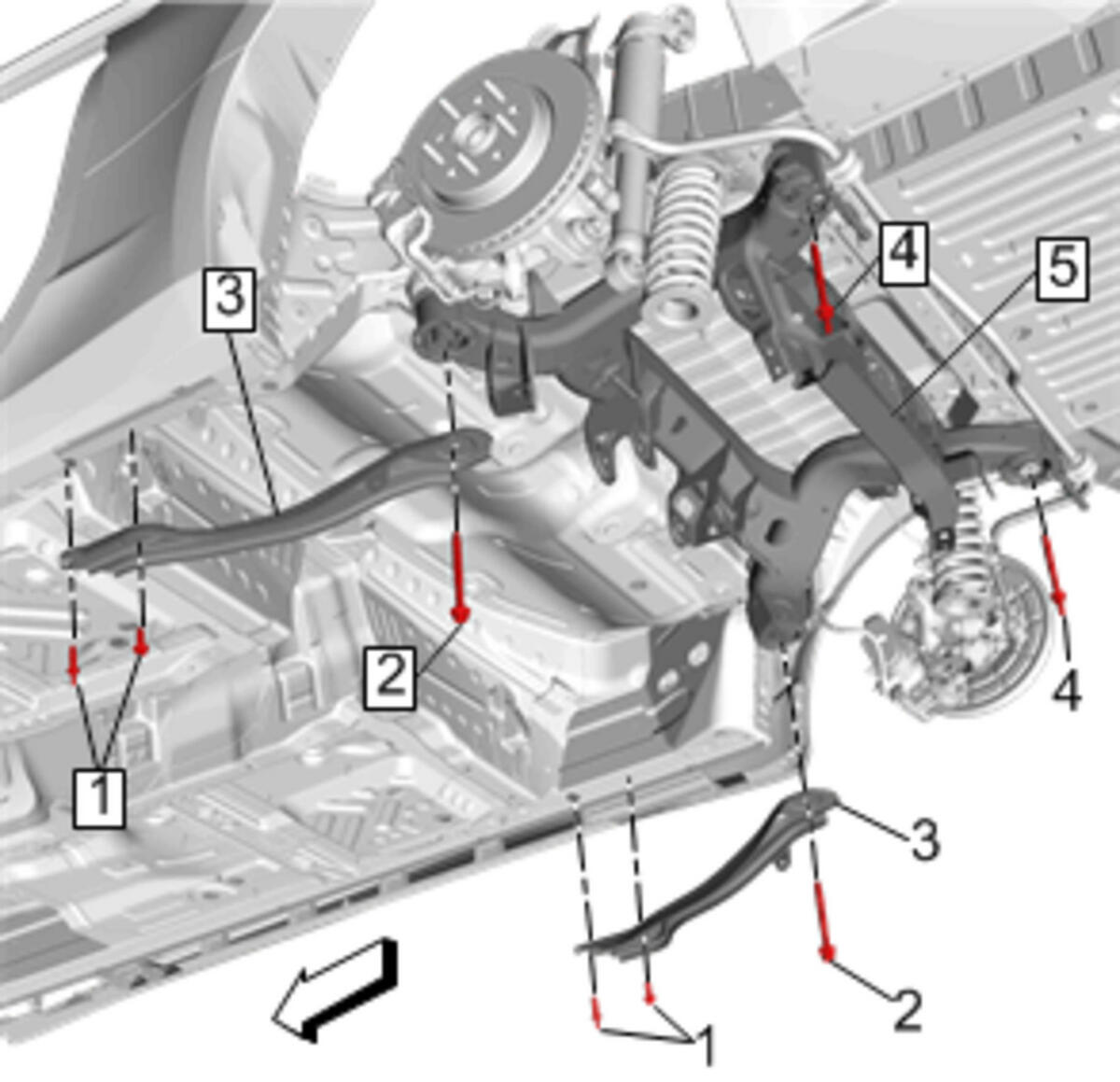

Rear Suspension Cradle Bolt - Right Side (4) - Install NEW bolts. - Rear Suspension Cradle Replacement (LTG)
Rear Suspension Cradle Bolt - Left Side (4) - Install NEW bolts. - Rear Suspension Cradle Replacement (LTG)

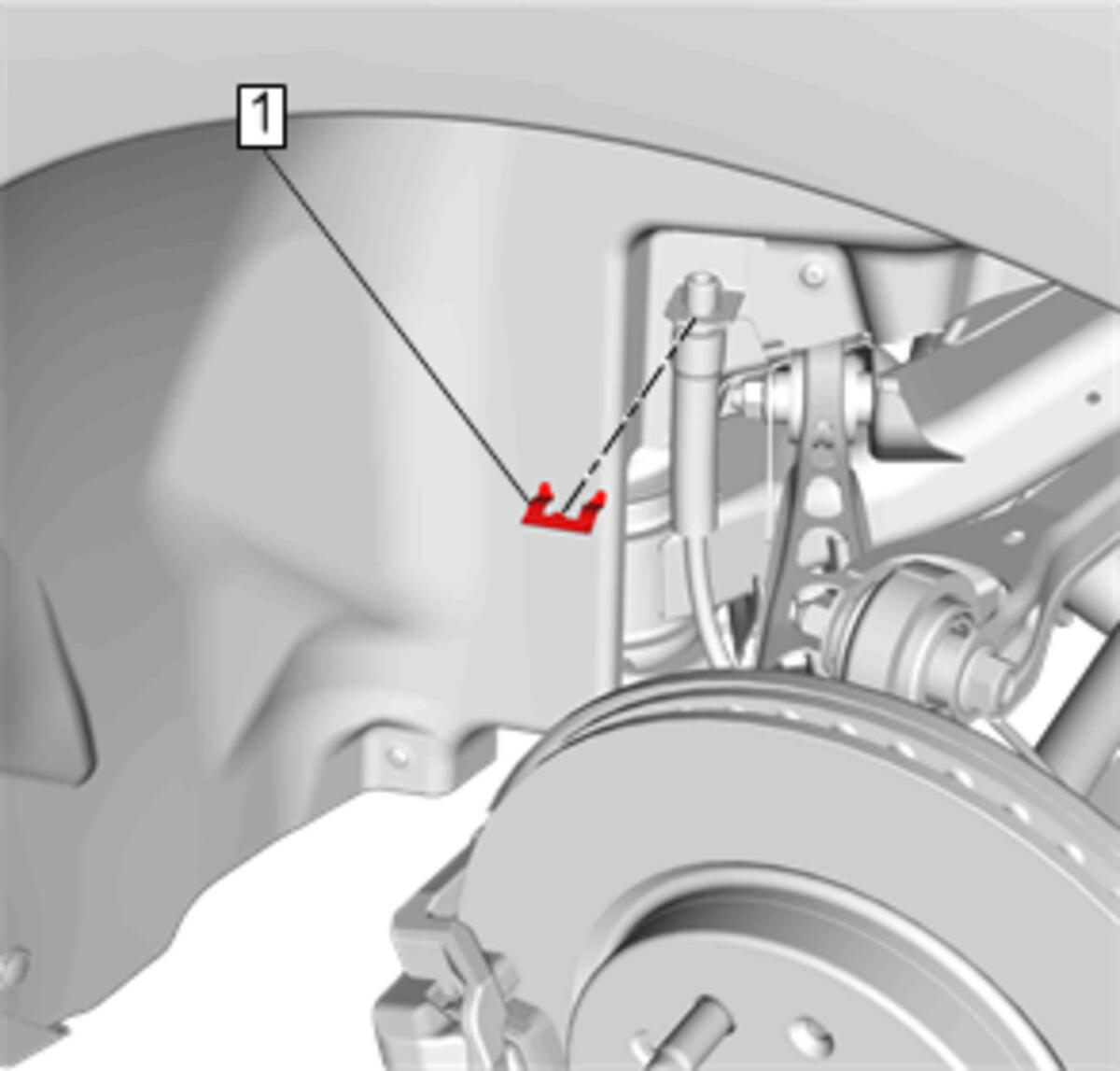

Brake Hose Retainer - Right Side (1) - Install - Rear Brake Hose Replacement (JL9, J55) , or Rear Brake Hose Replacement (J6G, J6H)

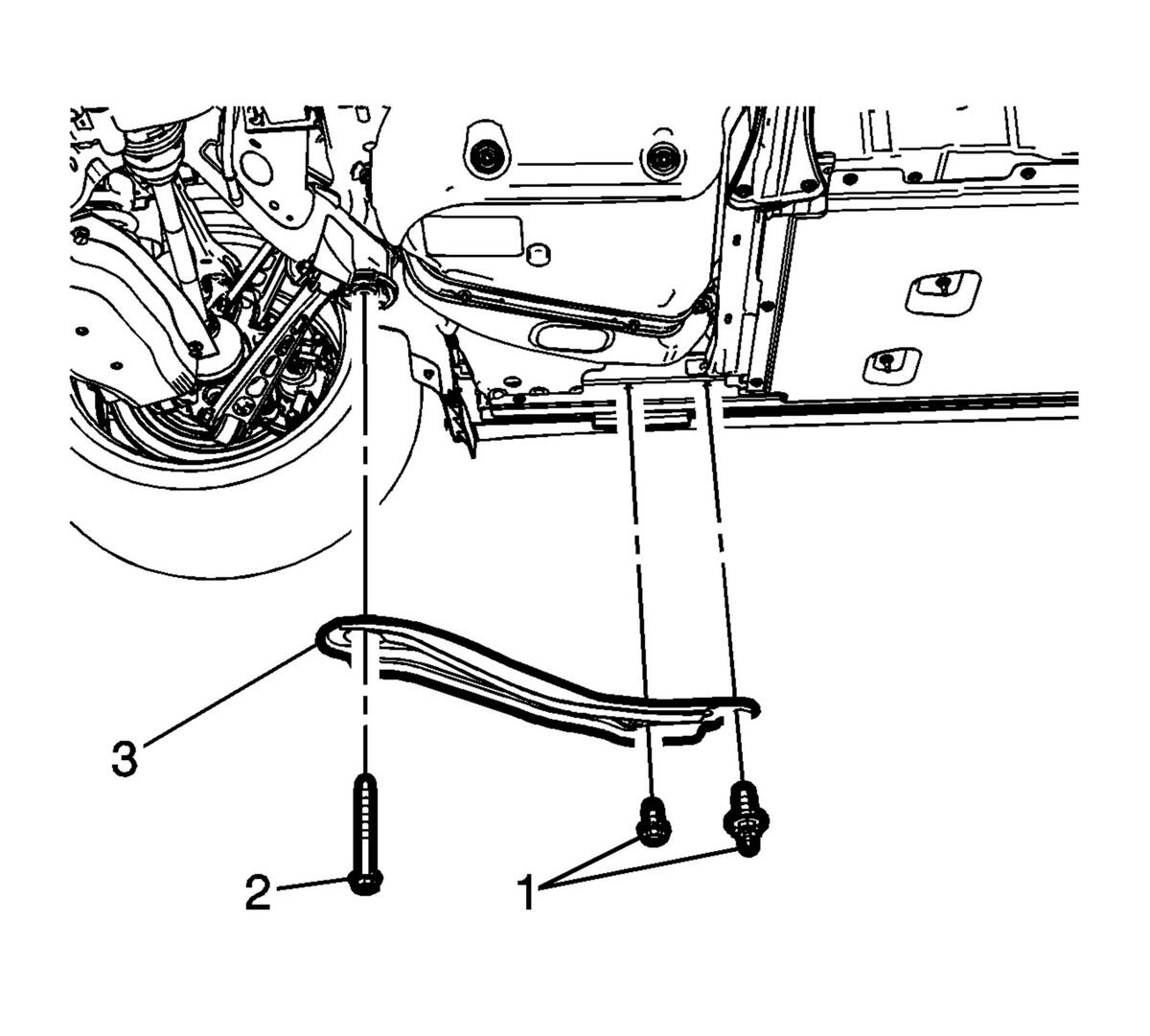

Rear Suspension Bracket - Front Right Side (3) - Install - Rear Suspension Bracket Replacement (Rear (Coupe)) , or Rear Suspension Bracket Replacement (Rear (Convertible))

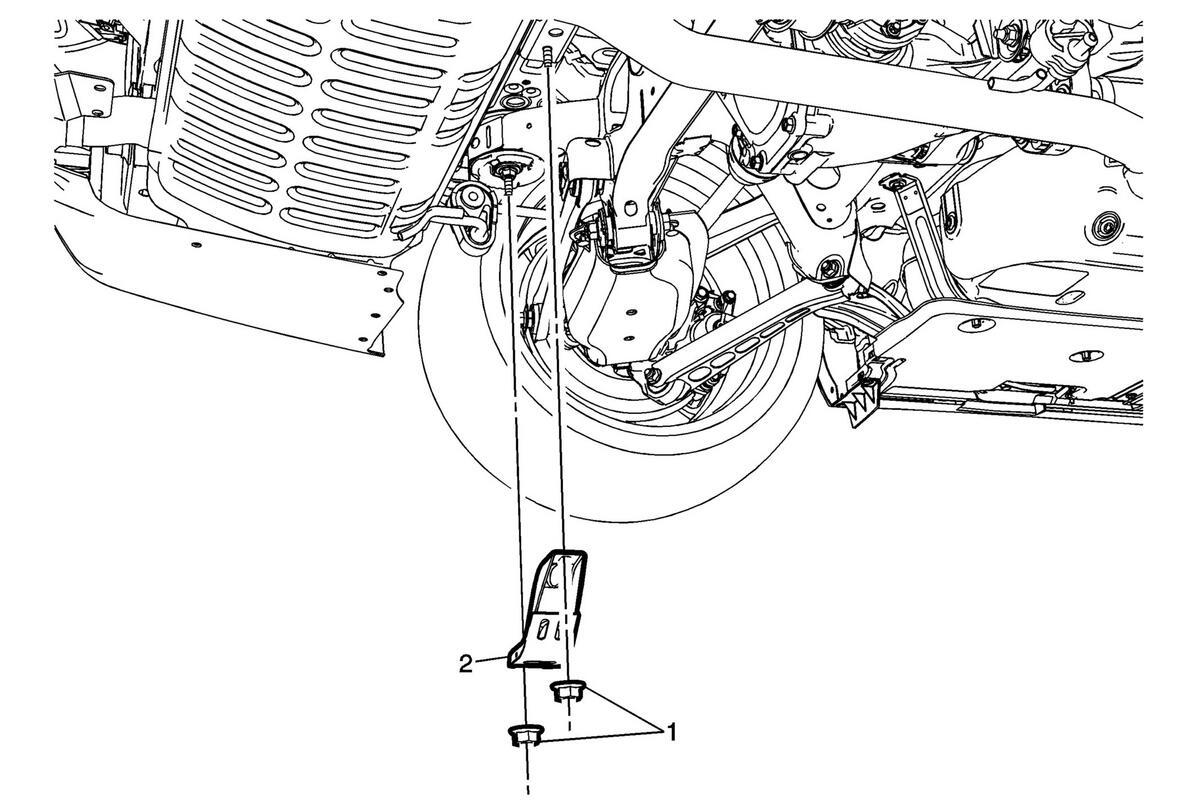

Rear Suspension Bracket - Rear (2) - Install [2x] - Rear Suspension Bracket Replacement (Rear (Coupe)) , or Rear Suspension Bracket Replacement (Rear (Convertible))

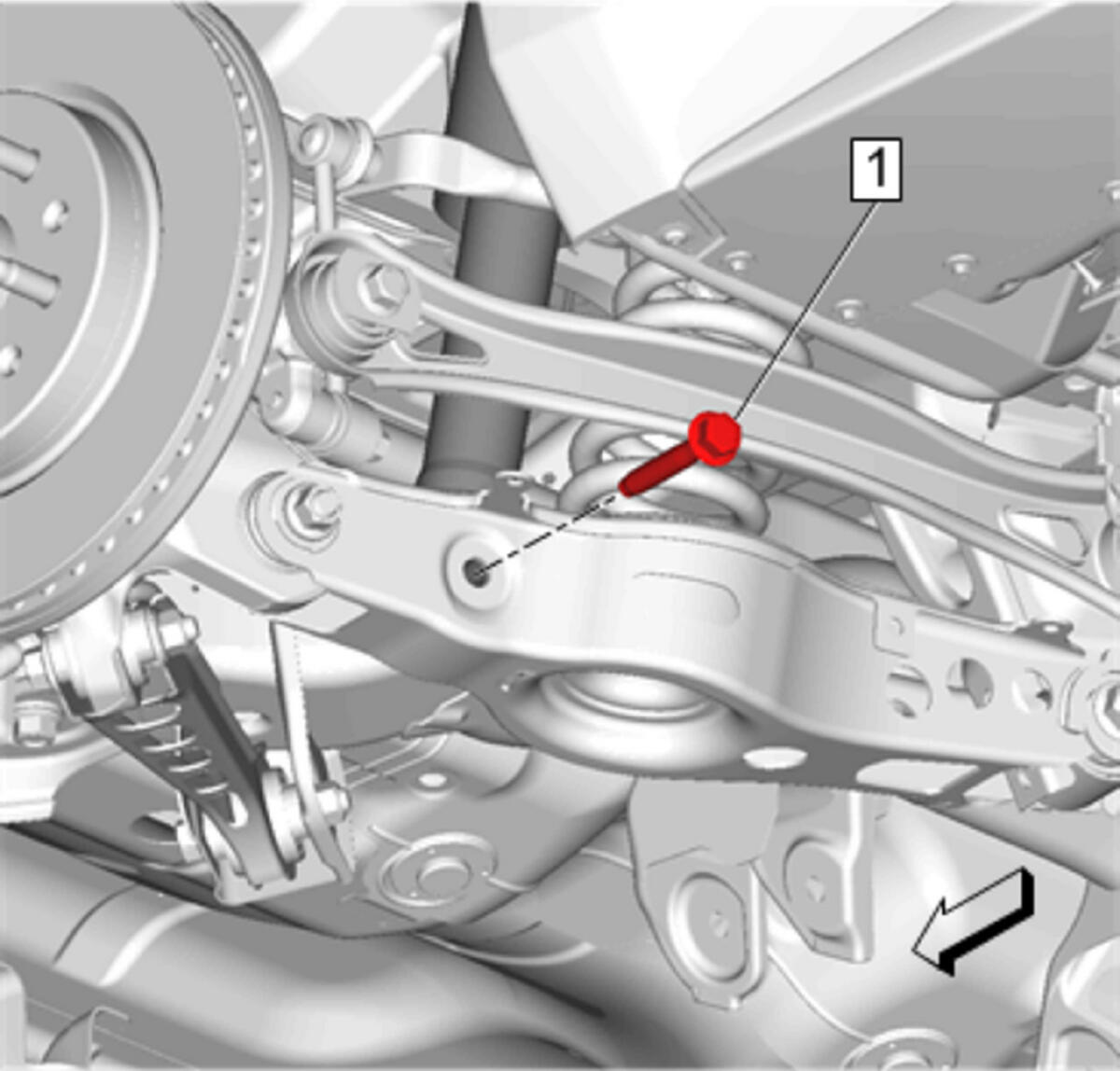

Lower Rear Shock Bolt - Right Side (1) - Install - Shock Absorber Replacement
- Rear Wheelhouse Liner Replacement , or Rear Wheelhouse Liner Replacement (ZL1) - Install
- Fuel Tank Filler Pipe Housing Replacement - Install
- Lower the vehicle.
Refer to Fastener Caution .
