Control Units/Timers
CONTROL UNITS/TIMERS LOCATION
| Component | Location |
|---|---|
| Chime Warning Module | Above glove box under dash. |
| Intermittent Wiper Control Unit | On left lower reinforcement. |

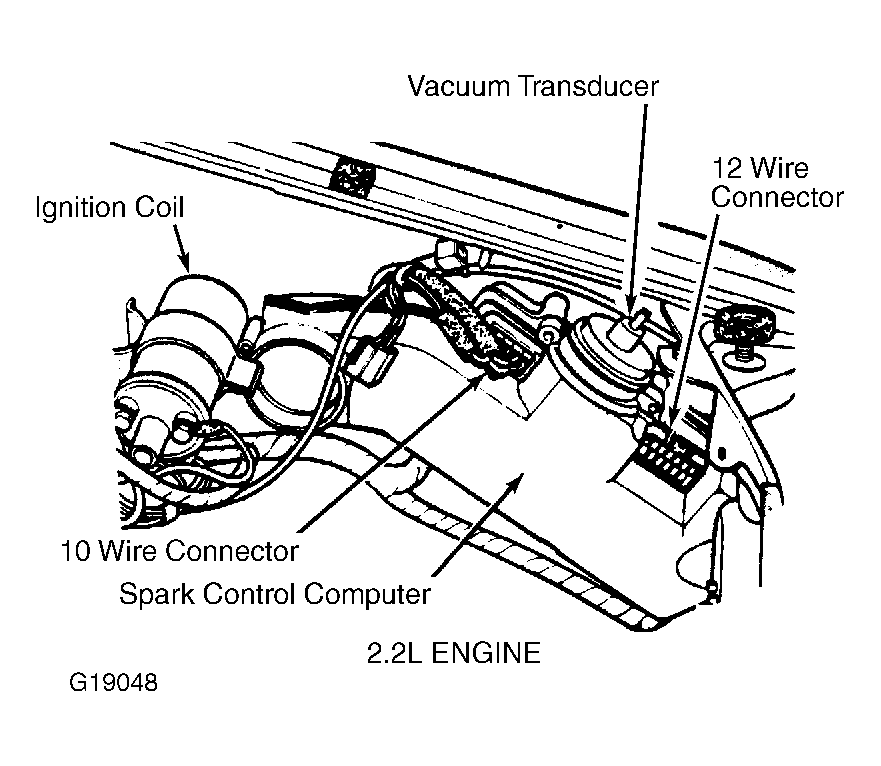

| Spark Control Computer (2.2L) | Near ignition coil. See Figure. |

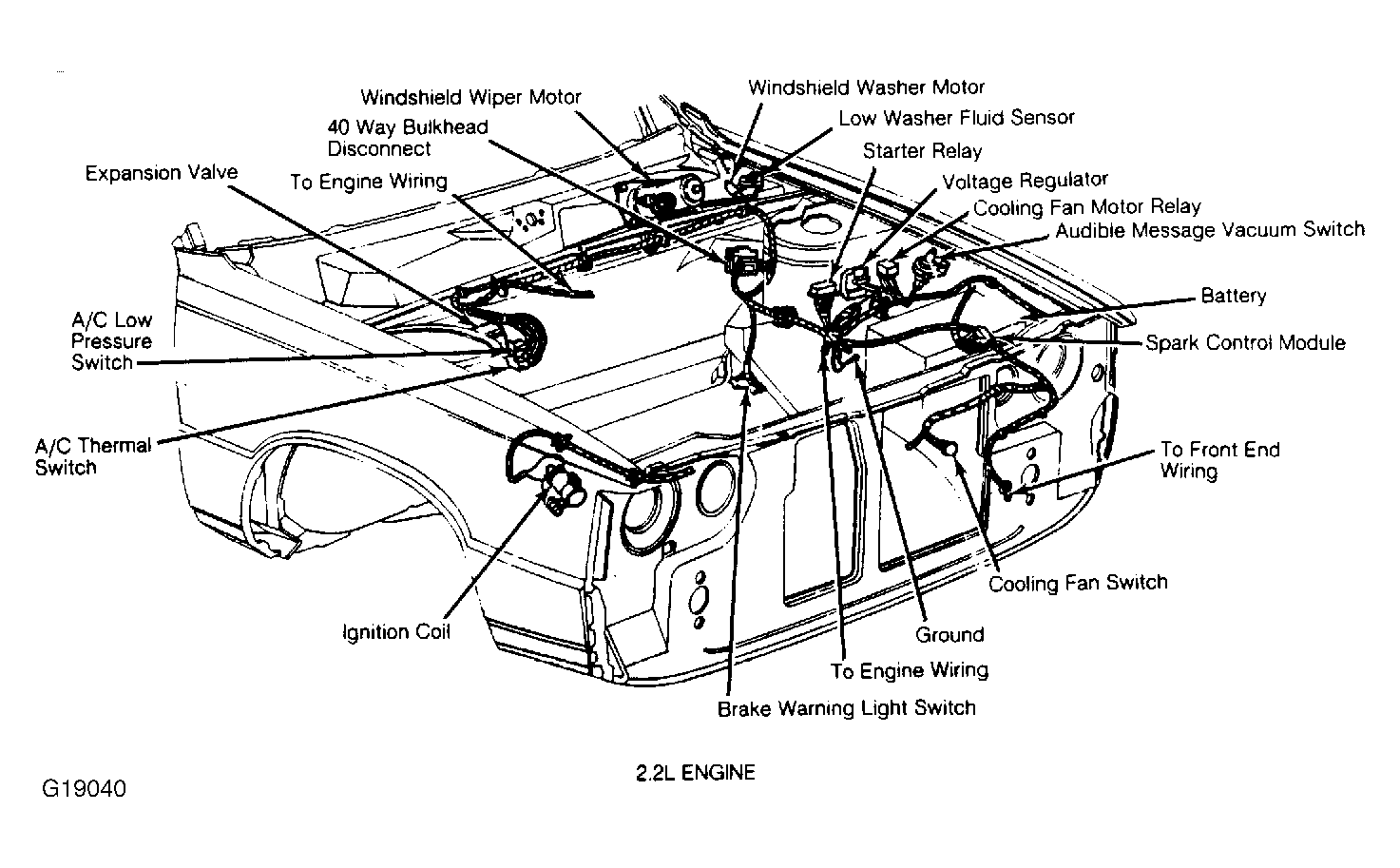

| Spark Control Module (2.2L) | In front of battery. See Figure. |

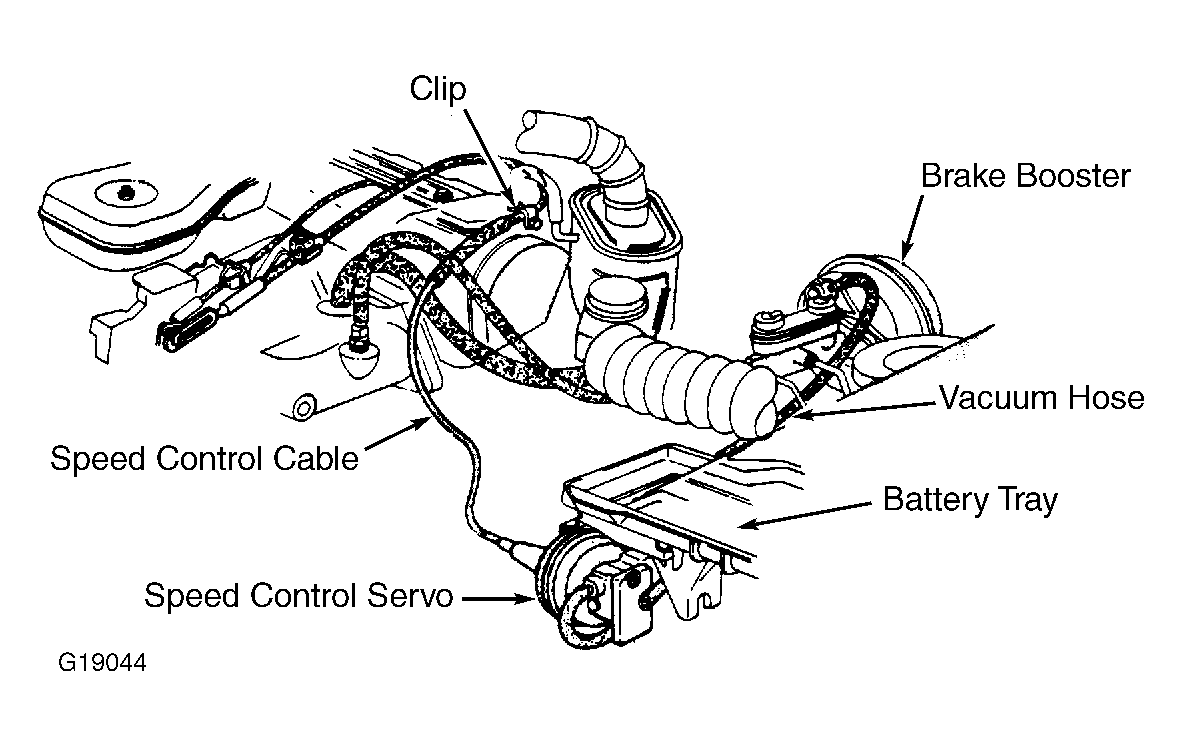

| Speed Control Servo | On bottom of battery tray. See Figure. |
