Refrigerant Temperature Sensor: Locations

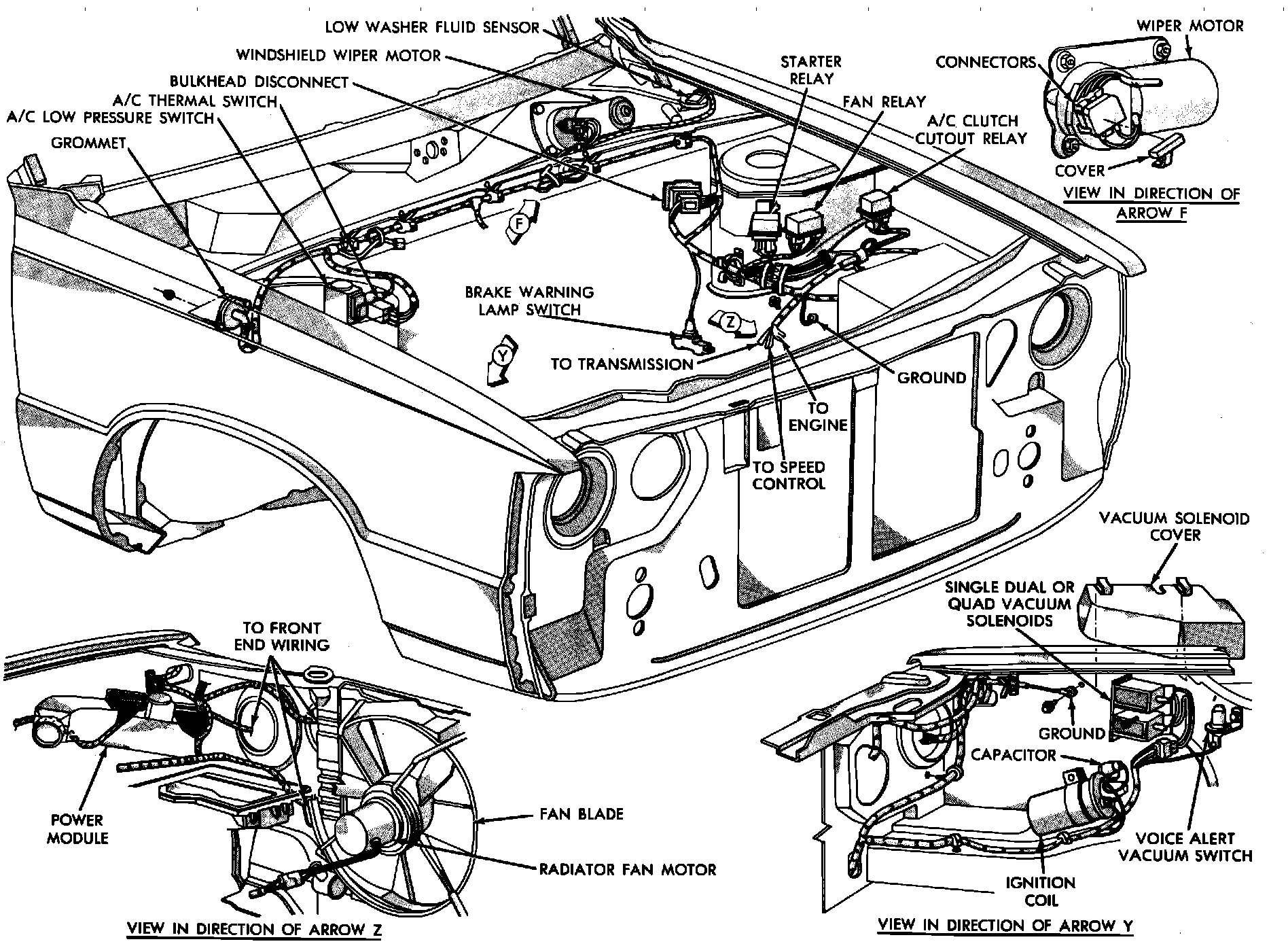

Engine Compartment Electrical Components.:




RH Rear Corner Of Engine Compartment

Applicable to: 1982-83 2.2L

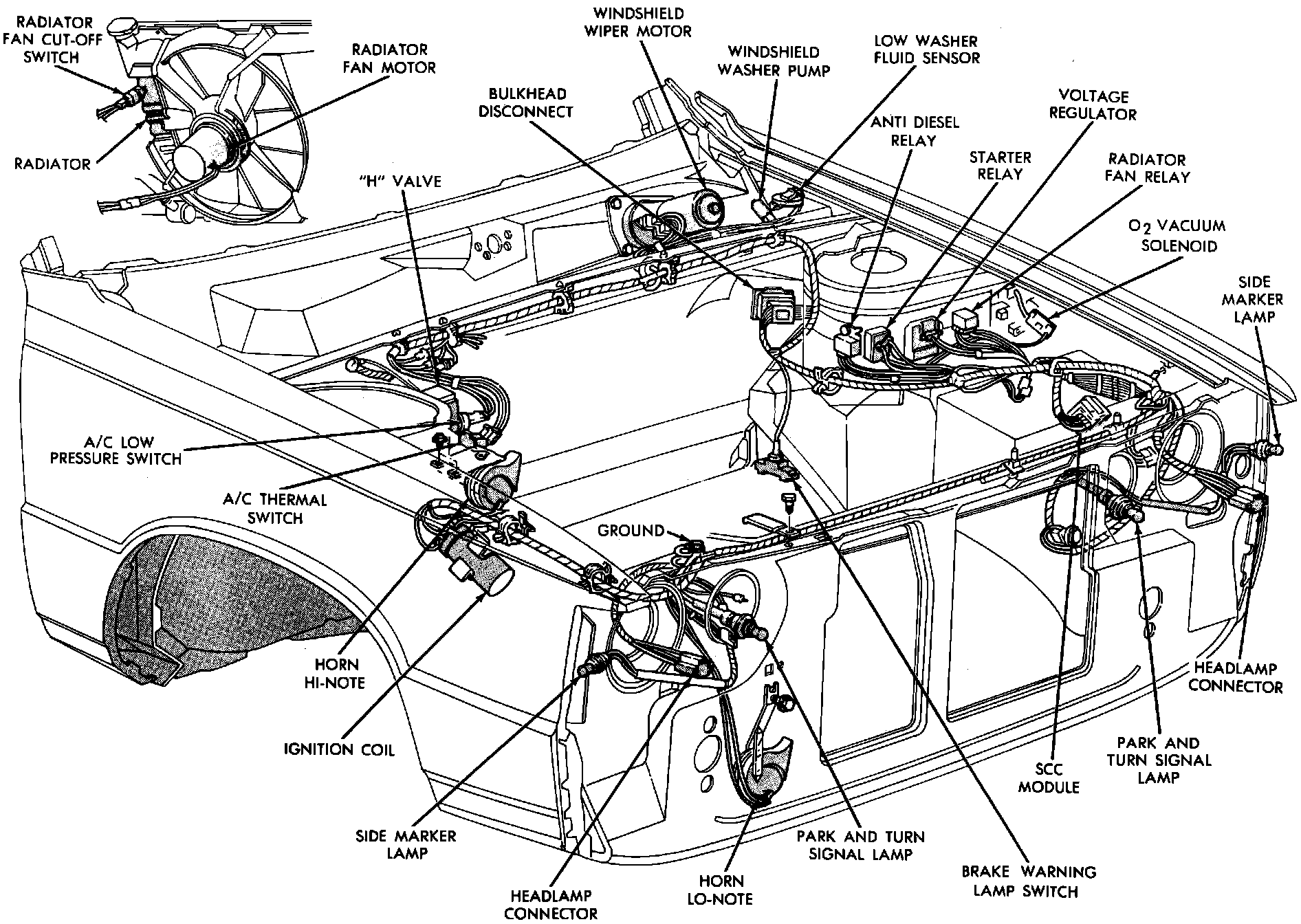

Engine Compartment Electrical Components.:




RH Rear Corner Of Engine Compartment

Applicable to: 1984 Carbureted 2.2L

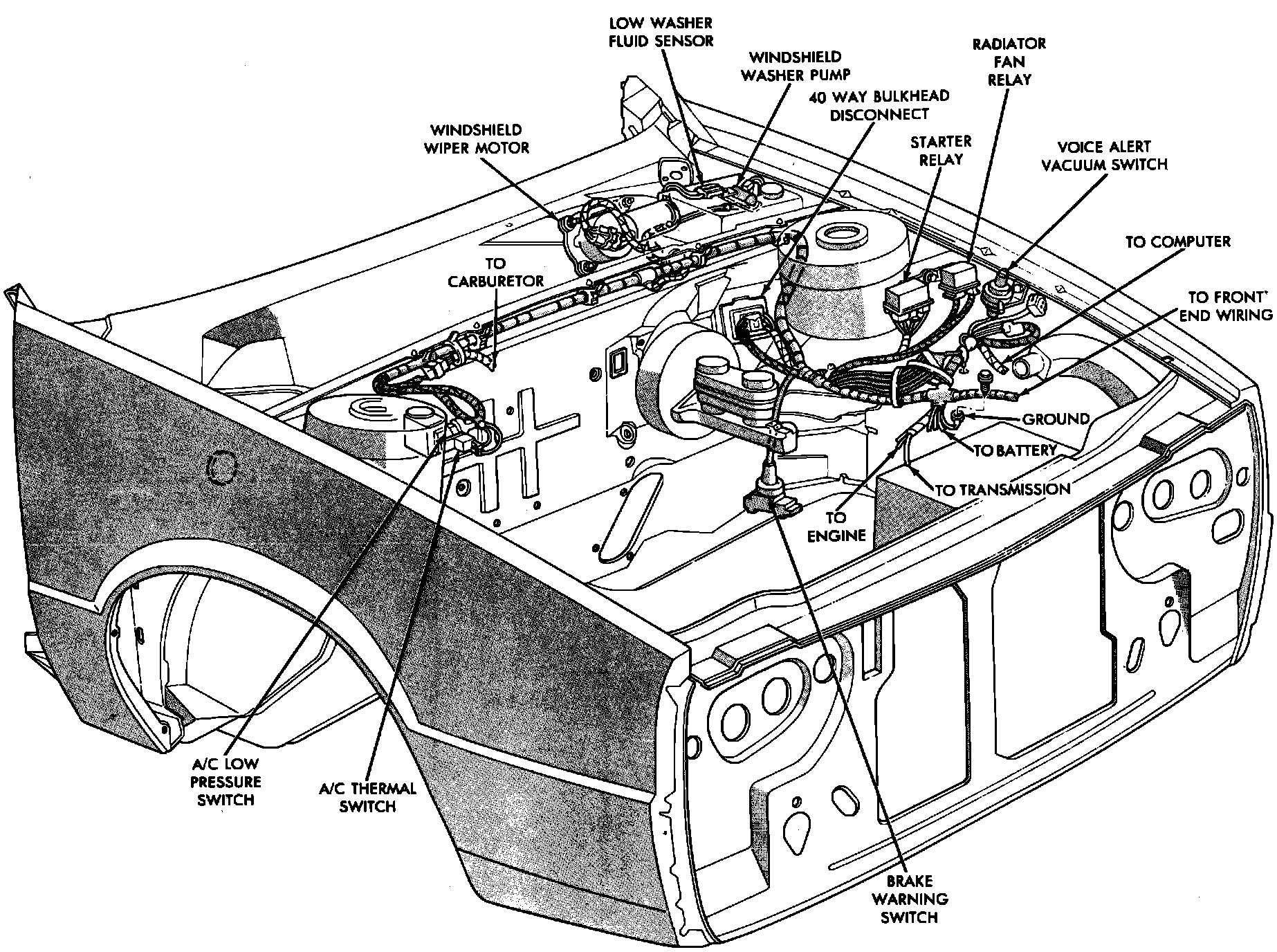

Engine Compartment Electrical Components.:




RH Rear Corner Of Engine Compartment

Applicable to: 1984 2.2L EFI & Turbo

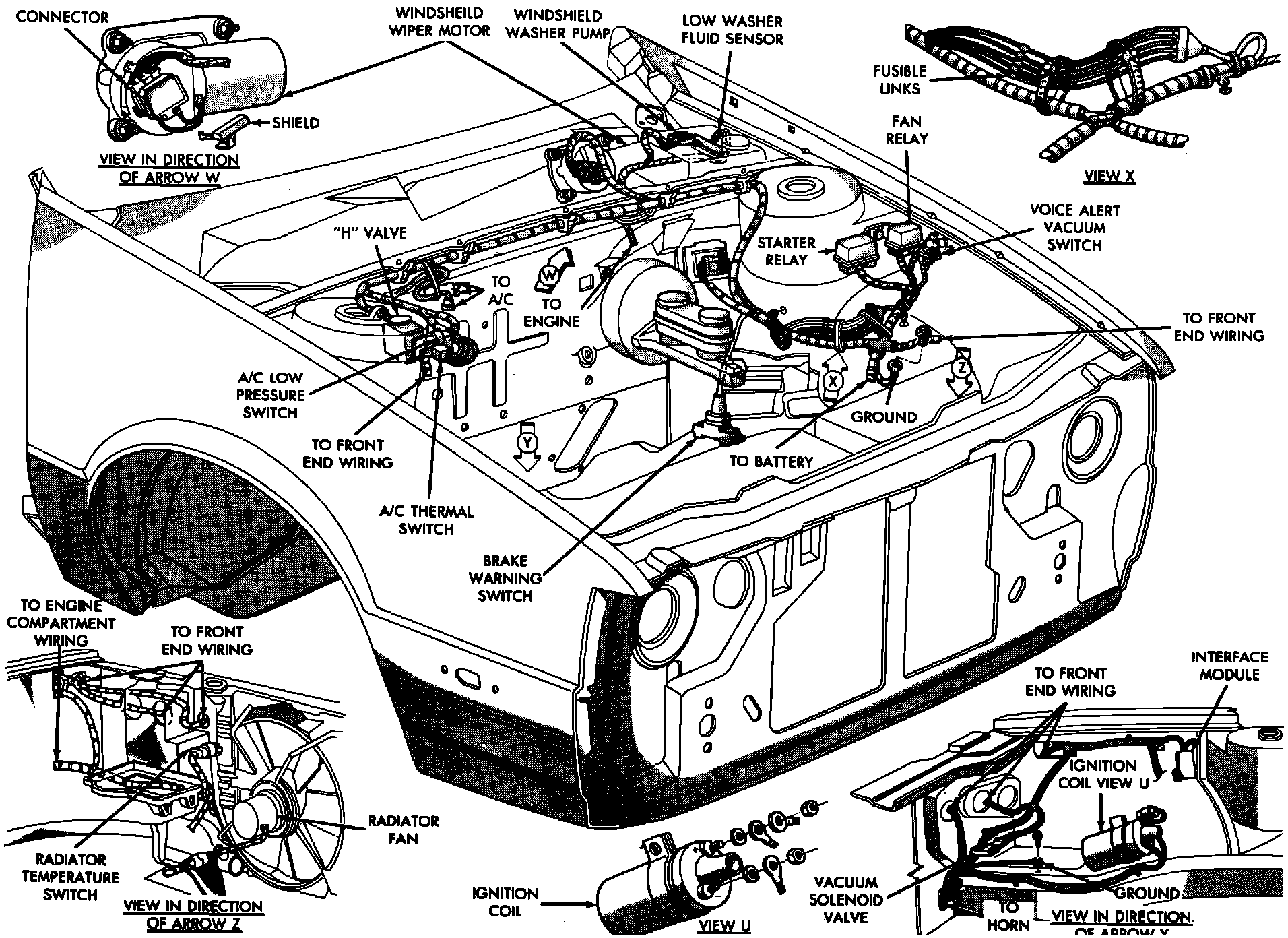

Engine Compartment Electrical Components.:




RH Rear Corner Of Engine Compartment

Applicable to: 1985 Carbureted 2.2L

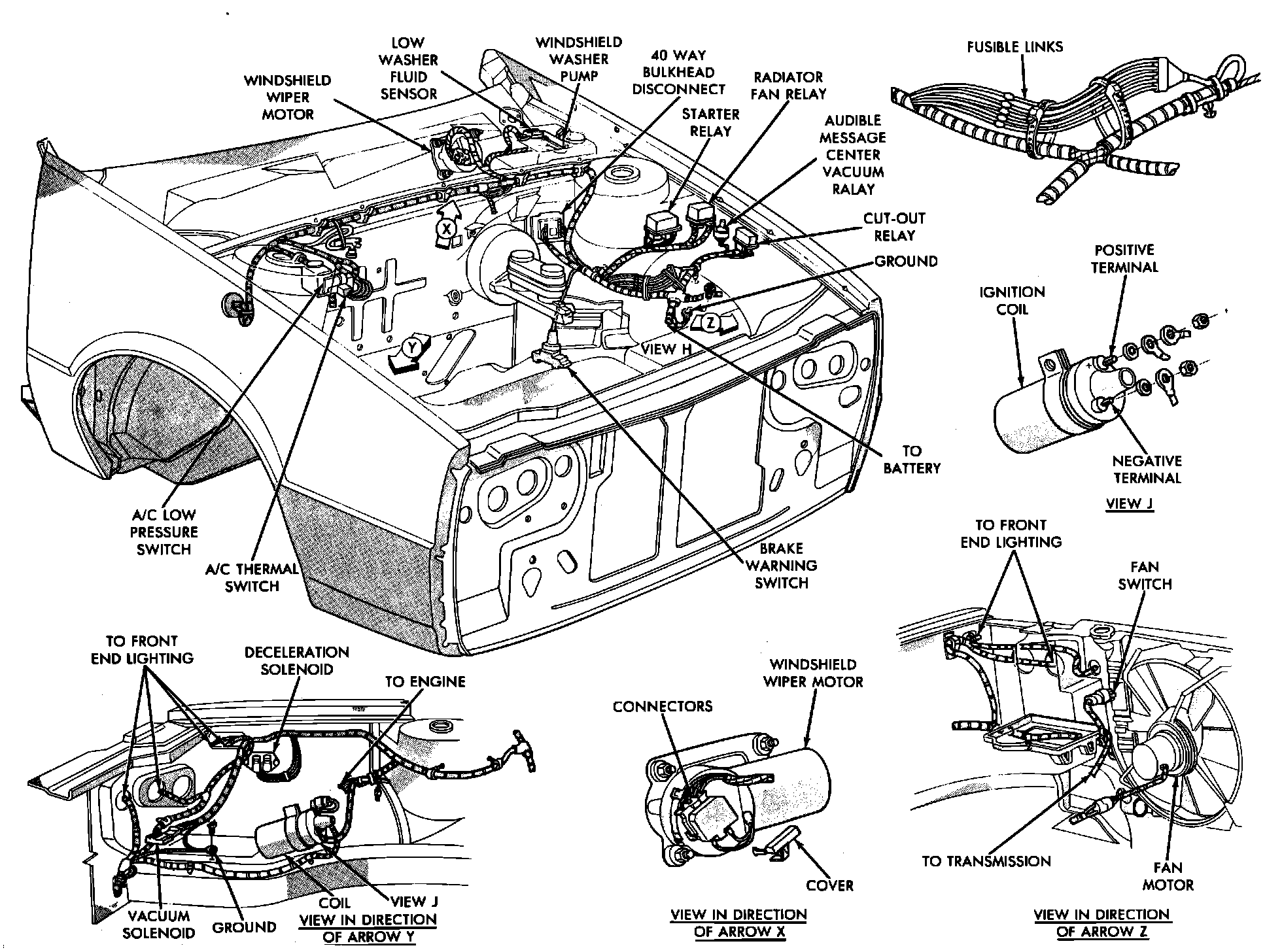

Engine Compartment Electrical Components.:




RH Rear Corner Of Engine Compartment

Applicable to: 1985 2.2L EFI & Turbo

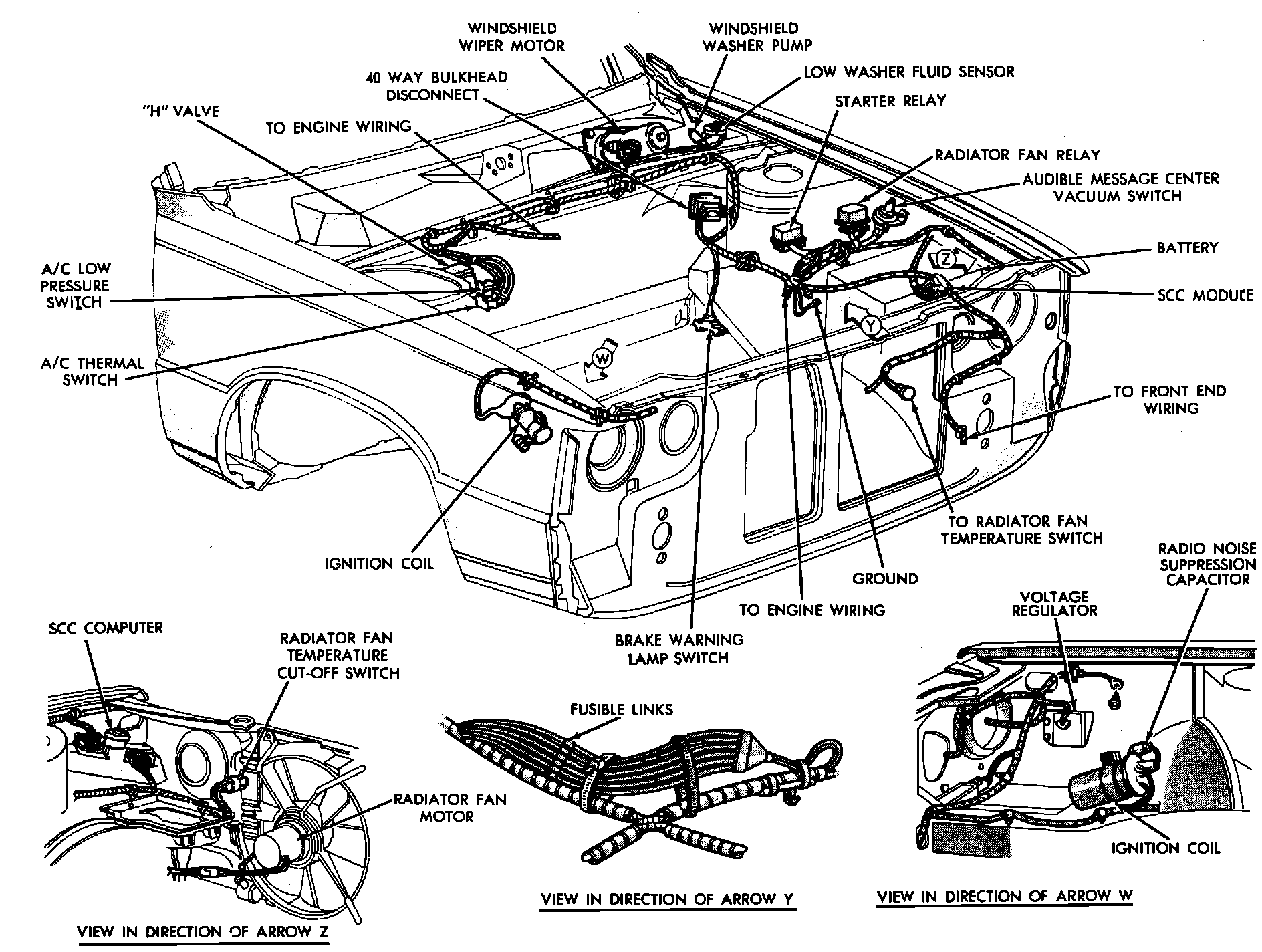

Engine Compartment Electrical Components.:




RH Rear Corner Of Engine Compartment

Applicable to: 1984 2.6L

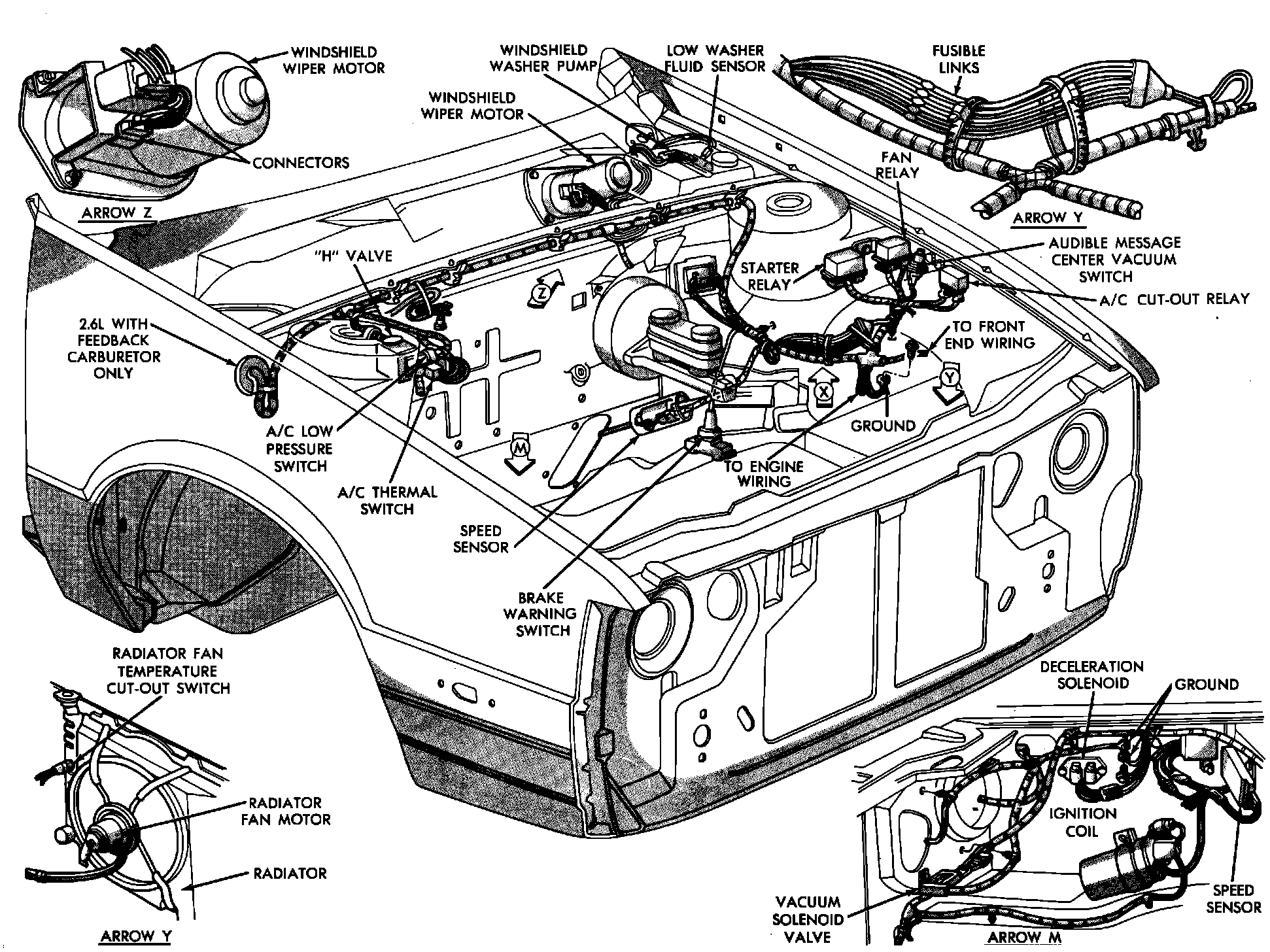

Engine Compartment Electrical Components.:




RH Rear Corner Of Engine Compartment

Applicable to: 1985 2.6L Less Feedback Carburetor System

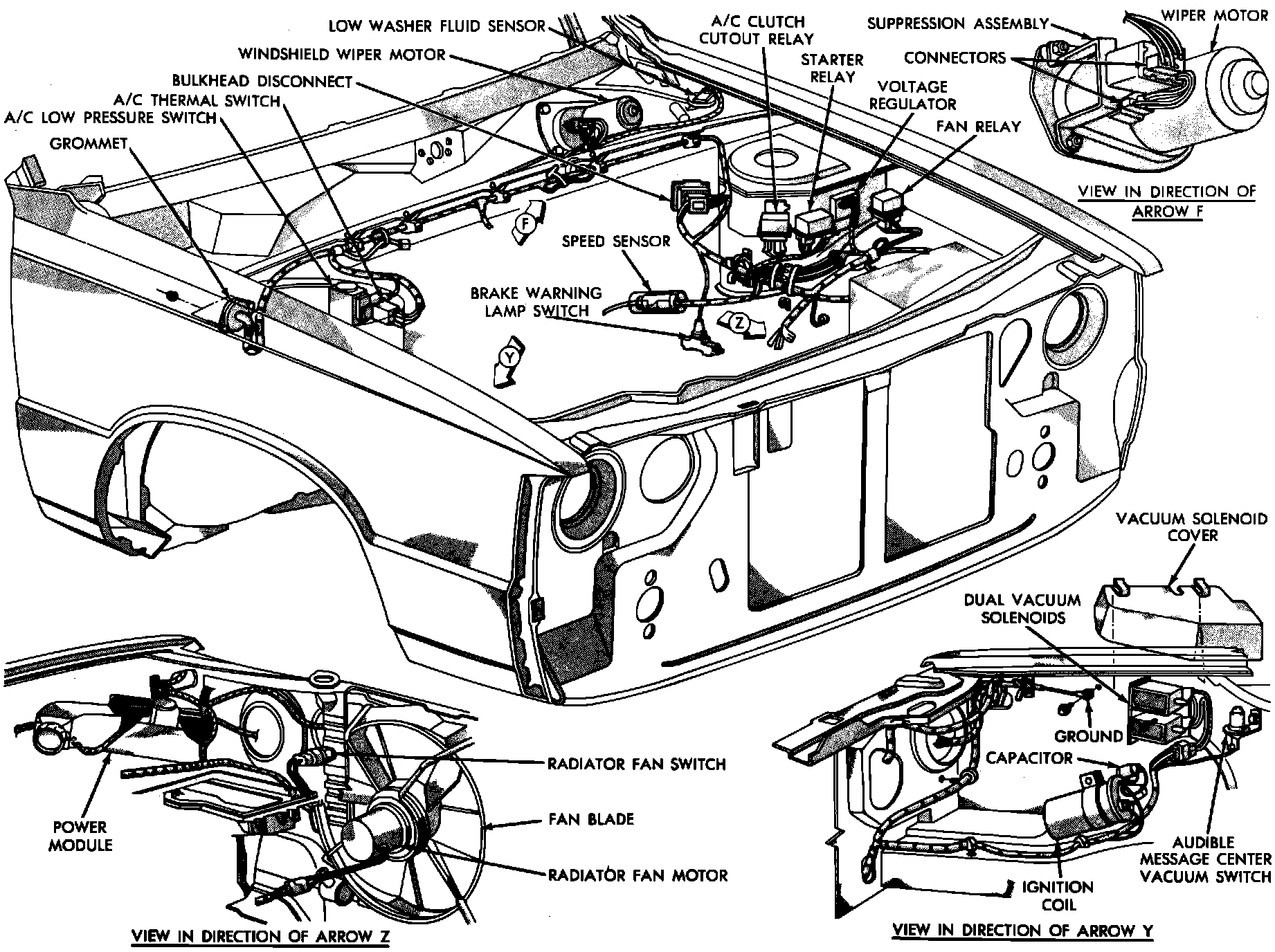

Engine Compartment Electrical Components.:




RH Rear Corner Of Engine Compartment

Applicable to: 1985 2.6L w/Feedback Carburetor System
