Audible Warning Device Control Module: Locations

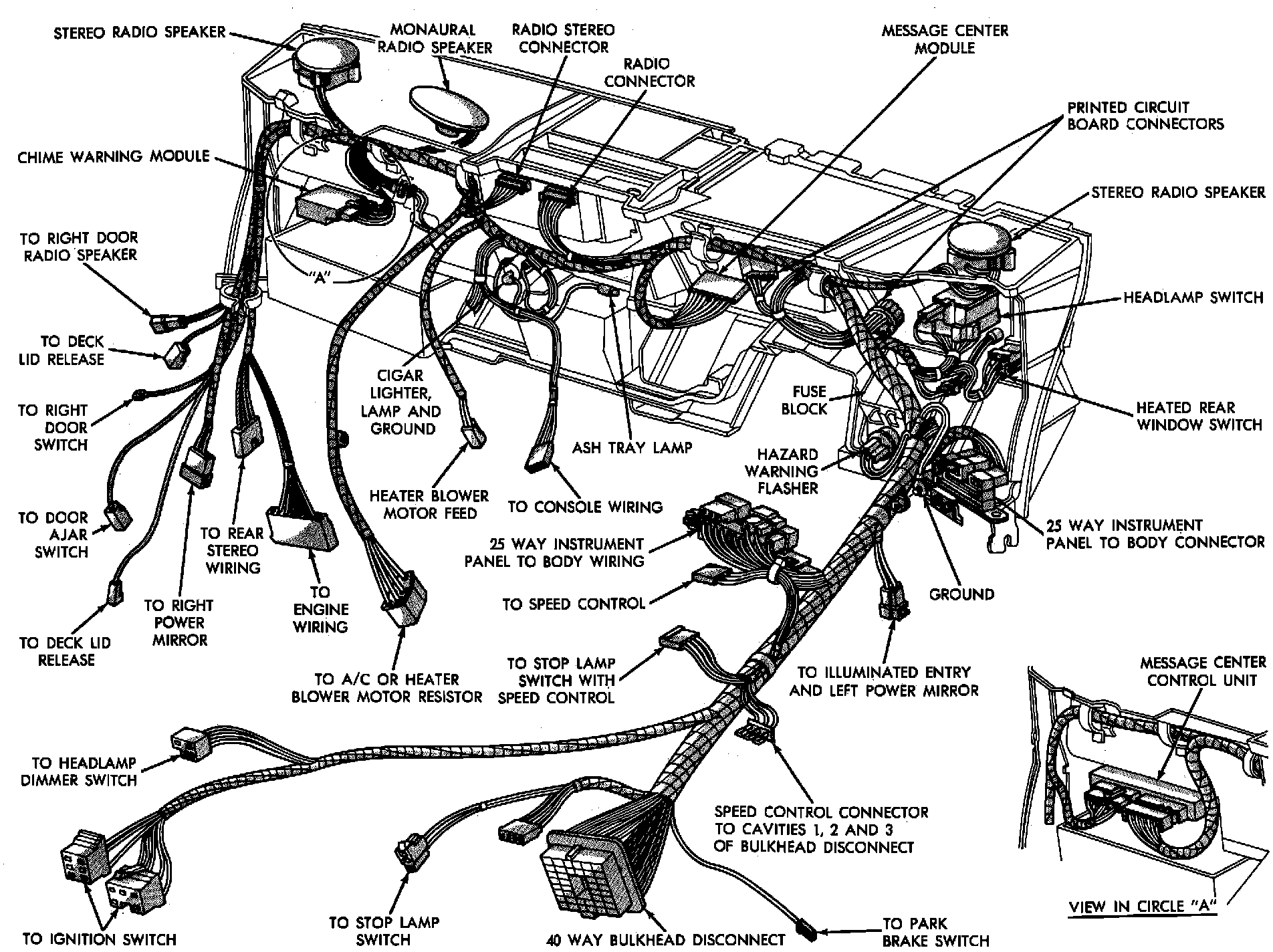

Instrument Panel Electrical Components.:




Under RH Side Of I/P

Applicable to: 1982-83

Instrument Panel Electrical Components.:




Under RH Side Of I/P

Applicable to: 1984

Instrument Panel Electrical Components.:




Under RH Side Of I/P

Applicable to: 1985
