Clearance and Design Specifications


A-412, A-460 and A-465

A-412

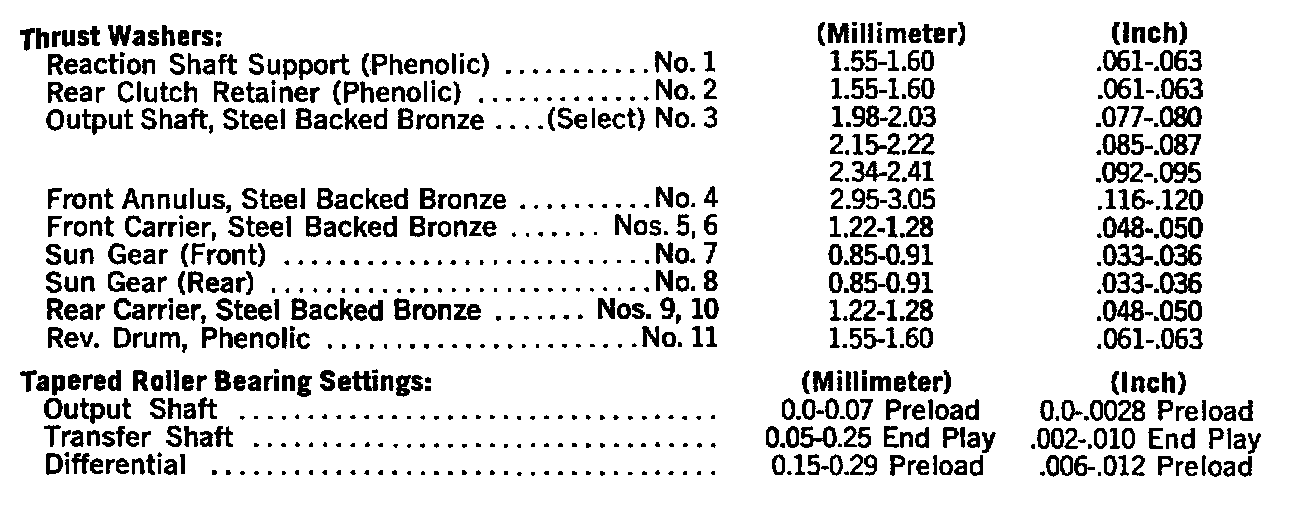

GENERAL SPECIFICATIONS

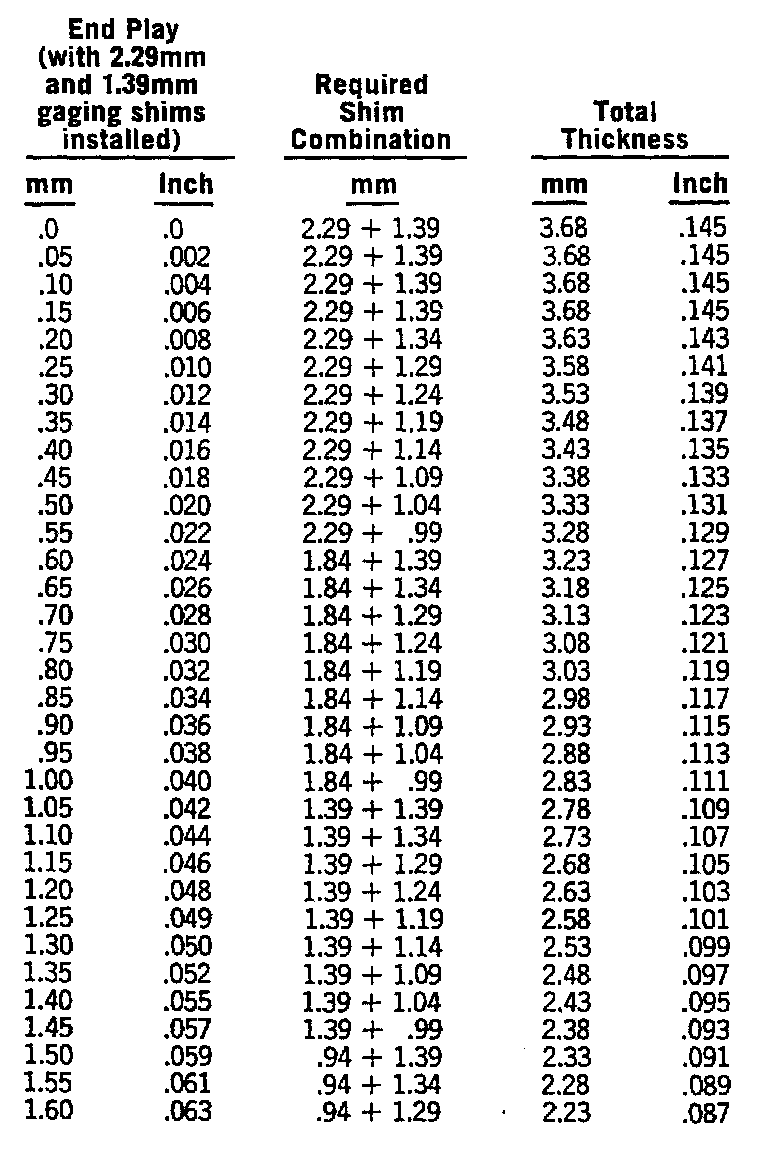

OUTPUT SHAFT BEARING SHIM CHART

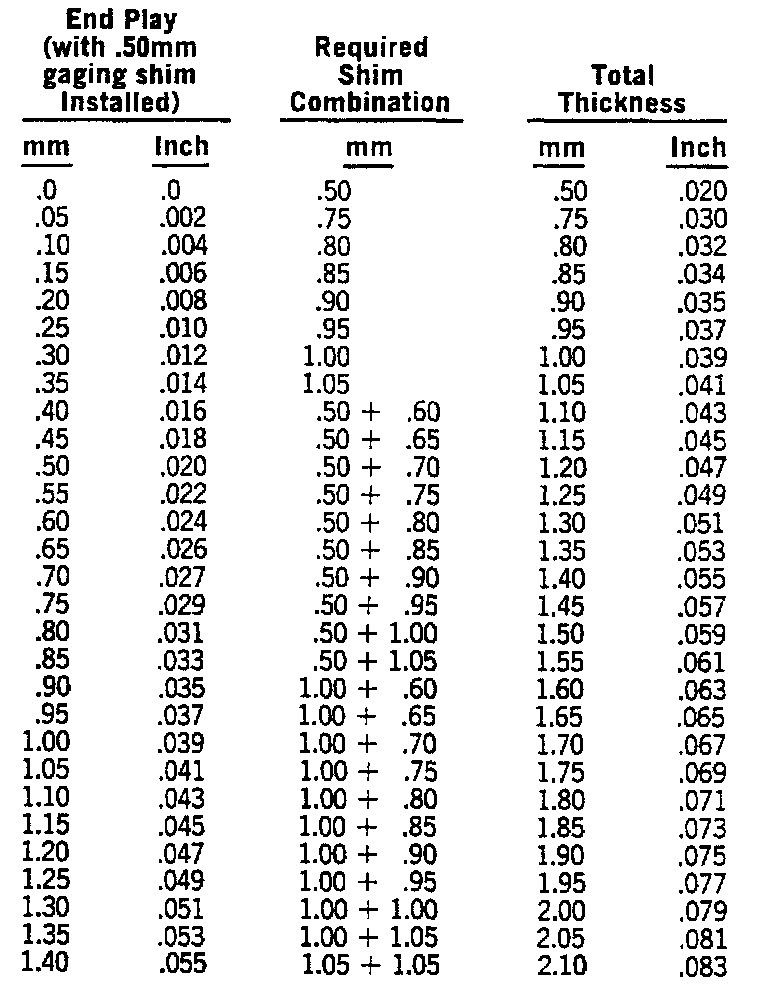

DIFFERENTIAL BEARING SHIM CHART

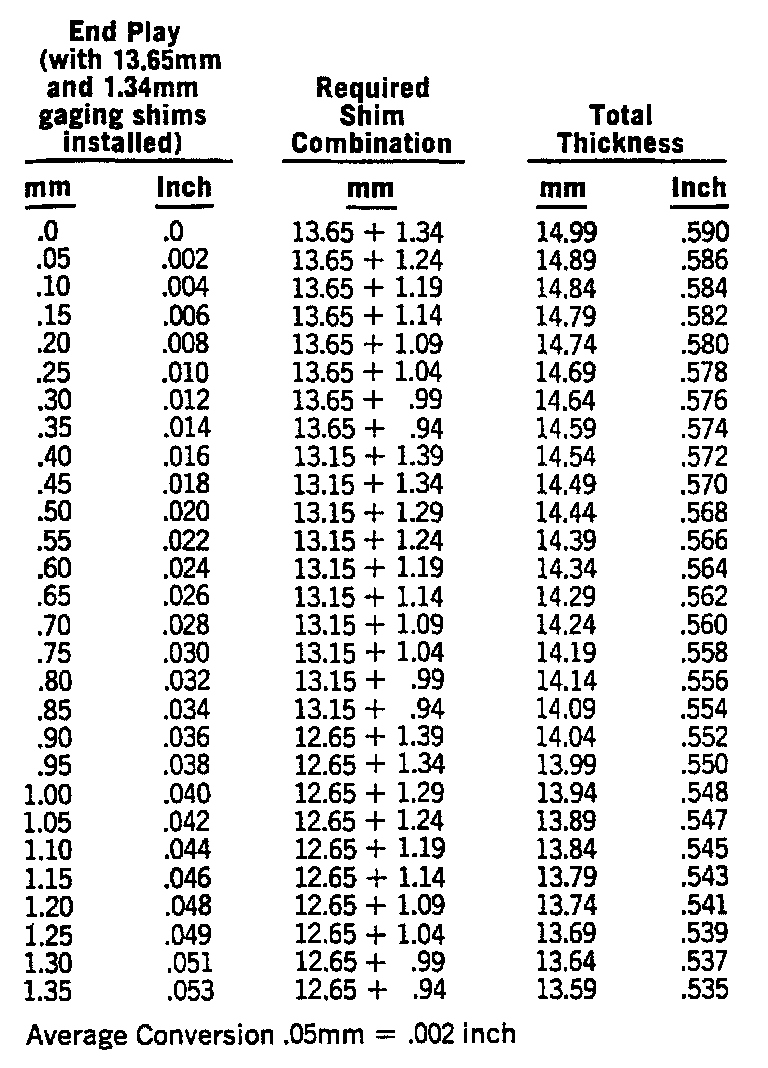

TRANSFER BEARING SHIM CHART

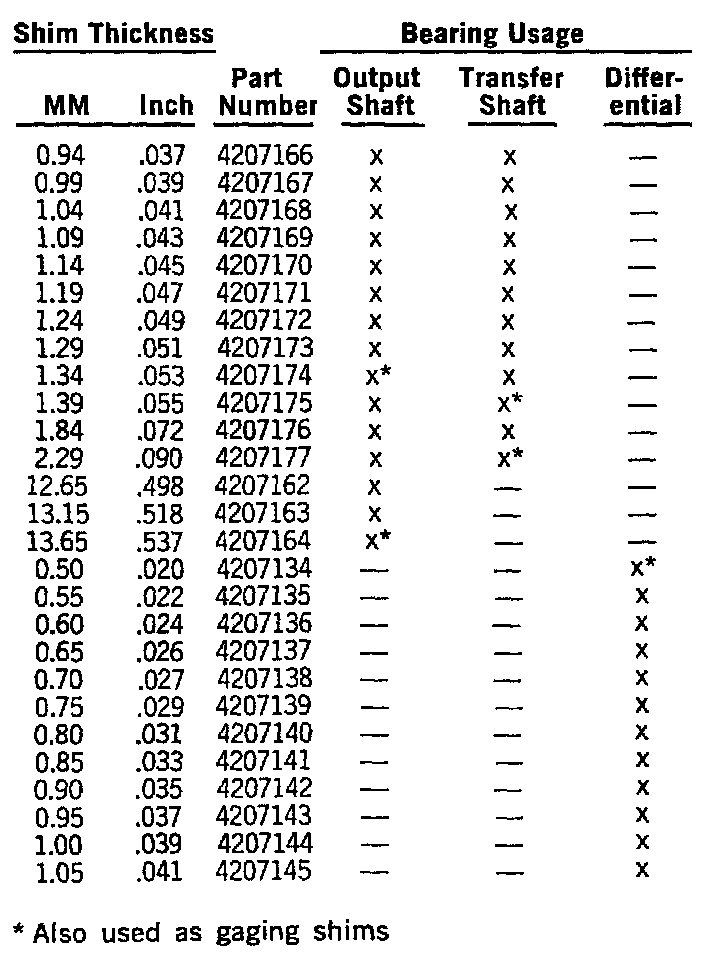

BEARING SHIM CHART




A-460 and A-465

CAPACITY CHART




GEAR RATIOS
