Neutral Safety Switch: Locations

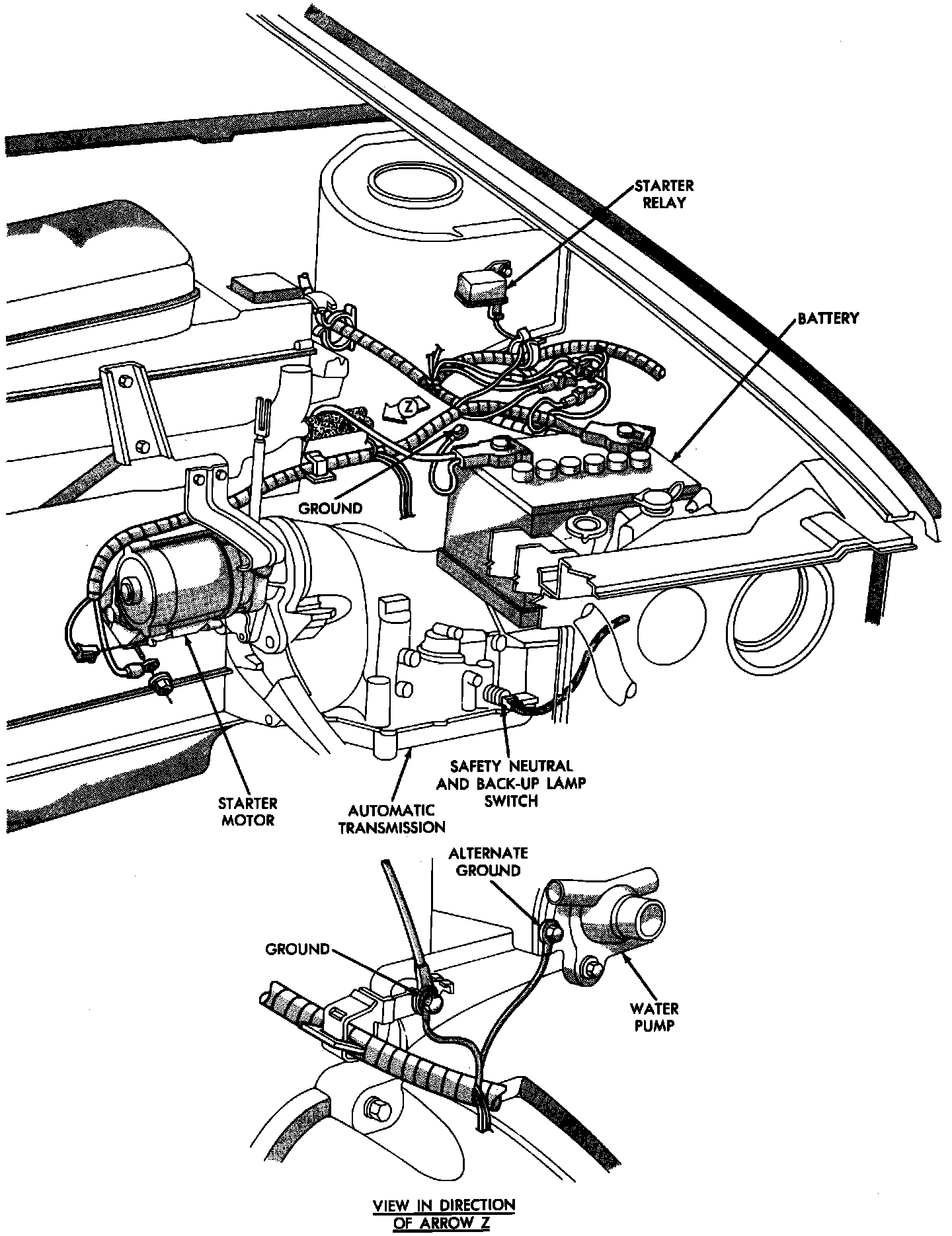

LH Front Of Engine Compartment.:




Front LH Side Of Automatic Transmission

Applicable to: 1984 2.2L

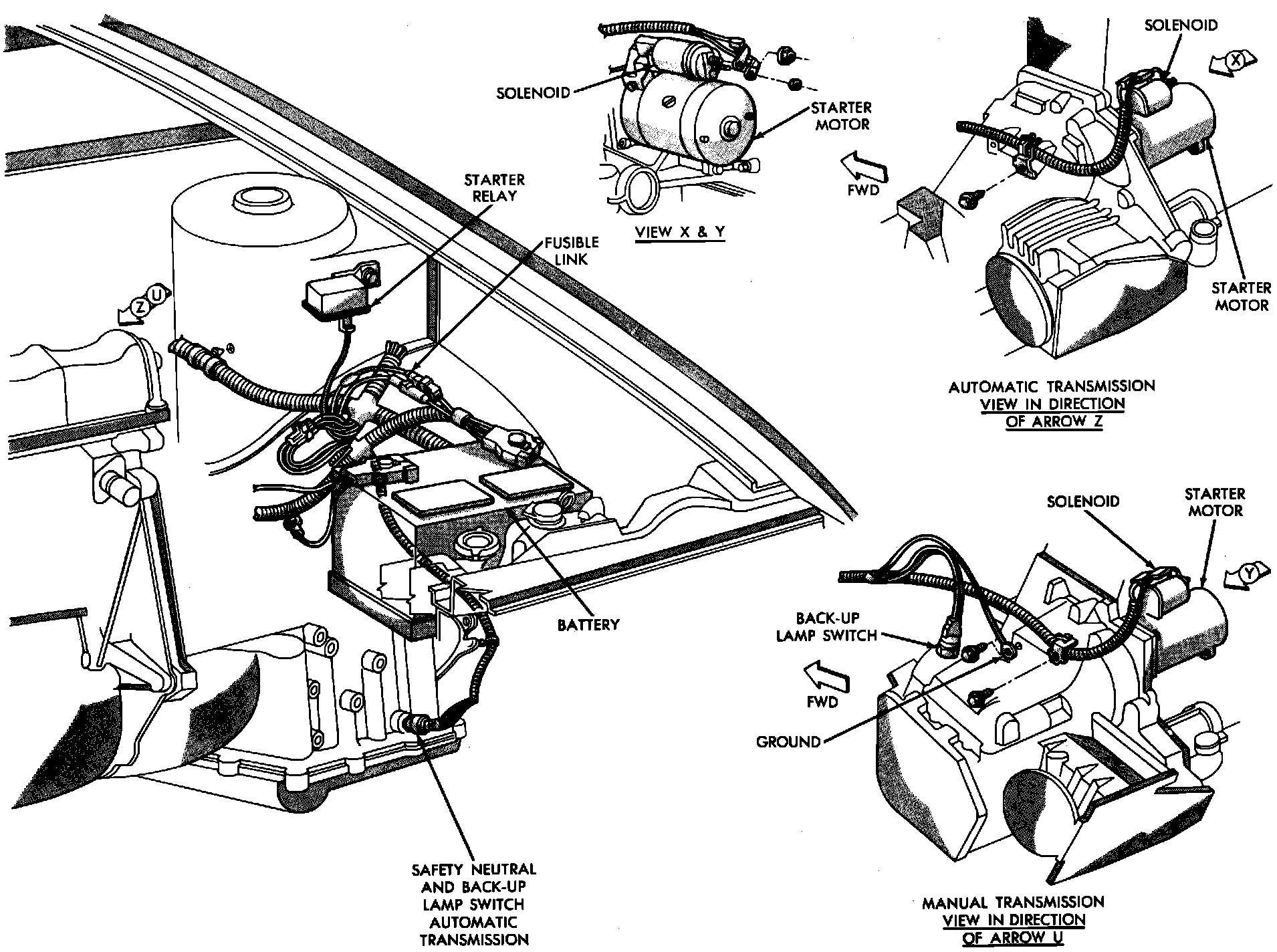

LH Front Of Engine Compartment.:




Front LH Side Of Automatic Transmission

Applicable to: 1985 2.2L

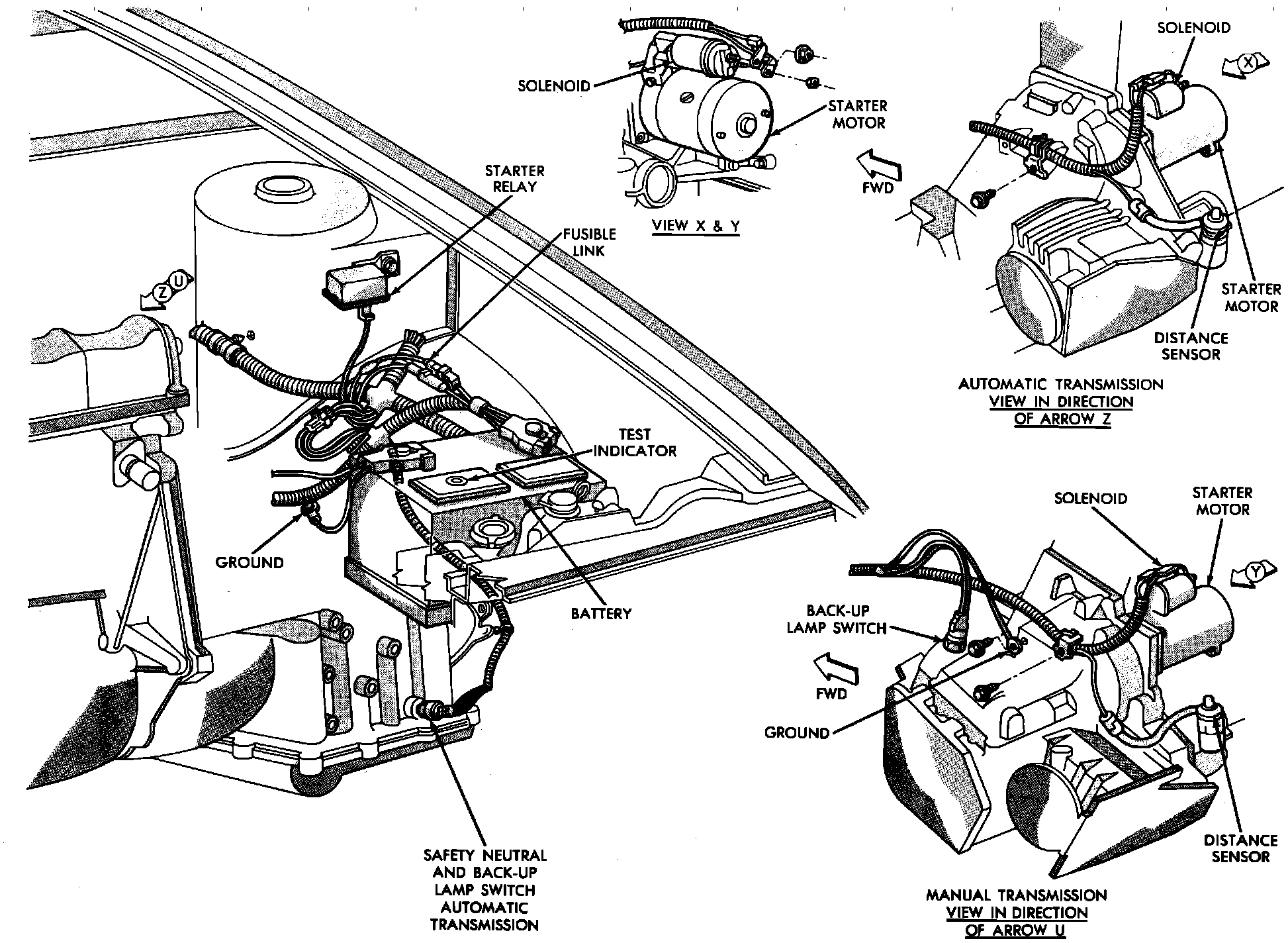

LH Front Of Engine Compartment.:




Front LH Side Of Automatic Transmission

Applicable to: 1984-85 2.6L
