Test 41A: Theft Alarm Module Ignition Run Circuit

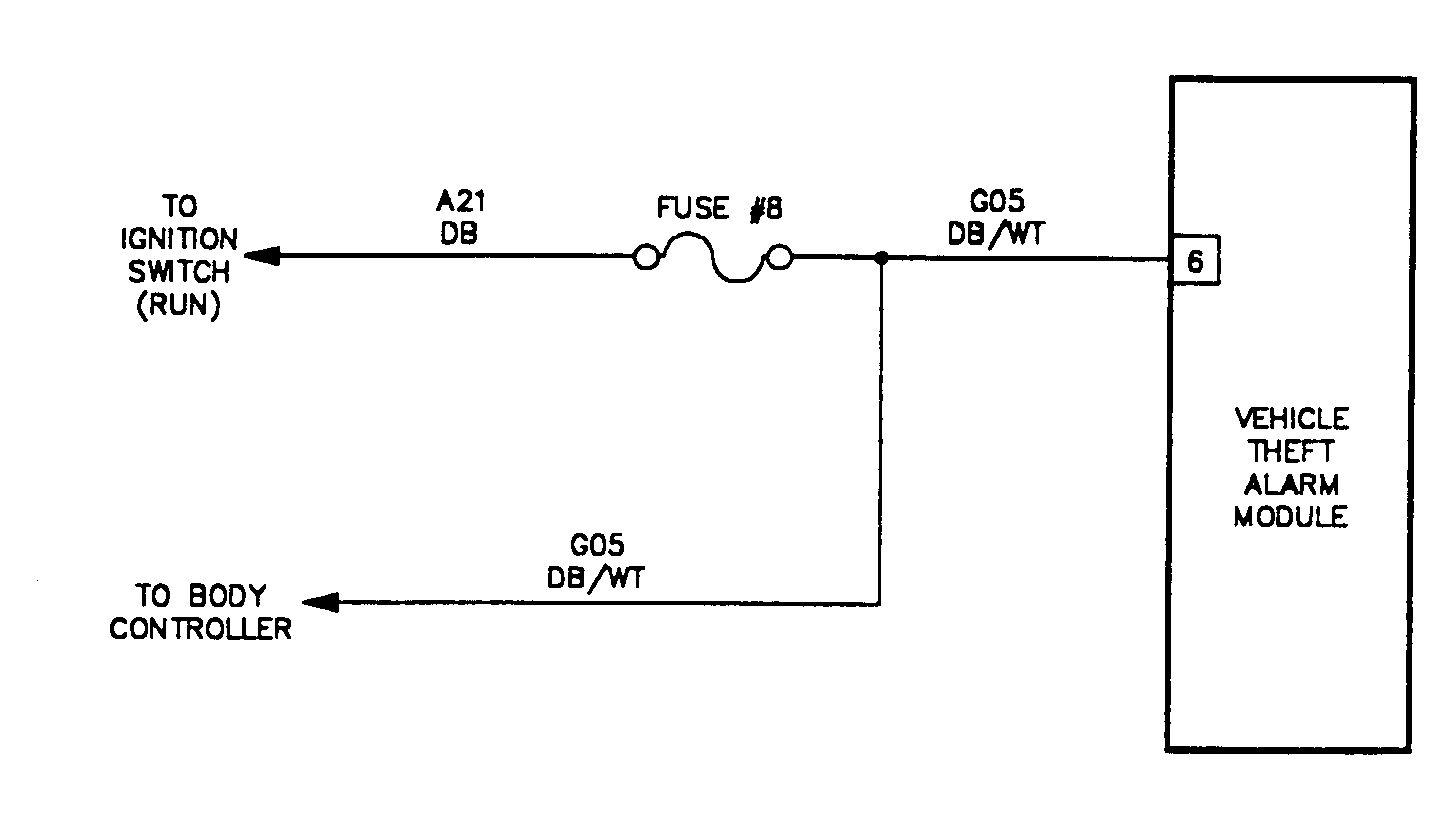

Fig 1: Test 41A: Circuit Diagram.

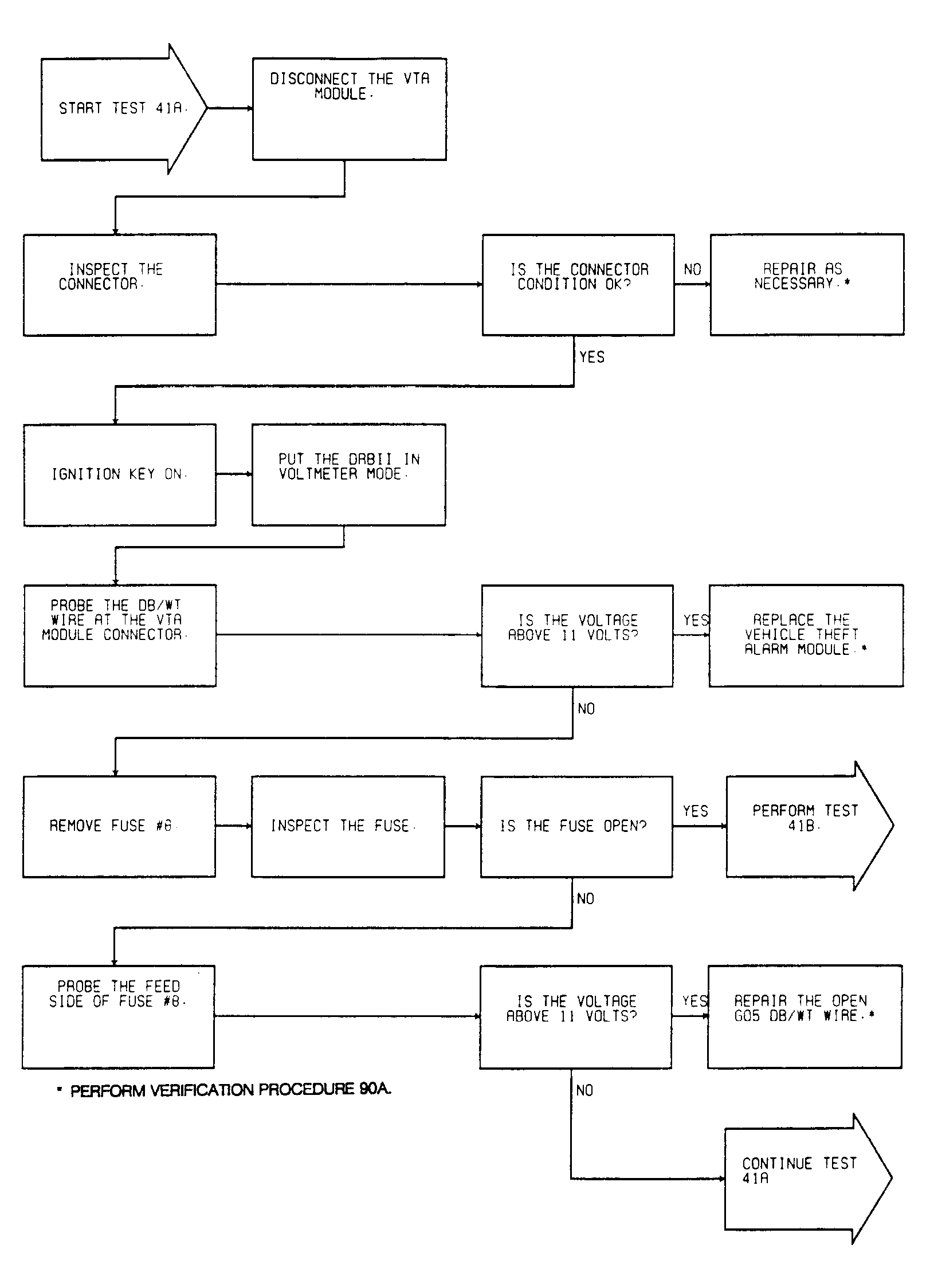

Fig 2: Test 41A: Theft Alarm Ignition Run Circuit (1 of 2)

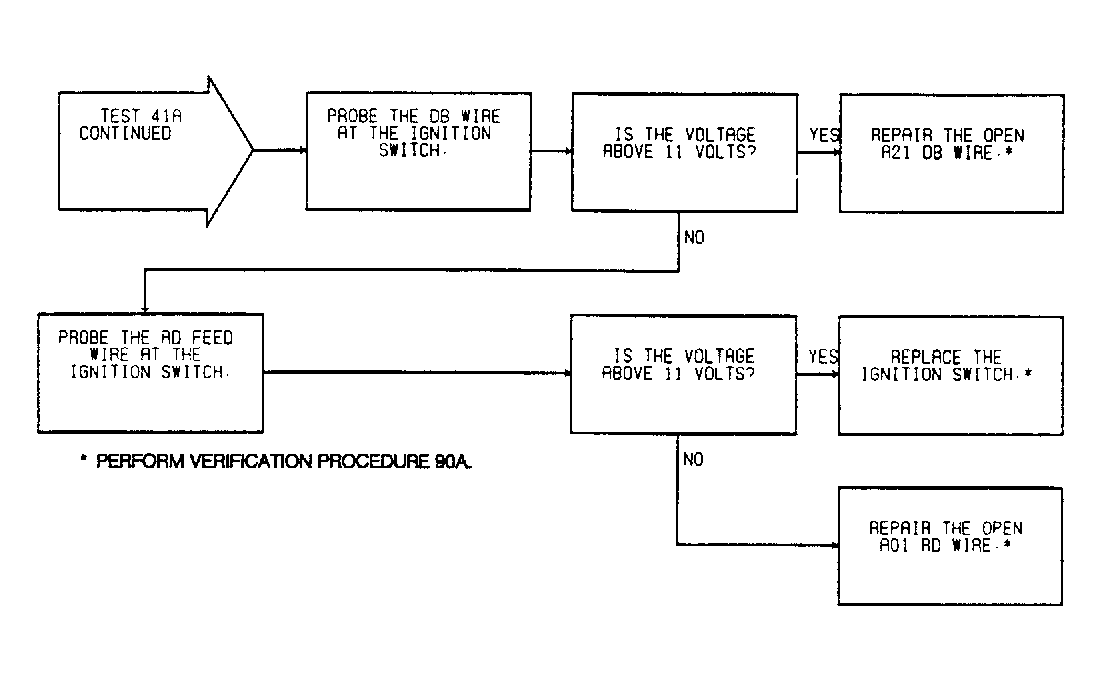

Fig 3: Test 41A: Theft Alarm Ignition Run Circuit (2 of 2)
