Transmission Range Sensor: Installation
- Install the TRS to the manual shaft. Make sure TRS locating pin rests in manual valve bore slot.

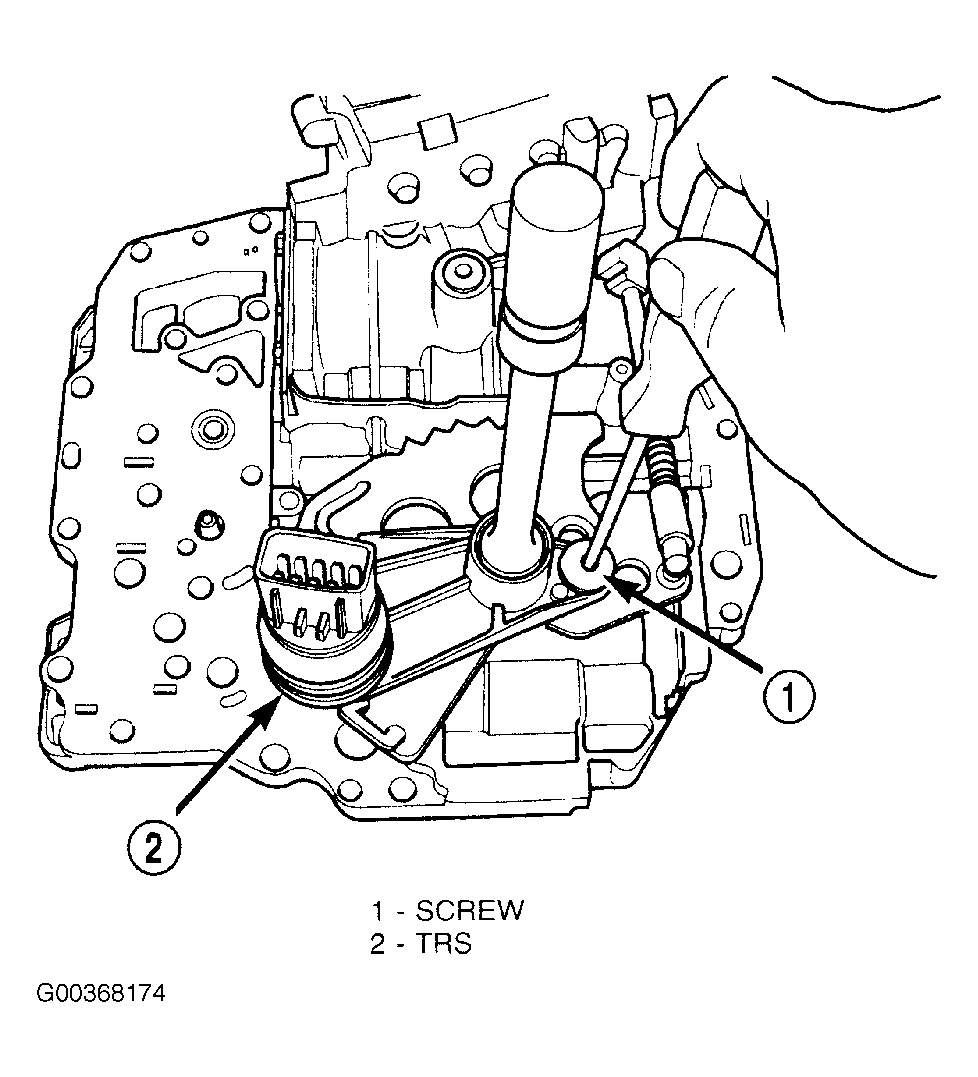

- Install the TRS/manual shaft retaining screw and torque to 45 INCH Lbs. (5 N.m). See Figure
.

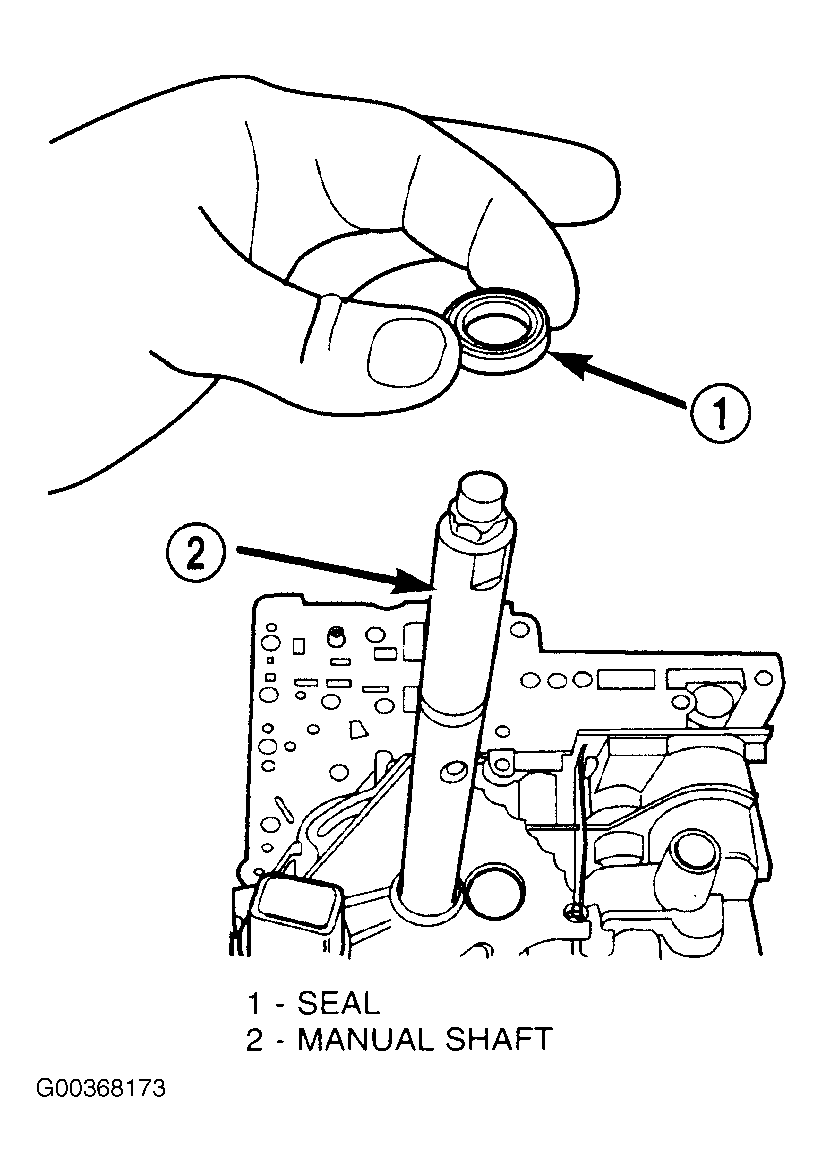

- Install the manual shaft seal. See Figure
.
- Install valve body to transaxle.
