Driver Door Module (DDM) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B1D0F-Driver Mirror Horizontal Position Sensor Input Circuit Low
>>
Circuit Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Schematic

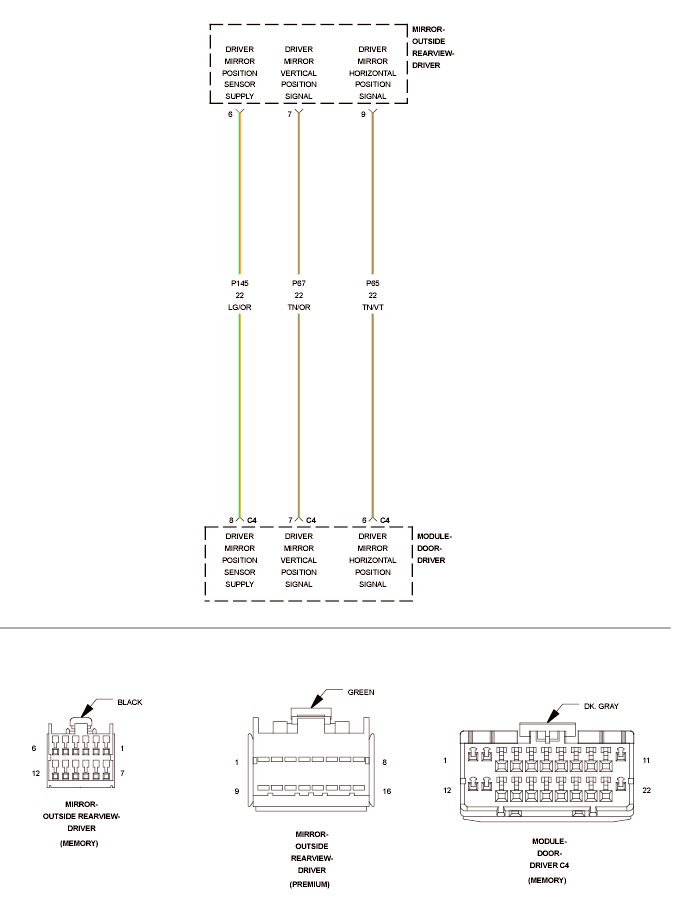

Fig 1: Driver Mirror Position Sensor Input Circuit Schematic
Courtesy of CHRYSLER LLC
