TRAY, Battery: Installation: Installation

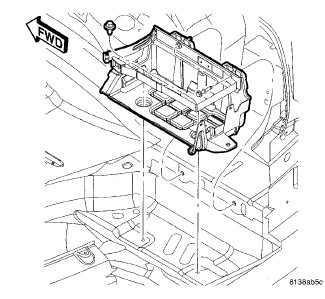

Fig 1: Removing/Installing Battery Tray
GC0080017Courtesy of CHRYSLER LLC
  1. Position the battery tray in the vehicle and install the mounting fasteners.

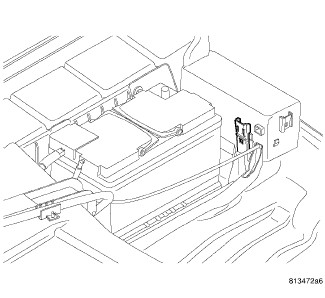

    Fig 2: Removing/Installing Power Distribution Center
    GC0080016Courtesy of CHRYSLER LLC
  2. Position the Power Distribution Center (PDC) onto the battery tray mounting tabs. Gently apply downward pressure on the PDC until it snaps into place.
  3. Install the battery. See Electrical/Battery System/BATTERY - Installation .
