Timing Component Alignment Marks: Locations

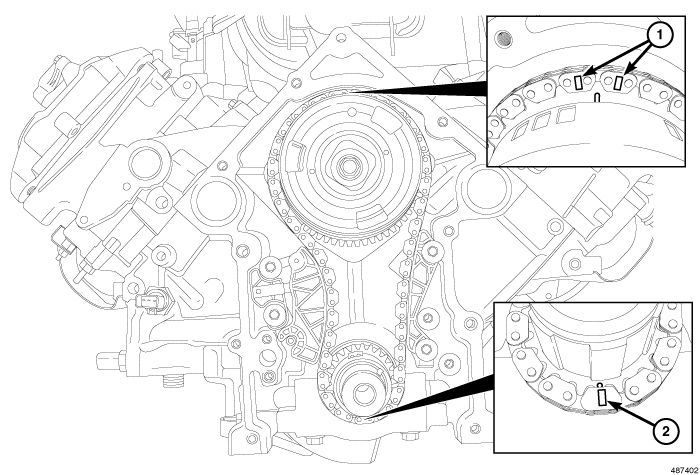

Timing Chain Alignment Marks

Caution - Improper timing chain installation may cause severe engine damage, refer to Timing Chain Removal and Replacement for complete service procedure. Service and Repair

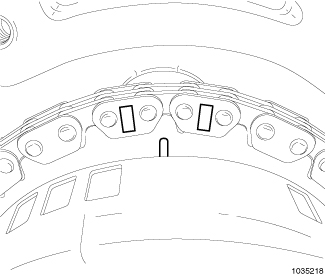

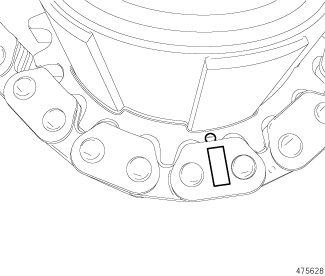

Rotate the crankshaft two revolutions and verify the alignment of the timing marks (1, 2). If the timing marks do not line up, remove the camshaft sprocket and realign.
