Cylinder Head Assembly

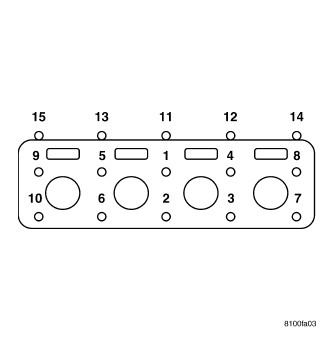

CYLINDER HEAD





M-12 Bolts
Step 1 34 Nm (25 ft. lbs.)
Step 2 54 Nm (40 ft. lbs.)
Step 3 Turn 90°


M-8 Bolts
Step 1 20 Nm (15 ft. lbs.)
Step 2 34 Nm (25 ft. lbs.)


SURFACE VARIATION - HEAD-TO-BLOCK

Inspect the cylinder head for out-of-flatness using a straightedge and a feeler gauge. If tolerances exceed 0.0508 mm (0.002 in.) replace the cylinder head.

INTAKE MANIFOLD

Intake Manifold Specifications

EXHAUST MANIFOLD

Exhaust Manifold Specifications

CAMSHAFT GEAR/SPROCKET

Camshaft Gear/Sprocket Specifications
