MODULE, Glow Plug: Installation: Installation

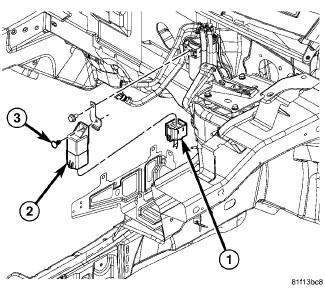

Fig 1: 09 JC 2.0L DIESEL GLOW PLUG MODULE
GC0121032Courtesy of CHRYSLER LLC
  1. Install the glow plug module (2).
  2. Install the fastener (3).
  3. Reconnect the glow plug module harness connector (1)
