Switch, Remote Radio: Installation: Installation
WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Disable the airbag system before attempting any steering wheel, steering column, seat belt tensioner, side airbag or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable. Wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.
- Position the remote radio switch to the mounting hole on the outside of the steering wheel rear trim cover. Be certain that the connector receptacle is oriented toward the bottom of the switch and pointed toward the center of the steering wheel.
- Press firmly and evenly on the remote radio switch until each of the switch snap features is fully engaged in the mounting hole of the steering wheel rear trim cover.
- Reconnect the steering wheel wire harness connector to the connector receptacle of the remote radio switch (1).
- Install the speed control switch (3). Refer to SWITCH, SPEED CONTROL, INSTALLATION .

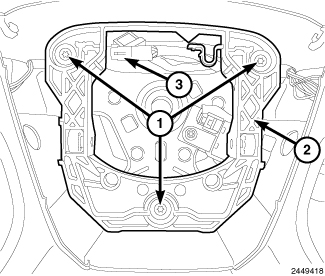

- Install the horn button assembly (2) and install the three retainers (1).
- Connect the horn connector (3).

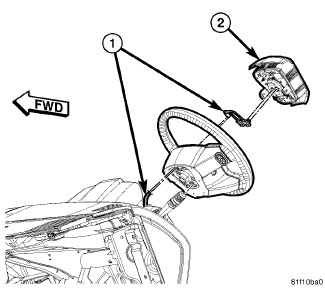

- Install the driver side airbag module to the steering wheel. Refer to AIR BAG, DRIVER, INSTALLATION .
- Connect the battery negative cable.
