Fan, Cooling: Description: Description

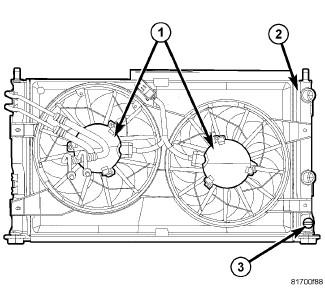

Fig 1: View Of Fan Module

Courtesy of CHRYSLER GROUP, LLC

1 - Radiator Fan Motors

2 - Radiator

3 - Radiator Draincock

The radiator fan module includes a support shroud (2) with two electrically driven motors (1) with fan blades. The radiator fan module is fastened to the radiator.
