Anti-Lock Brake System (Abs) Module

REMOVAL

1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
2. Remove the washer solvent fill tube mounting bolt, and reposition the washer solvent fill tube.

   Courtesy of CHRYSLER GROUP, LLC

   1 - ABS Electrical Connector

   2 - Solvent Fill Tube Mounting Bolt

   3 - HCU Mounting Bolts

3. If equipped, remove the Hydraulic Control Unit (HCU) cover.

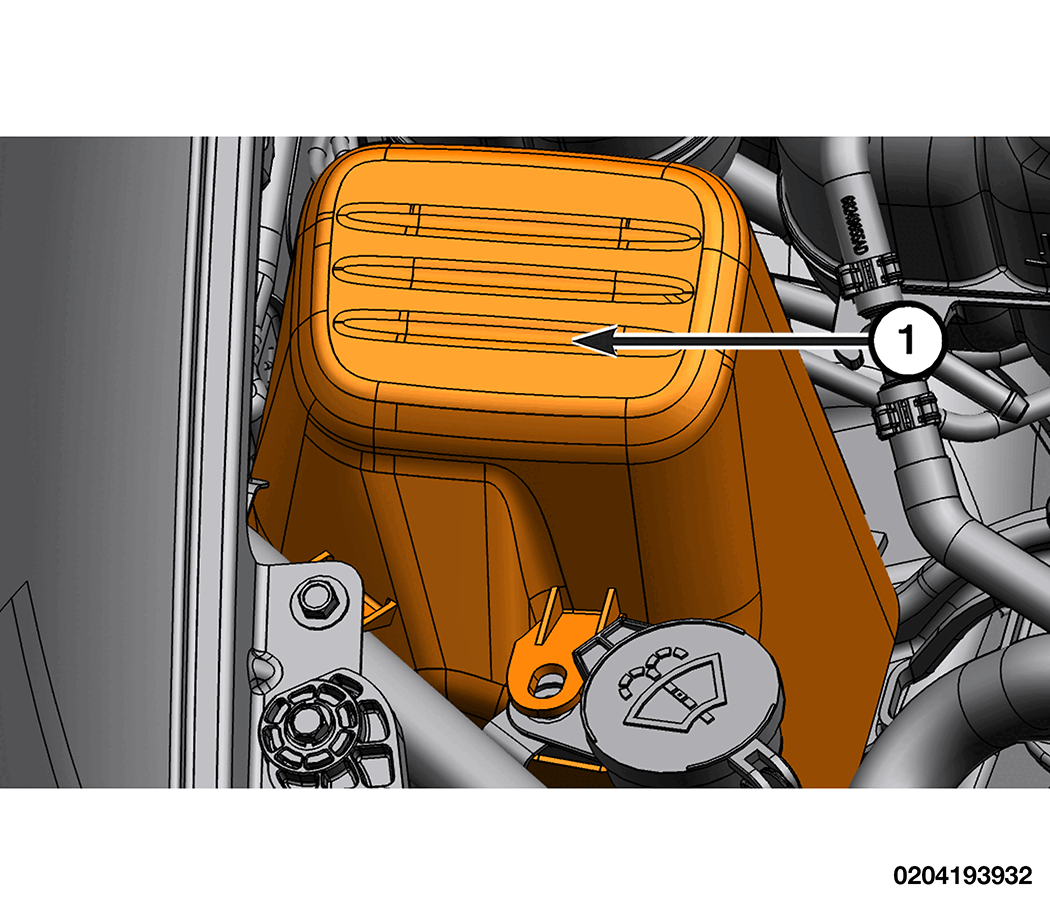

   Courtesy of CHRYSLER GROUP, LLC

   1 - HCU Cover

4. Remove the right front headlamp. Refer to UNIT, FRONT LAMP, REMOVAL AND INSTALLATION .
5. Disconnect the Anti-lock Brake System (ABS) electrical connector.

   Courtesy of CHRYSLER GROUP, LLC

   1 - ABS Electrical Connector

   2 - Solvent Fill Tube Mounting Bolt

   3 - HCU Mounting Bolts

6. Remove the four Anti-lock Brake System (ABS) module to hydraulic control unit (HCU) mounting bolts.
7. Carefully separate the ABS module from the HCU.
8. Remove the ABS module from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Tighten the HCU mounting bolts securely.
• Install the washer solvent fill tube into the top of the washer solvent reservoir, and install the mounting screw and tighten securely.
• Perform the Verification Test and clear and faults. Refer to ABS VERIFICATION TEST .
