Global Telematics Box Module

REMOVAL

1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
2. Remove the Integrated Center Stack (ICS) from the instrument panel cover. Refer to MODULE, INTEGRATED CENTER STACK (ICSM), REMOVAL AND INSTALLATION .
3. Disconnect the wire harness connectors from the Global Telematics Box Module (TBM2).

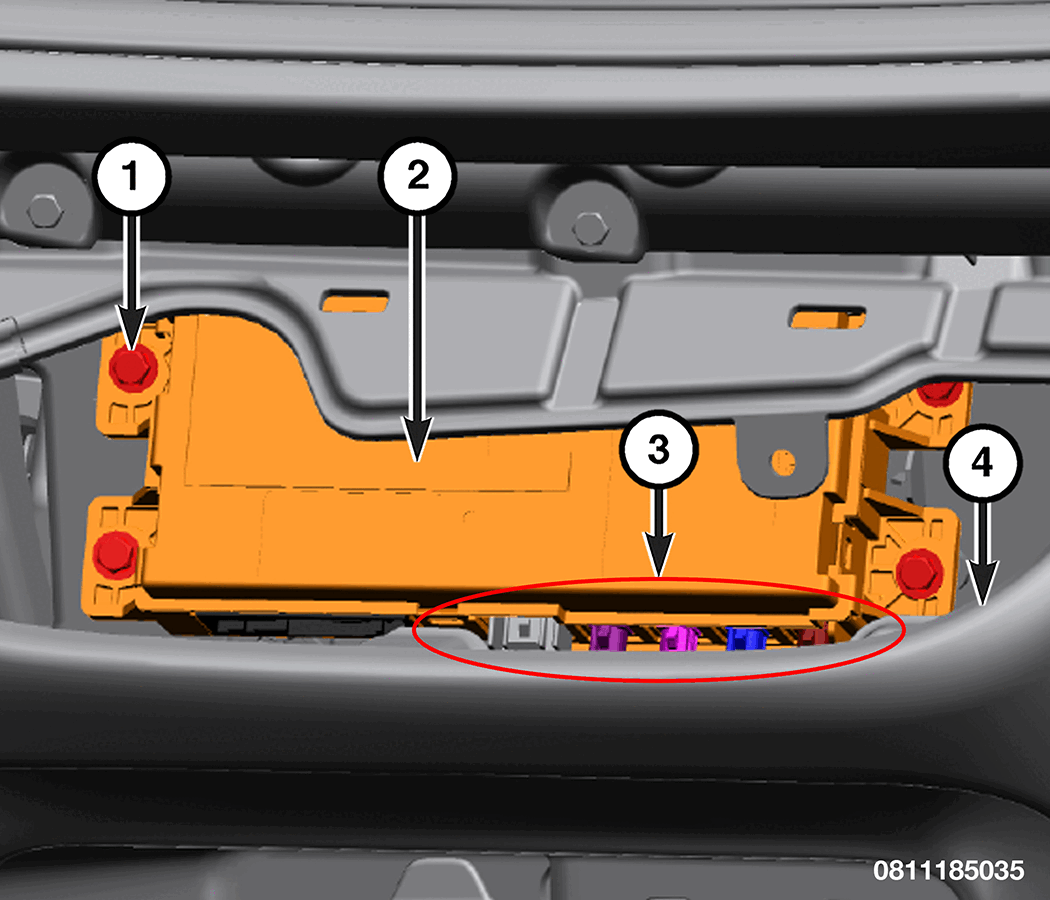

   Courtesy of CHRYSLER GROUP, LLC

   1 - Screws

   2 - TBM2

   3 - Wire Harness Connectors

   4 - Mounting Bracket

4. Remove the screws from the TBM2 mounting bracket that secure the TBM2 to the bracket.
5. Remove the TBM2 from the vehicle.

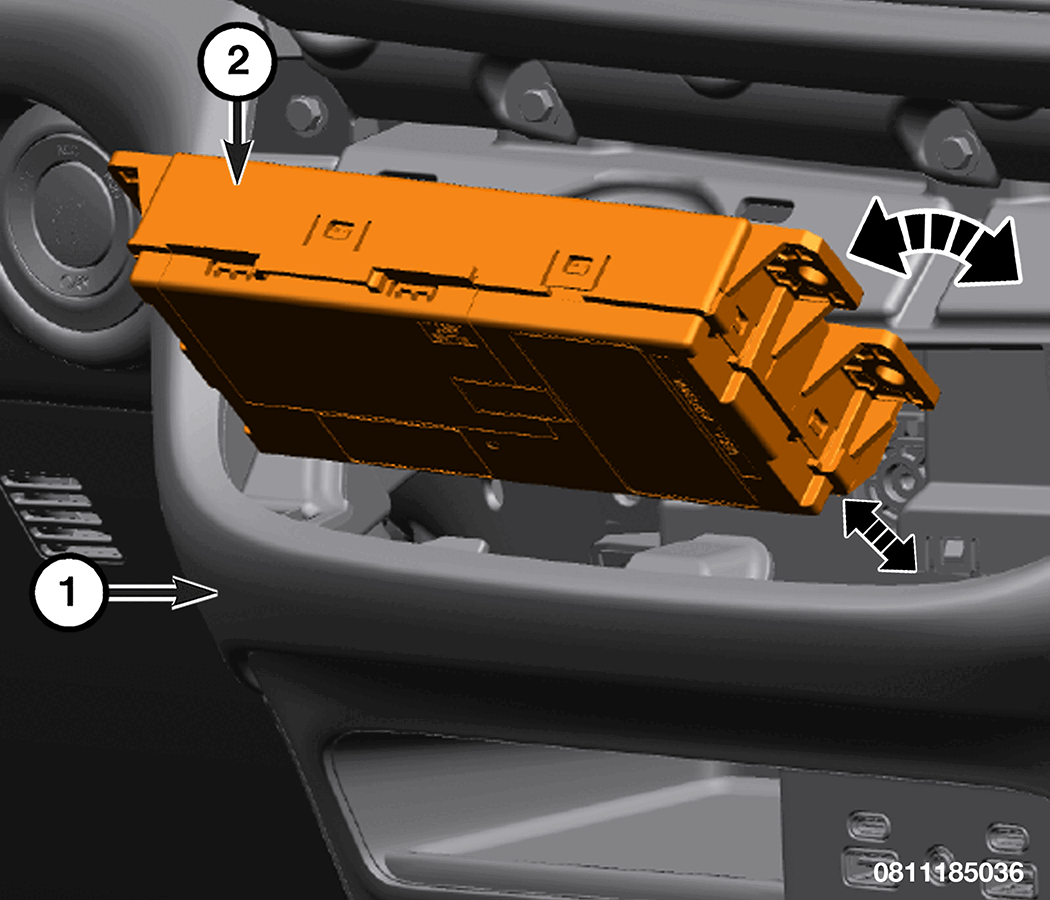

   Courtesy of CHRYSLER GROUP, LLC

   1 - Center Trim

   2 - TBM2

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Tighten the screws securely.
