Motor Switch

  1. Check operation of lift motor by connecting a jumper wire between switch connector terminals on left main switch. See Fig 1 , Fig 2 , Fig 3 and Fig 4 . If failure is in right side door, connect a jumper wire on right side switch connector. If failure is in left door, it is not necessary to disconnect or jump right side switch.

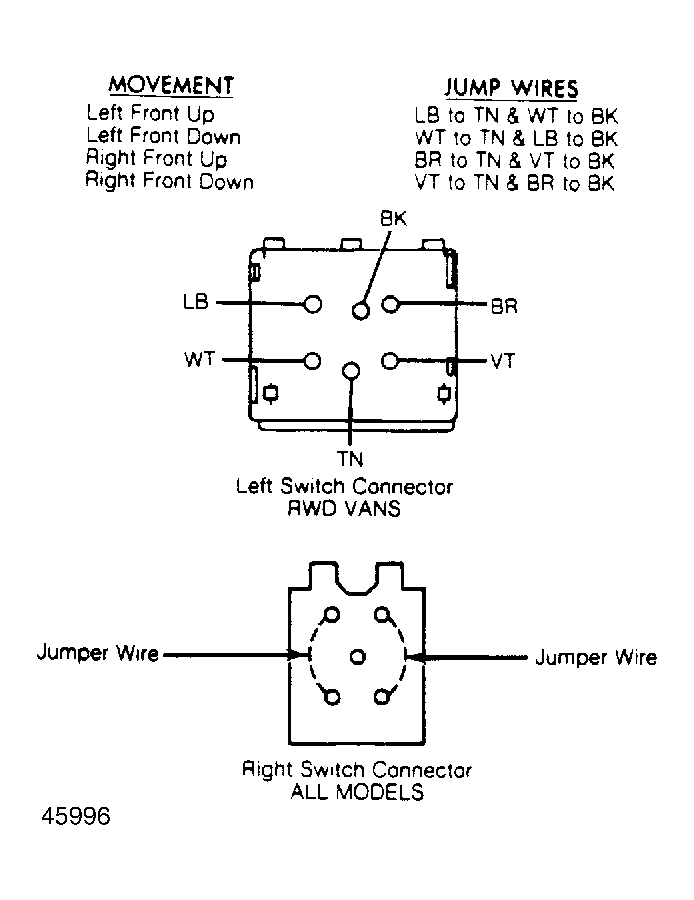

    Fig 1: Left Switch Connector (RWD Vans)
    G45996

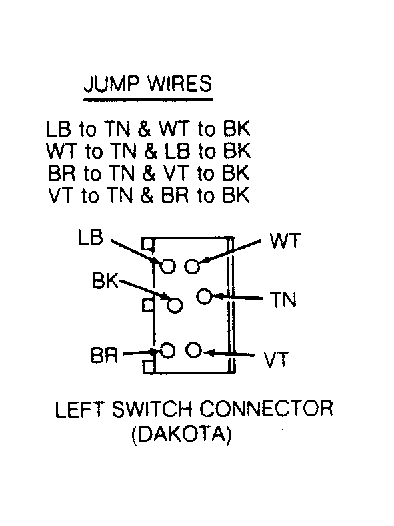

    Fig 2: Left Switch Connector (Dakota)
    G71112

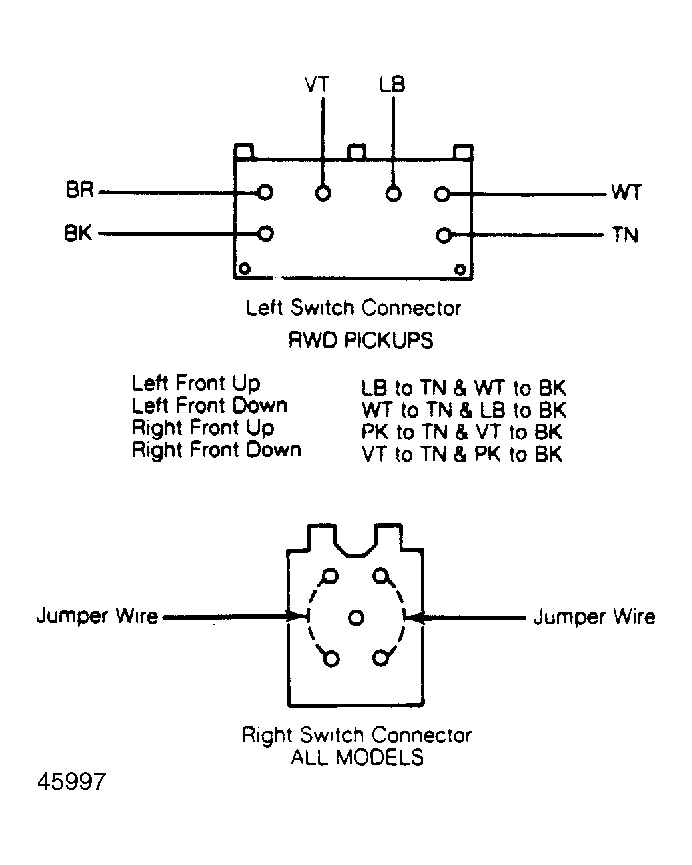

    Fig 3: Left Switch Connector (RWD Pickups)
    G45997

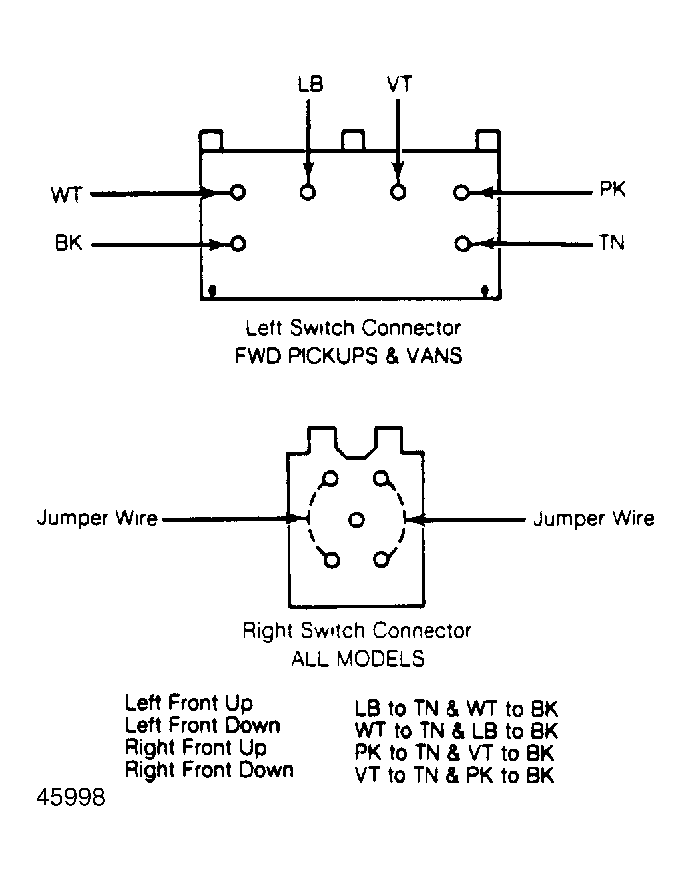

    Fig 4: Left Switch Connector (FWD Vans)
    G45998
  2. If motor operates using jumper wires, replace switch. If motor does not operate using jumper wires, perform LIFT MOTOR  test.
